3 Line 6 axle 150 ton semi low loader truck trailer transporter has a lower center of gravity, better stability and safety, and the ability to transport super-high cargo and pass overhead obstacles.
When loading mechanical equipment, 3 line 6 axle 150 ton semi low loader truck trailer moves the mechanical equipment from the front ladder and then fixes the mechanical equipment on the semi low loader truck trailer.

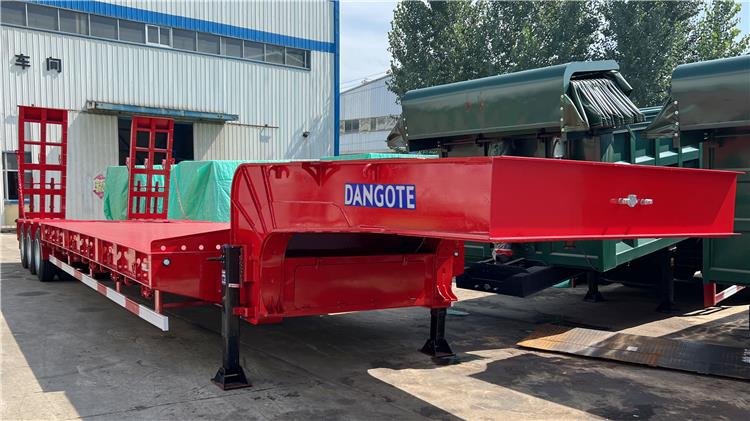

3 Line 6 Axle 150 Ton Semi Low Loader Truck Trailer for Sale In Nigeria Abuja
3 Line 6 Axle 150 Ton Semi Low Loader Truck Trailer for Sale In Nigeria Abuja
3 Line 6 Axle 150 Ton Semi Low Loader Truck Trailer for Sale In Nigeria Abuja
Overall dimension: 14900mm * 1930mm *3600mm
Loading capacity(T): 150T
Axle: 13T/16T, FUWA / BPW
Rim: 8.0-20
Tire: 11.00R20
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate
Ramp: Spring ramp
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
