When tri axle trailer for sale manufacturers frame, it bears the same strength. The frame made of high-strength steel uses less material. The upper wing plate, lower wing plate and vertical plate can be made thinner and lighter.
Tri axle trailer for sale using high-strength steel beams is best suited for the transportation of light-dumping goods with good road conditions and high-speed standard loads.

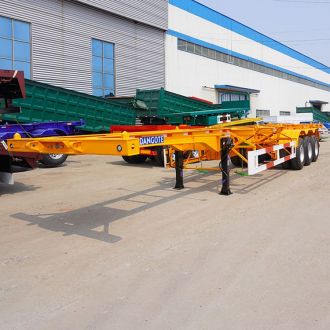

12m Tri Axle Trailer for Sale in Harare Zimbabwe - Dangote Trailer
12m Tri Axle Trailer for Sale in Harare Zimbabwe - Dangote Trailer
12m Tri Axle Trailer for Sale in Harare Zimbabwe - Dangote Trailer
12m Tri Axle Trailer for Sale in Harare Zimbabwe - Dangote Trailer
Model: Tri Axle Trailer for Sale
Dimension(mm): 12500x2500x1550mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T, FUWA/BPW
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Air suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (especially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material: Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (especially intended for oversea market)
ABS: Optional
Light: LED light (especially intended for the oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The toolbox contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
