Dangote 12m Tri Axle Flatbed Trailer for Sale In Nigeria
The Nigeria customer has received the 12m tri axle flatbed trailer and the customer is ready to put it into use.
In fact, the 12m tri axle flatbed trailer that the customer bought before was of very poor quality and was deceived by some unscrupulous merchants, so the customer was very cautious. Of course, choosing TITAN is your best choice. We have more than 10 years of experience in the 12m tri axle flatbed trailer industry. Customers cover more than 50 countries in Africa and South America.
Dangote 12m Tri Axle Flatbed Trailer for Sale In Nigeria

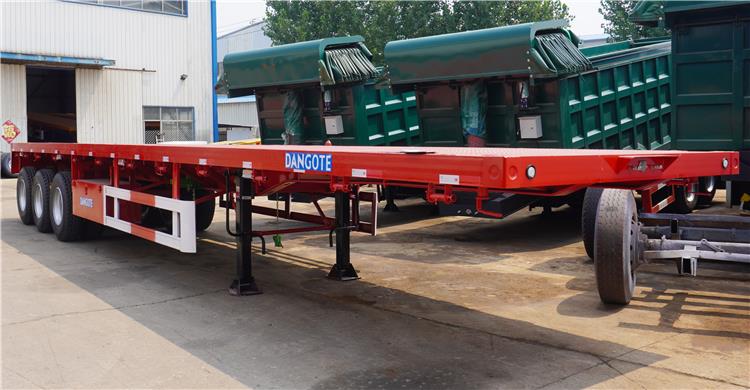

The dimension of this 12m tri axle flatbed trailer 12500*2500*1550mm. The loading capacity could be up to 60 tons for our standard specification. It is could be used for transporting 20&40ft containers or some other bulk cargo.
We also have the 2 axles, 3 axles, 4 axles, the model with the front board, and the color could be painted as your request; We also can customize it according to your request.

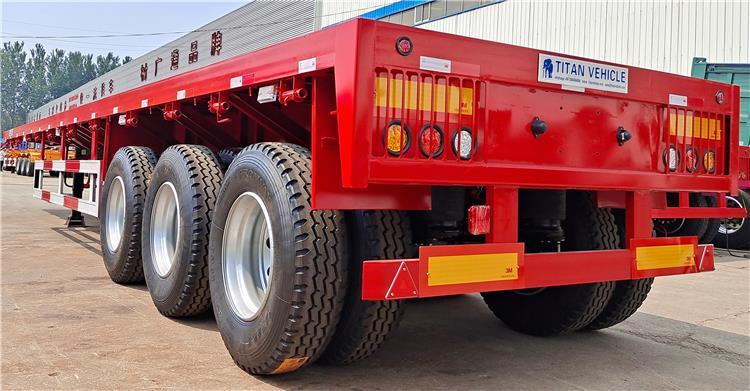

We use the reinforced suspension on our 12m tri axle flatbed trailer, 70mm center balance pin. In the front and rear of the suspension, the left and right are reinforced. We have a separate focus on road conditions in Africa, addressing dirt and poor road conditions.
TITAN adopts the Low carbon high-strength alloy steel Q345 to make the main beam, it has a higher carry capacity and service life of more than 10 years. We use an automatic submerged arc welding process to weld the main beam. There is no interface between the upper, middle and lower plates of the beam, so it can ensure the integrity of the main beam and make the beam more solid and durable.
Dangote 12m Tri Axle Flatbed Trailer for Sale In Nigeria

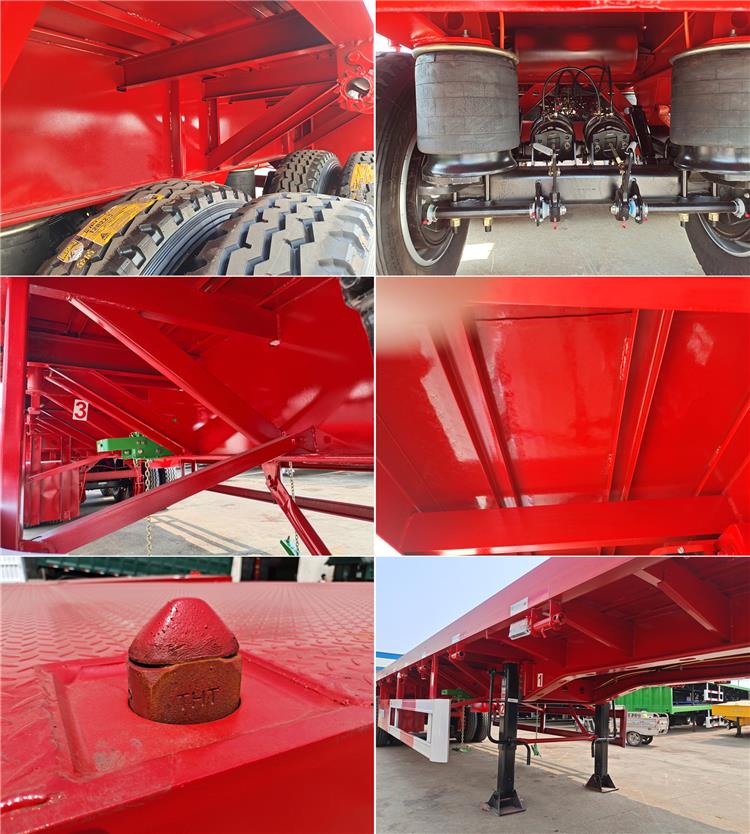

The dimension of the main beam is the upper plate 14mm thick and 140mm wide, the lower plate 16mm thick and 140mm wide, the middle plate height is 500mm high and the thickness is 8mm;
The thickness of the side beam we made is 160mm, 100mm channel for through beam, and all of the through-beam is supported by the Inclined support frame, and the distance of this frame no more than 500mm, which can ensure the tri axle trailer not easy to deform,
TITAN uses 6 carlings to produce the frame of the tri axle flatbed trailer, which not only makes the trailer's frame stronger but also makes the platform never sag.
TITAN reinforces the main beam. As for the gooseneck parts of the main beam, the middle plate has been reinforced by a double plate, which makes the main has small deformation even if loading heavy things.

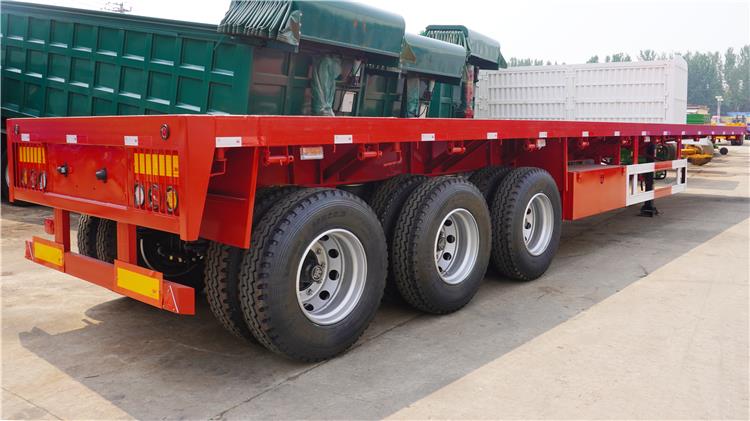

Dangote 12m Tri Axle Flatbed Trailer for Sale In Nigeria
