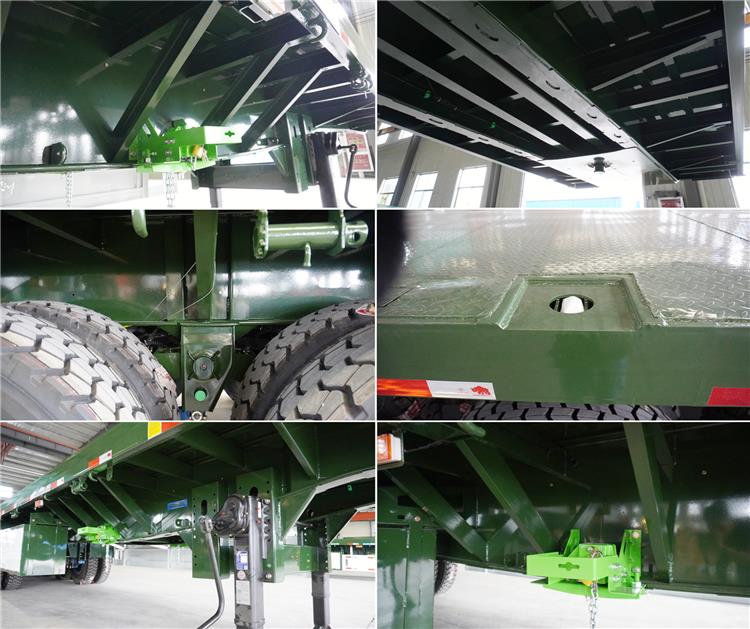

The web height of 4 axle 48 ft 53 ft flatbed trailer is from 400mm to 550mm manganese plate welding. The longitudinal beam is welded by automatic submerged welding. The frame is shot peened.
The double suspension type rotary bracket can be used to adjust the balance and stability of the heavy duty 4 axle 48 ft 53 ft flatbed trailer

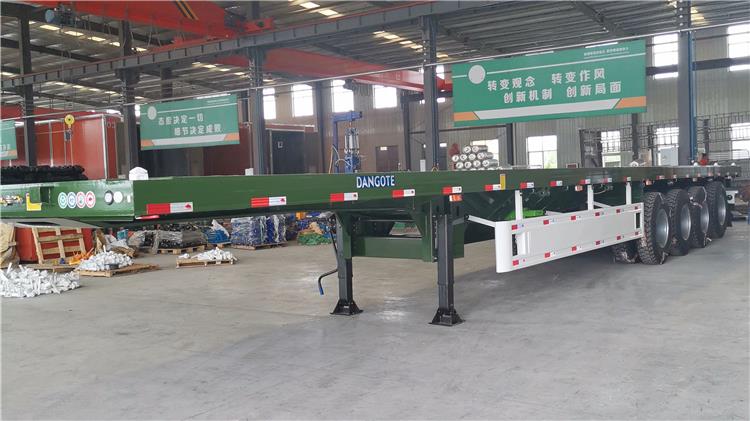

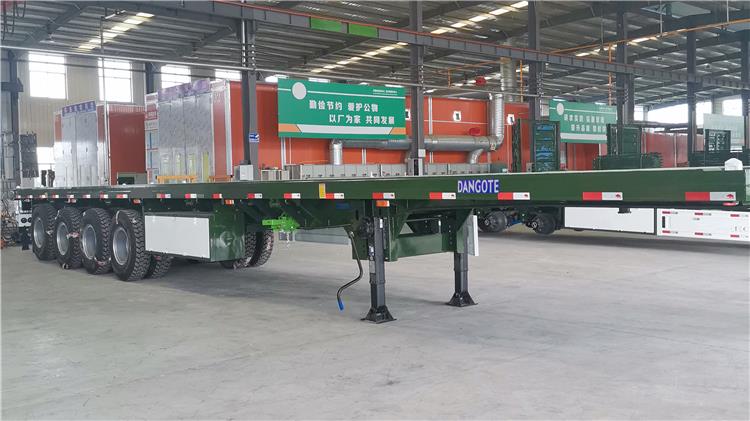

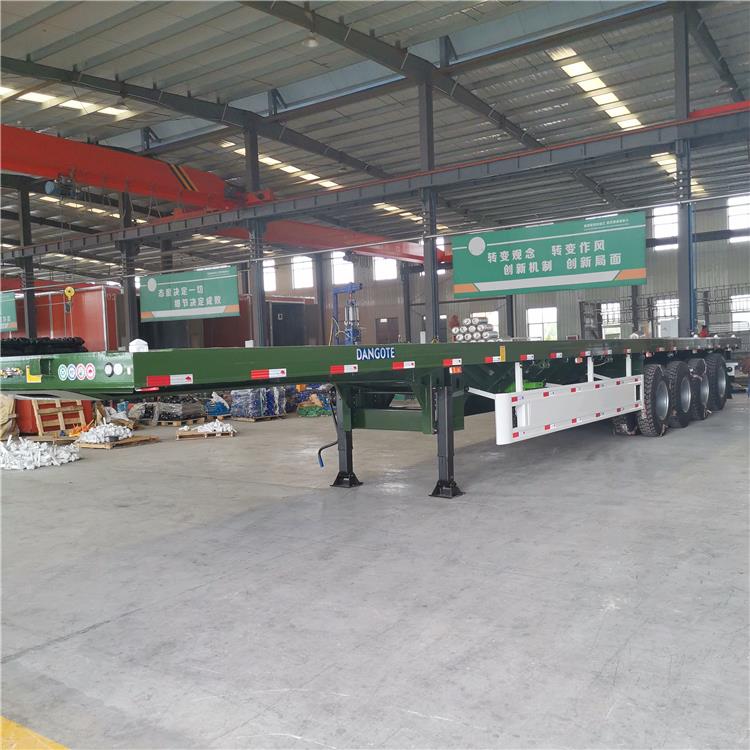

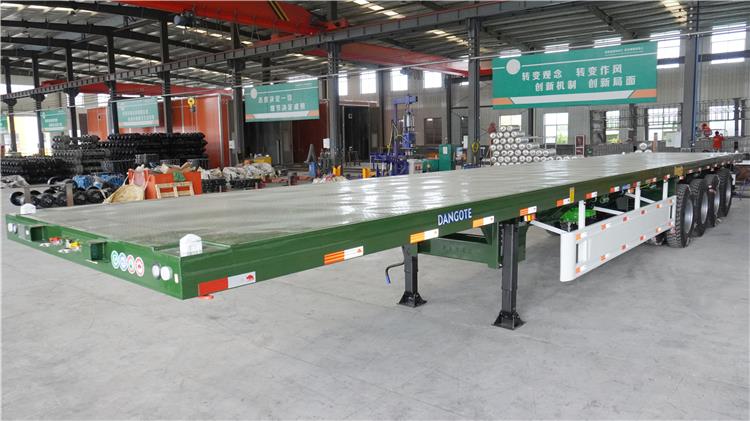

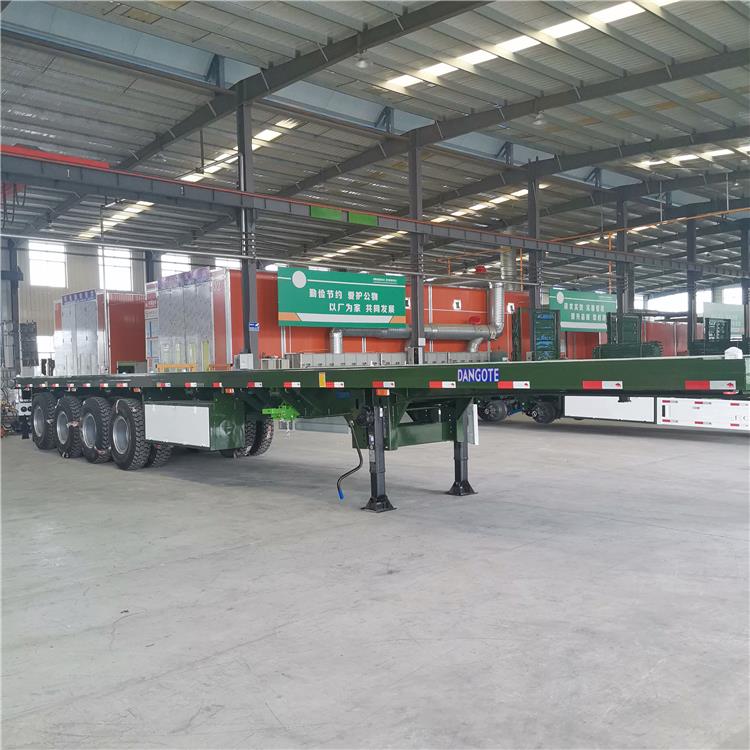

Dangote Trailer | 4 Axle 48 ft 53 ft Flatbed Trailer for Sale in Nigeria
Dangote Trailer | 4 Axle 48 ft 53 ft Flatbed Trailer for Sale in Nigeria
Dangote Trailer | 4 Axle 48 ft 53 ft Flatbed Trailer for Sale in Nigeria
Dangote Trailer | 4 Axle 48 ft 53 ft Flatbed Trailer for Sale in Nigeria
Dimension(mm): 13900x2500x1587mm
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Transport: 20ft, 40ft, 45ft, 48ft container
Loading capacity(ton): ≤60T
Axles: 4 axles, 13T/16T ,FUWA/ BPW
Tire: 16 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
