The 120 ton lowboy gooseneck trailer loading ramps are made of high-strength steel, with high loading capacity, which will not happen to deformation when carrying heavy equipment. The suspension ensures it has a high loading capacity, and increases its capacity for twisting forces, shock, and bumps.

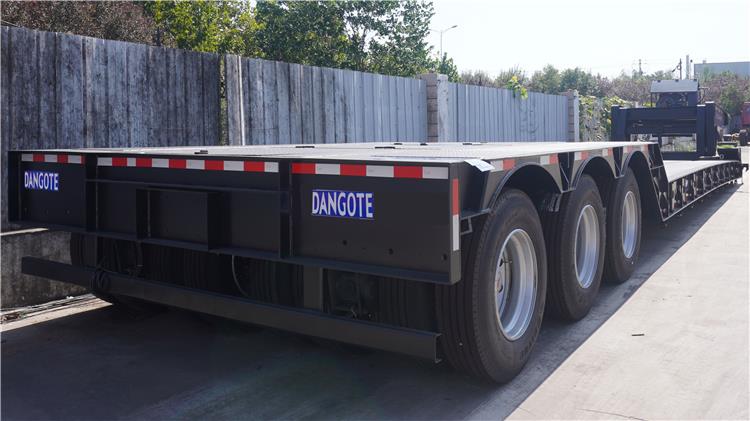

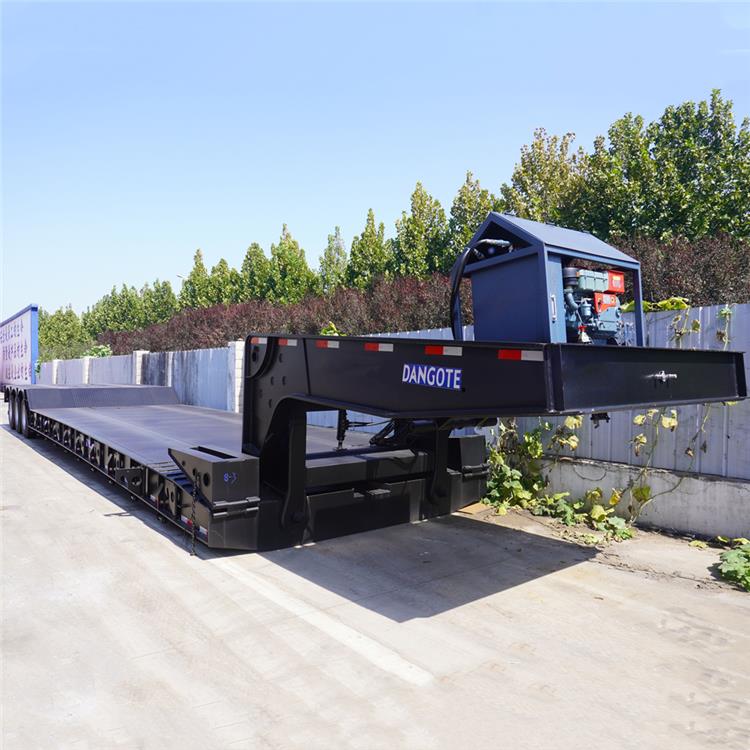

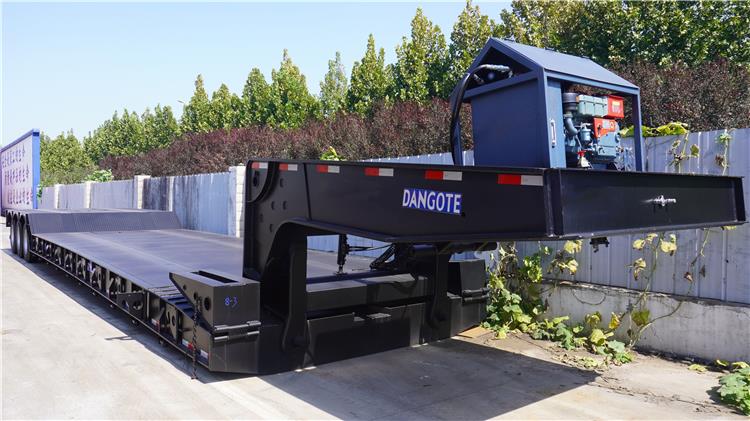

Dangote 120 Ton Lowboy Gooseneck Trailer for Sale | Hydraulic Low Bed Trailer
Dangote 120 Ton Lowboy Gooseneck Trailer for Sale | Hydraulic Low Bed Trailer
Dangote 120 Ton Lowboy Gooseneck Trailer for Sale | Hydraulic Low Bed Trailer
Dimension: 16250mm x 3400mm x 2500mm
Loading capacity(T): 120T
Axle: 3 lines 6 axles, 13T/16T, FUWA / BPW
Tire: 24 units, 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate

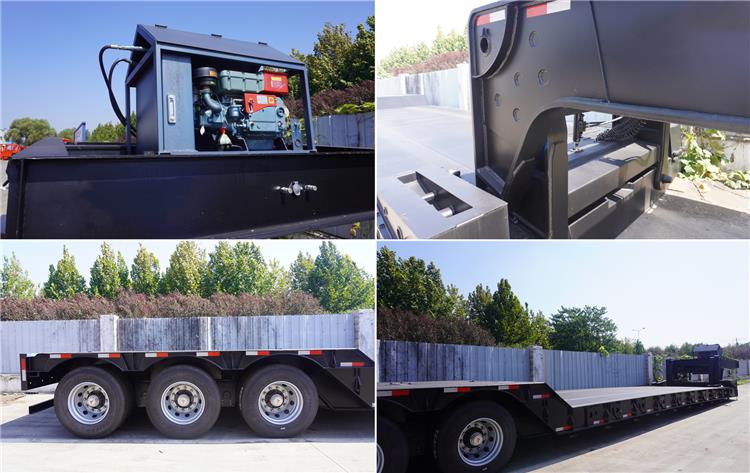

Hydraulic cylinder: 12KW diesel engine with hydraulic station
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust
Shipping terms: Transported by the bulk carrier in an RORO or 40HQ container
