13m tri axle flatbed trailer manufacturers frame, it bears the same strength. The frame made of high-strength steel uses less material. The upper wing plate, lower wing plate and vertical plate can be made thinner and lighter.
This tri axle trailer adds two beam at the middle of the main beam, which makes the flatbed trailer has more loading capacity and longer service life.
The gooseneck part of main beam is reinforced with a double plate, which makes the 13m tri axle trailer not easy to be deformed when heavy load and better to use.

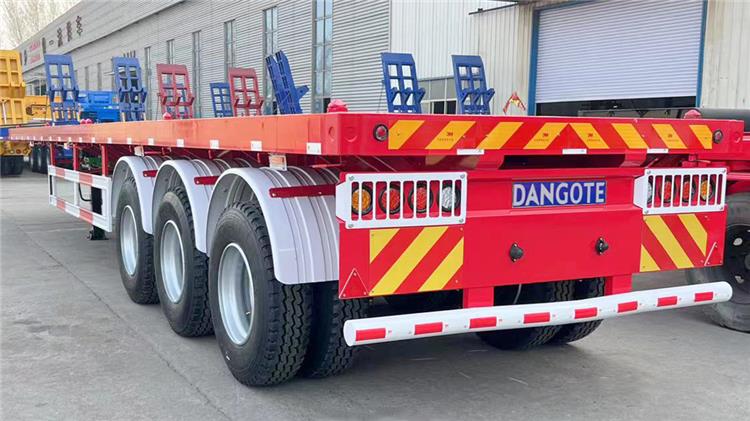

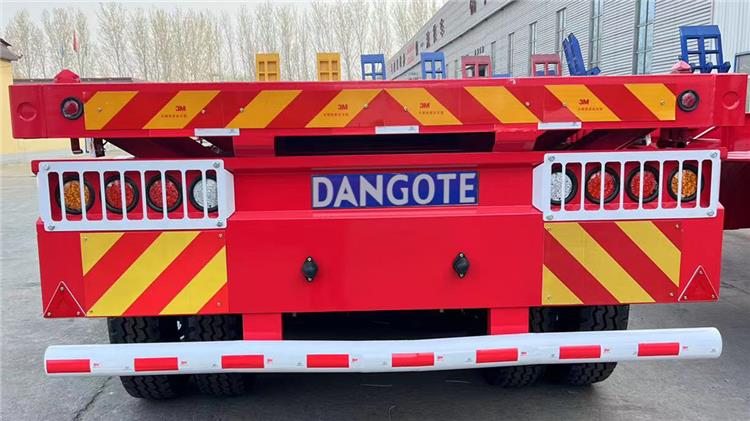

2023 latest rear style, can be customized.
All the flatbed semi trailer through beam are supported by the inclined support frame, and the distance of this frame no more than 500 mm.

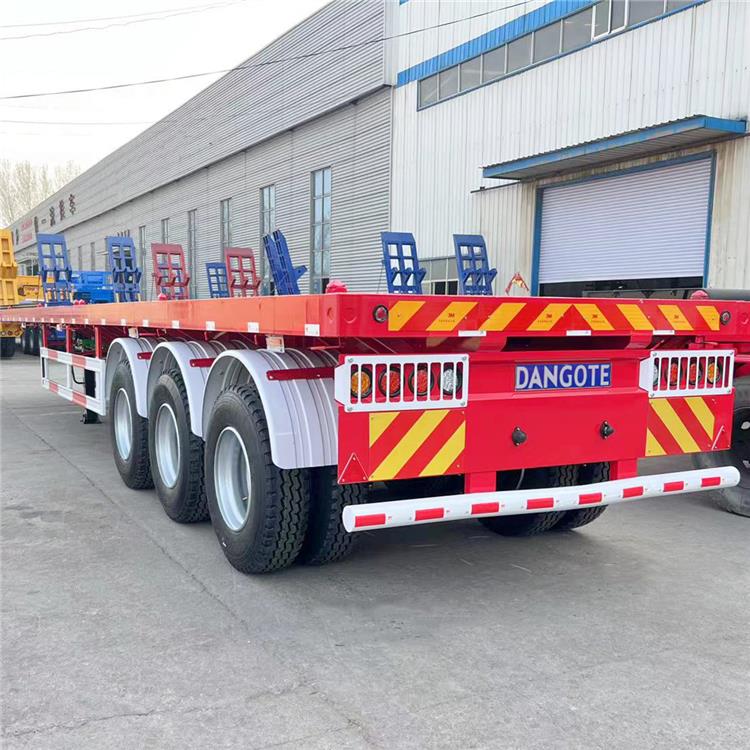

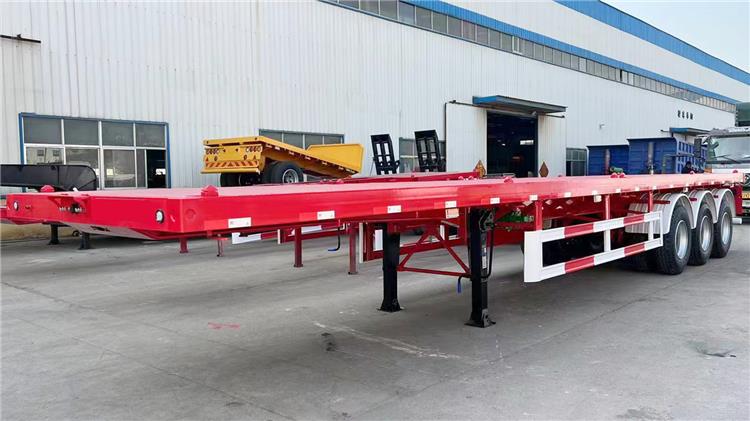

Model: Tri Axle Flatbed Trailer for Sale
Dimension(mm): 12500x2500x1550mm
Application: Transport 20/40ft Container

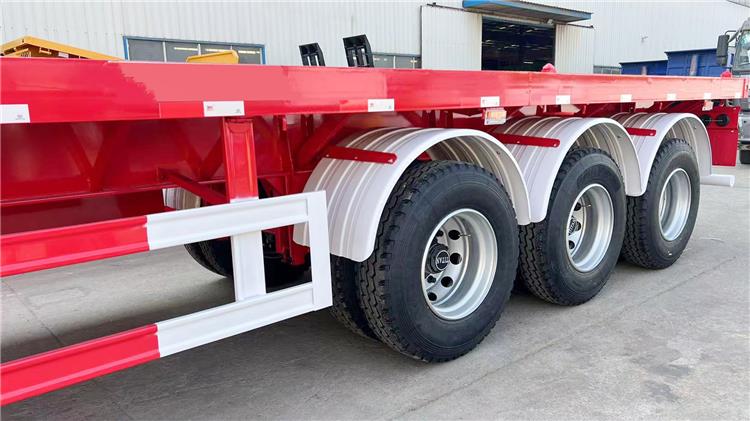

Axles: 3 axles, 13T/16T, FUWA/BPW
Tire: 12 units, 12.00R22.5 or 315/80R22.5

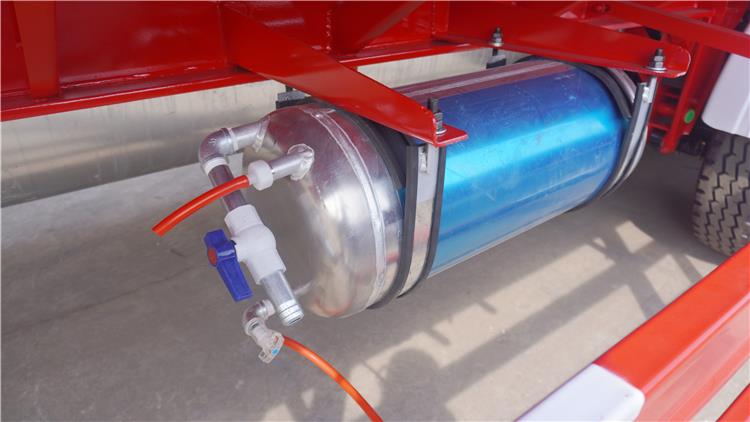

Suspension: Air suspension
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material: Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
