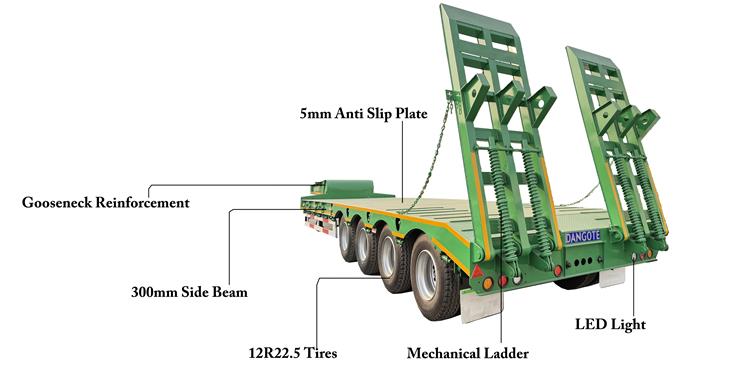

100 ton low bed trailer price in Abuja, Nigeria has a reinforced gooseneck below and double-layer beam vertical plate
Dangote trailer in Abuja, Nigeria uses powder baking paint, which will not fall off after more than 5 years of use. The cost is twice that of ordinary acid paint.
Powder baking paint, the cost is twice the ordinary acid paint, will not fang out in more than 5 years.
100 ton low bed trailer price in Abuja, Nigeria uses the excellent braking system of the Wibco brand. The brake air pipe uses a high-pressure rubber air pipe with a service life of more than 10 years. The wire uses a cable with a service life of more than 5 years.

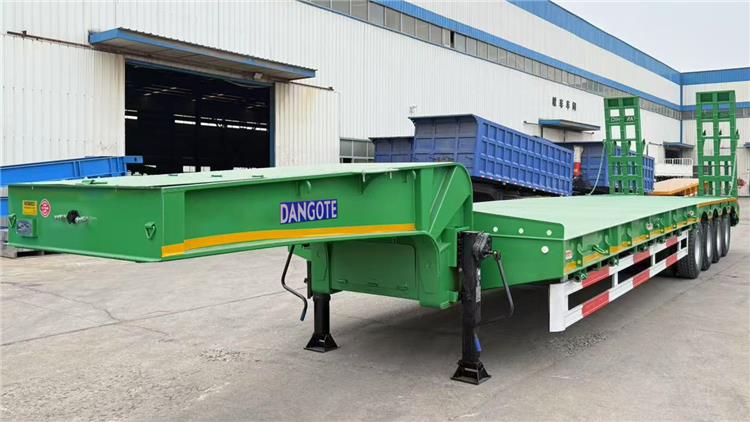

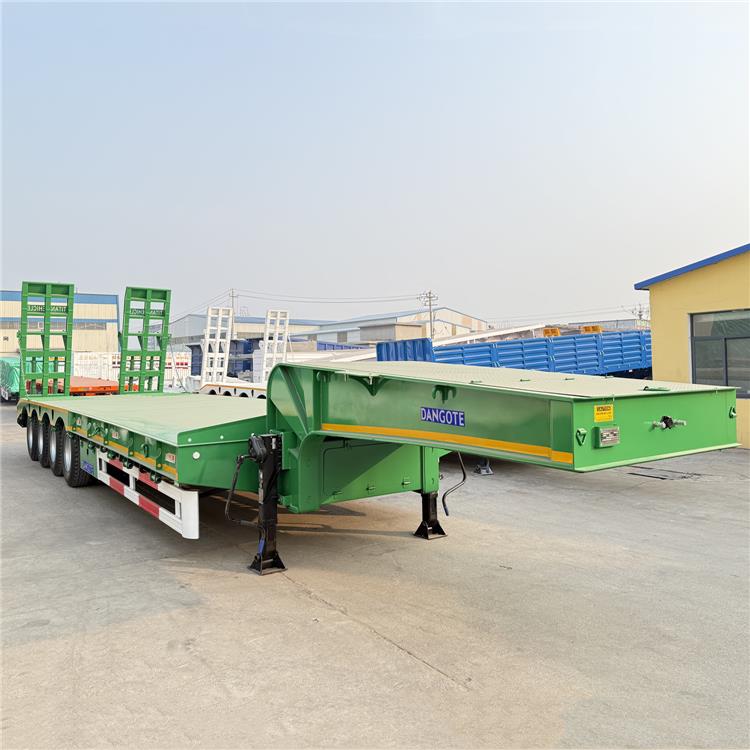

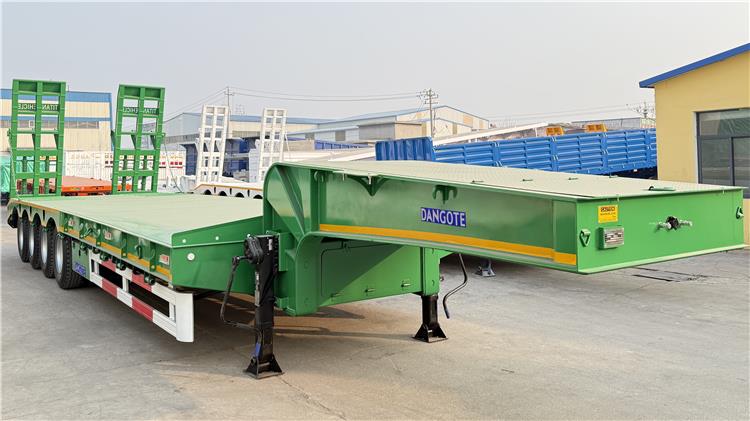

Dangote 4 Axle 100 Ton Low Bed Trailer Price for Sale In Abuja, Nigeria
Dangote 4 Axle 100 Ton Low Bed Trailer Price for Sale In Abuja, Nigeria
Dangote 4 Axle 100 Ton Low Bed Trailer Price for Sale In Abuja, Nigeria
Dangote 4 Axle 100 Ton Low Bed Trailer Price for Sale In Abuja, Nigeria
Dangote 4 Axle 100 Ton Low Bed Trailer Price for Sale In Abuja, Nigeria
Overall dimension: 18500mm * 3000mm *3400mm
Loading capacity(T): 100 Ton
Axle: 4 axle
Tire: 16units, 12R22.5
Suspension: Mechanical suspension
Ramp: Spring ramp
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Gooseneck: Optional

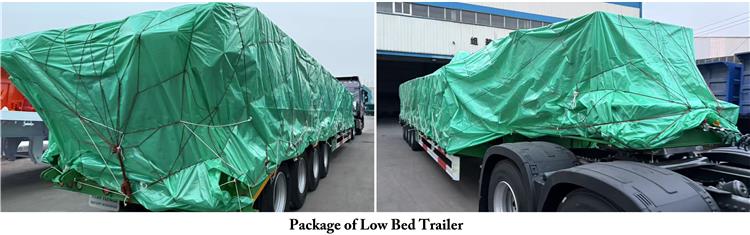

With more than ten years of experience in packaging and shipping, the whole vehicle will be waxed and covered with rainproof cloth before shipment. Even if it is transported on the ship for 1-2 months, it will not rust.
100 ton low bed trailer price in Abuja, Nigeria uses Q460C (also called HG60) high-strength structural steel for the beam, with a yield strength of ≥620Mpa, and its load-bearing capacity is 5 times that of trailers made of Q345 steel.
The side beam of dangote trailer in Abuja, Nigeria adopts an "H"-shaped design, welded with T700 high-strength steel (other factories use channel steel), which perfectly matches the beam. It is 300mm high, 140mm wide, and 8mm thick. The load-bearing capacity is twice that of other steels, and it will not deform after 10 years of use, and its anti-bumping ability is increased by 3 times.
Our cross beam of 100 ton low bed trailer price in Abuja, Nigeria is made of HG60 high-strength steel. The thickness is 6mm. Due to the unique design, the beam has no hollowing design, which greatly improves the service life and load-bearing capacity.
The diagonal support design of dangote trailer in Abuja, Nigeria uses HG60 high-strength steel. The thickness is 6mm, which effectively connects the beam and the side beam into a whole. The overall life of the frame is more than 10 years.
The diagonal support of 100 ton low bed trailer price in Abuja, Nigeria adopts a welded I-beam structure (beam structure), which has better support performance. The bottom plate of dangote trailer in Abuja, Nigeria is a 5mm patterned plate, which is thicker than the 4mm bottom plate used by other factories.

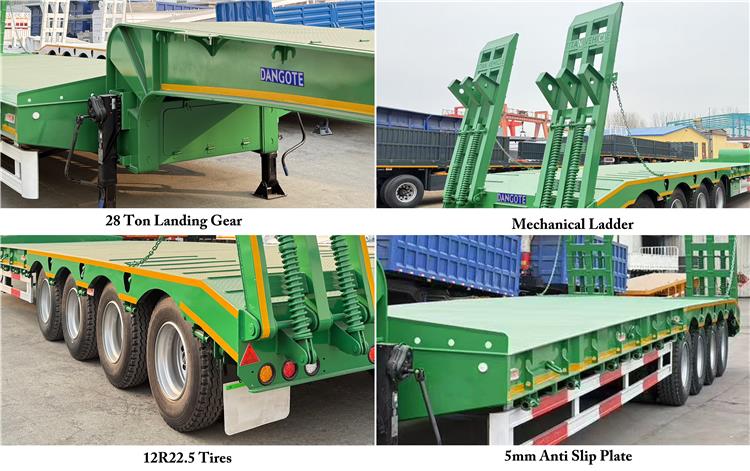

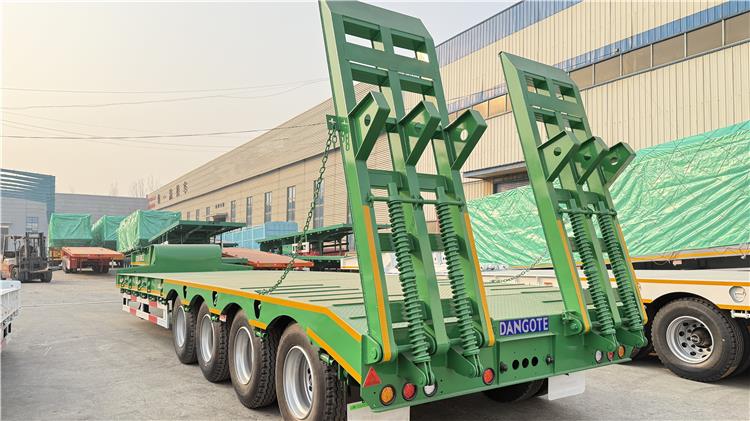

The ladder of 100 ton low bed trailer price in Abuja, Nigeria is welded with HG60 high-strength steel, which effectively ensures that heavy equipment can pass through without deformation. All four-in-one high-strength ladders are used. The mechanical ladder (also called high-elasticity double-spring ladder) is used, which can be easily lifted by ordinary people with one hand, making it more convenient to operate.
The gooseneck of the dangote trailer in Abuja, Nigeria adopts a downward-pressed forehead (lower in front and higher in the back) to prevent the head from tilting under heavy load and facilitate the front of the vehicle to climb the slope
