The sub-frame and semi-suspended walking structure of the pneumatic tanker trailer are made of high-strength steel and welded by special welding equipment.
60 Ton pneumatic tanker trailer adopts a three-dimensional computer-aided design, with large effective volume and low transportation cost.
The pneumatic tanker trailer adopts well-known OEM accessories at home and abroad, which is durable and reduces user maintenance costs

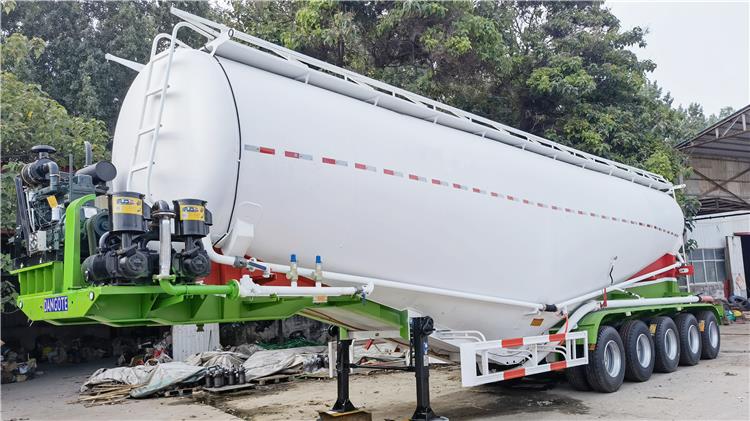

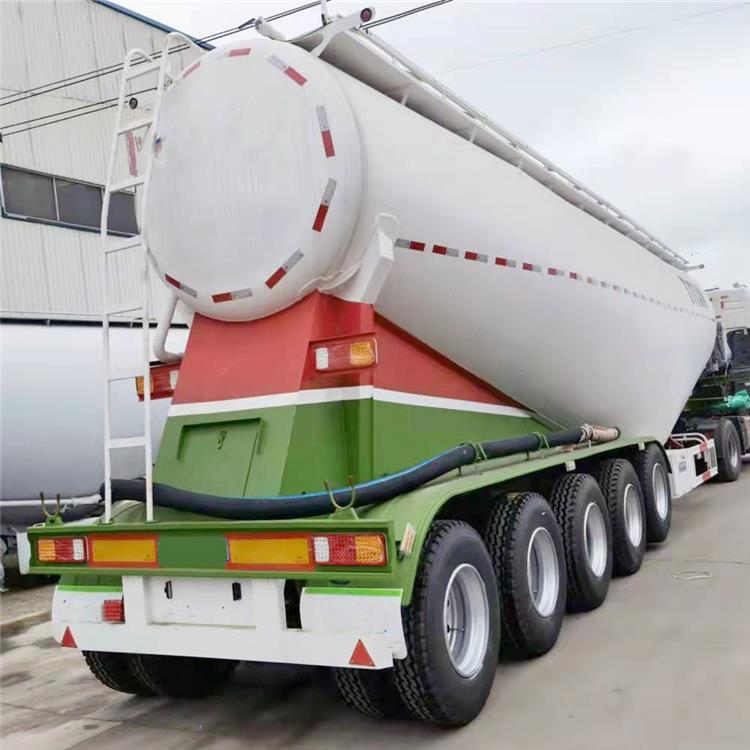

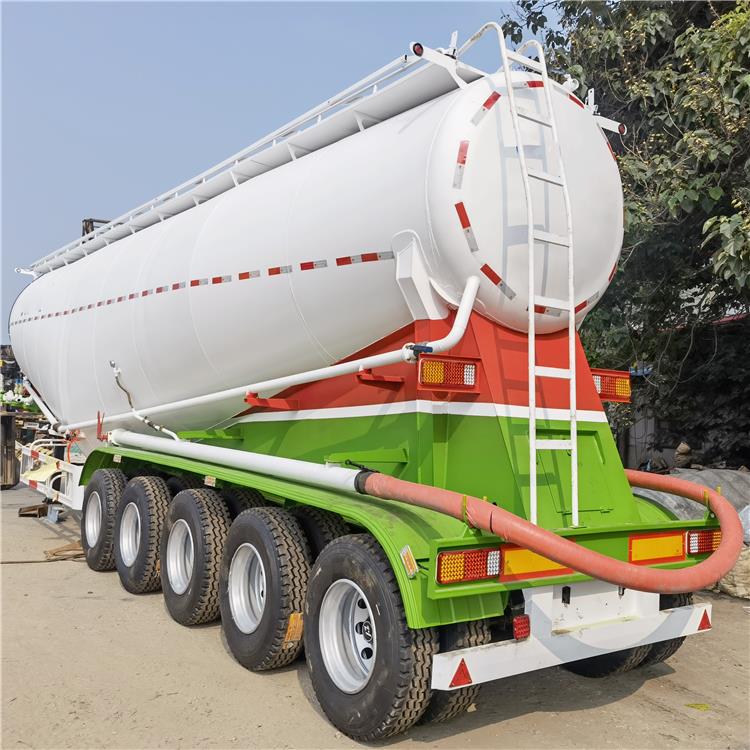

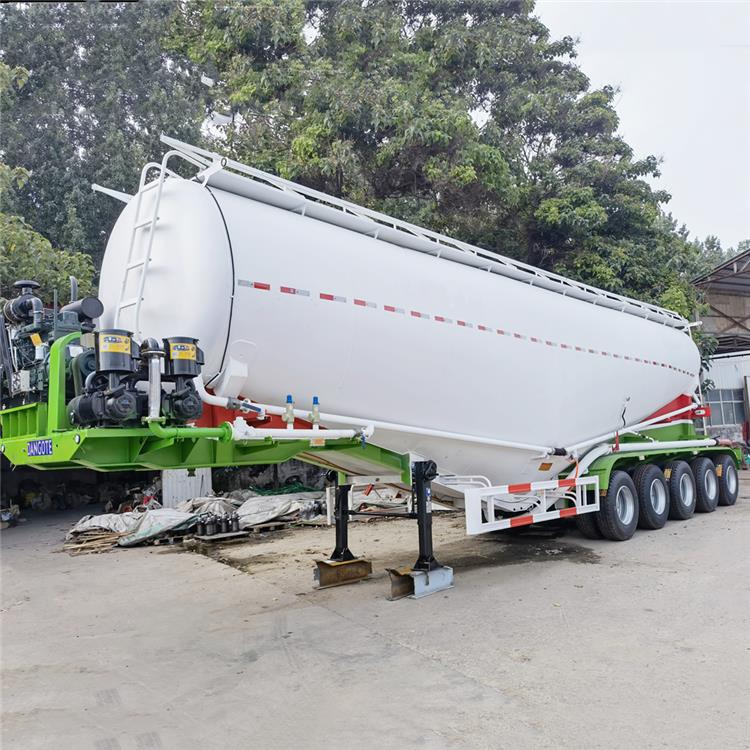

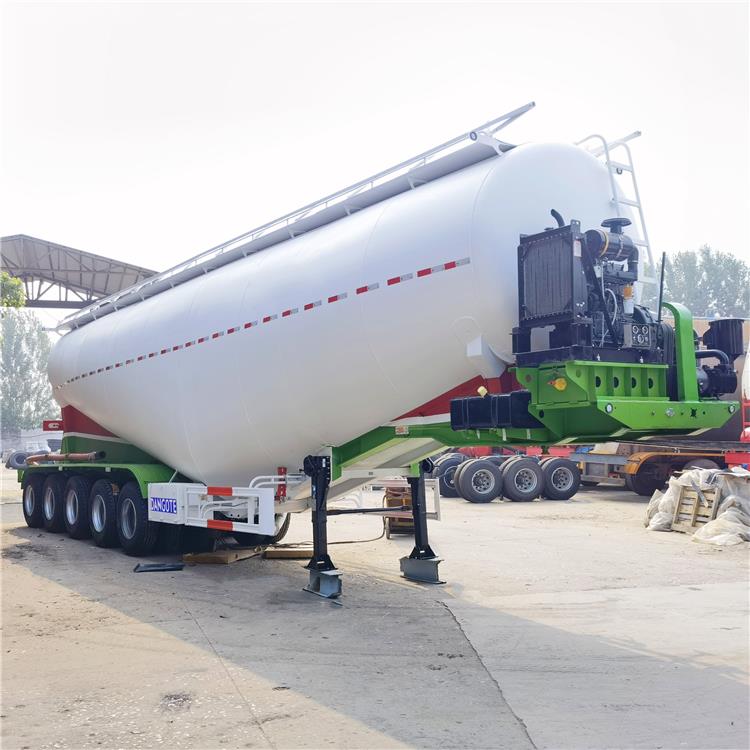

Dangote 5 Axle 60 Ton Pneumatic Tanker Trailer for Sale in Philippines
Dangote 5 Axle 60 Ton Pneumatic Tanker Trailer for Sale in Philippines
Dimension: 14100mm * 2000mm *4150mm (the exact size depends on the final design.)
Tanker body material: 5mm high strength wear-resistance steel
Payload : 60 Ton
Axles：5 axles
Tire：20 units
Spare tire rack: 2 units
Leaf spring: 10 pieces
Sprinkler: one sprinkler; car waxing
Diesel Engine: WEICHAI Brand
Compressor: BOHAI
Suspension: Heavy-duty mechanical suspension
Landing gear: JOST
Application: transport lime, cement, powder etc.
Tank body thickness: 3.5mm
Compressor: 12m³ double cylinder air compressor
Brake system: WABCO
Light: LED light (especially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service life, and avoid the vehicle getting rust
