The 40 ft flatbed tractor trailer special beam structure can better disperse the gravity of the cargo and reduce the damage to the frame and floor of the cargo.
In order to be more suitable for transportation under heavy load and in complicated environments, a large-diameter balance arm shaft pin is adopted, which is impact-resistant and heavy-load resistant.

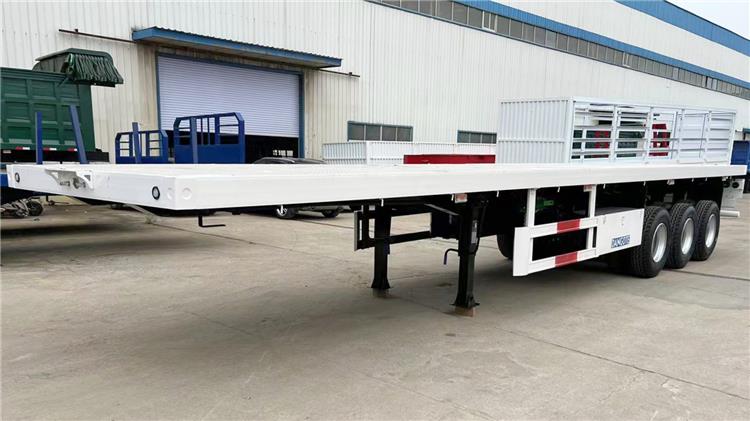

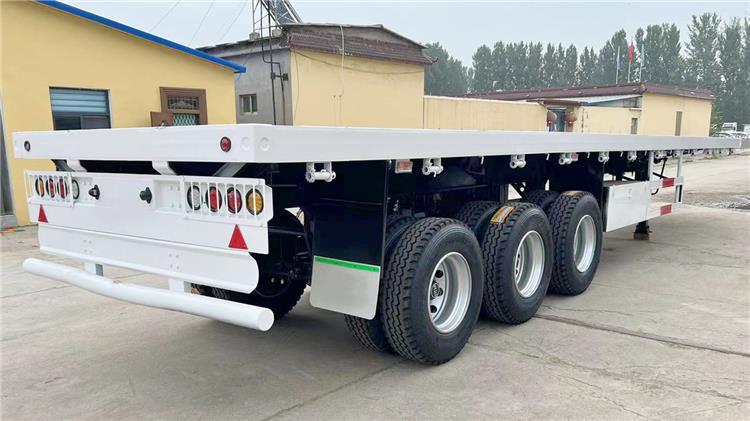

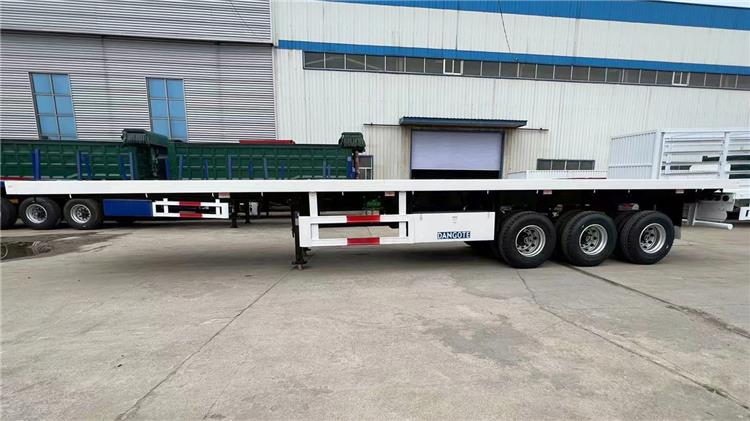

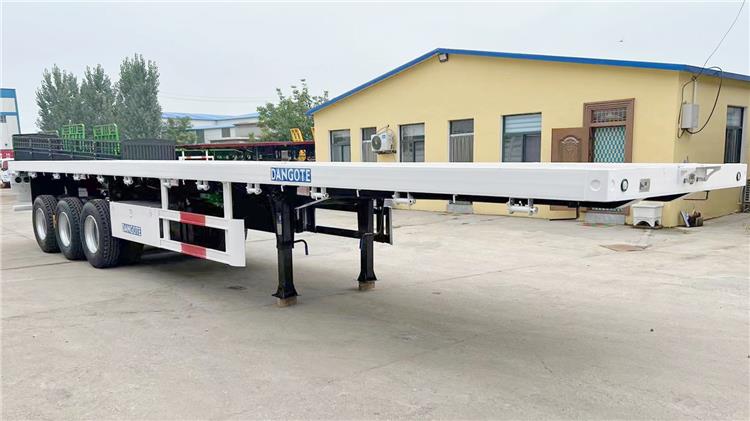

Dangote New Semi 40 ft Flatbed Tractor Trailer Price for Sale Near Me
Dangote New Semi 40 ft Flatbed Tractor Trailer Price for Sale Near Me
Dangote New Semi 40 ft Flatbed Tractor Trailer Price for Sale Near Me
Dangote New Semi 40 ft Flatbed Tractor Trailer Price for Sale Near Me

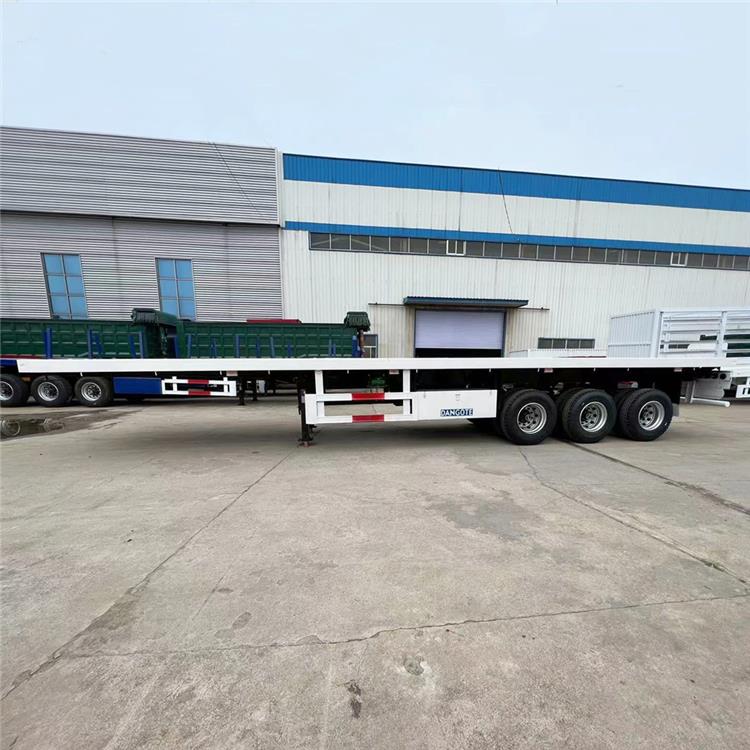

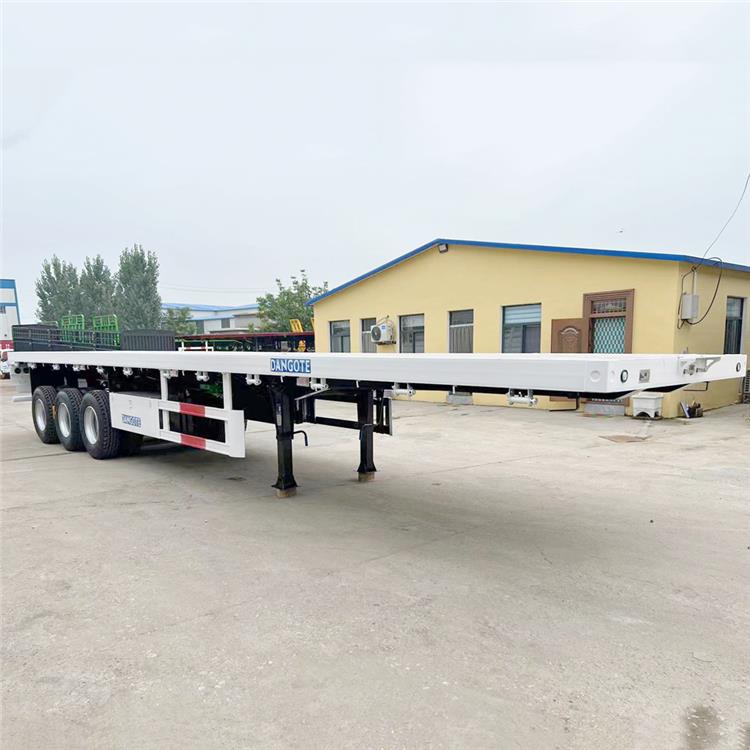

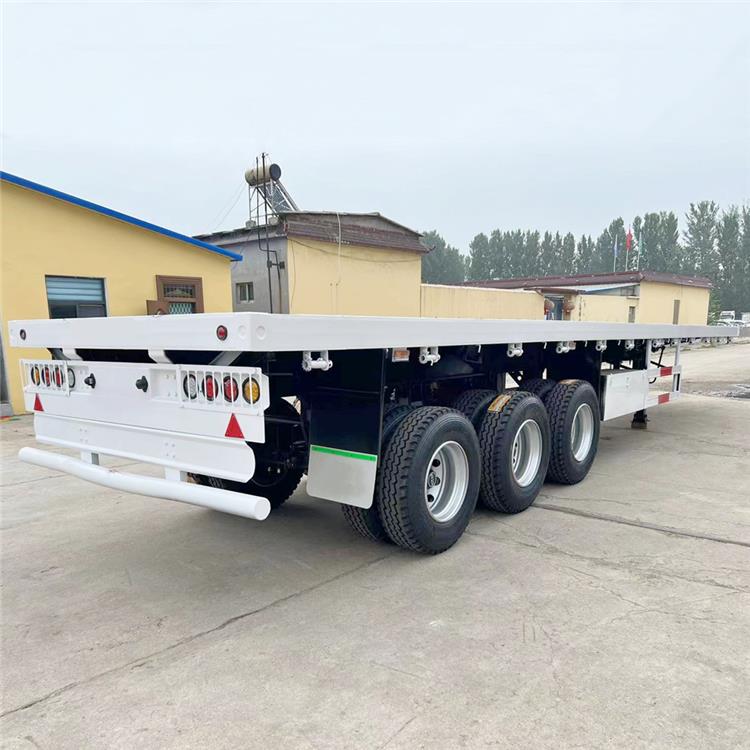

Model: 40 ft Flatbed Tractor Trailer
Dimension(mm): 12500x2500x1550mm
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,FUWA/ BPW
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand)
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
ABS: Optional for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
