This Dangote howo a7 371 tractor truck Trailer cab assembly brings together various advanced technologies to comprehensively improve the quality of the whole vehicle, optimize the power system, further strengthen the chassis system, and create an international popular appearance.
Dangote howo a7 371 tractor truck adopts three super efficient braking system. Dual-circuit compressed air excitation is used as a service brake.
The auxiliary brake on the engine serves as the exhaust brake, while the compressed air and spring-energy star brake system on the rear wheels and front axle serves as the parking brake.

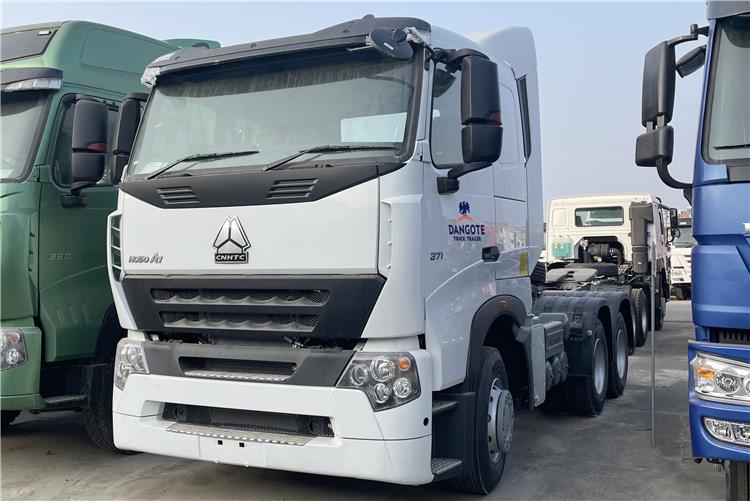

Dangote Sino Howo A7 371 Tractor Truck for Sale - Cnhtc Howo
Dangote Sino Howo A7 371 Tractor Truck for Sale - Cnhtc Howo
Dangote Sino Howo A7 371 Tractor Truck for Sale - Cnhtc Howo
Engine:
Engine model: WD615.47, Euro II emission standard, 4 stroke injection diesel engine, 6 cylinders in-line with water cooling, turbo-charging & inter cooling, mechanical high-pressure oil pump system
Maximum output: 371PS (273kW) at 2000 rpm
Maximum torque: 1560Nm at 1200-1500rpm
Bore: 126mm
Stroke: 130mm
Displacement: 9.726L
Clutch: SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance
Transmission: model HW19710, 10 forward and 2 reverse
Ratio: 4.42 4.8 5.73
Front Axle: New HF9 series, with drum brake system
Rear Axle: HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system.
Steering: ZF8118, hydraulic steering with power assistance
Ratio: 22.2-26.2:1
Wheels&Tyres:
Rims: 8.5-20,10 hole-steel
Types: 12.00R20 Option:12R22.4,12.00-24,12.00-20,13R22.5, 315/80R22.5, 295/80R22.5, 11.00R20
Driver'sCab: A7-P Cabin, Long cab, all steel forward control, 55°hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds,VDO electrical control system, laminate windscreen, with casted-in radio aerial, adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, safety belt, air conditioner
Performance:
Maximum driving speed(km/h):102(reference data)
Maximum gradeability (%):33
Minimum ground clearance(mm):265
Minimum turning radius (m):18.5
Fuel consumption(L/100km):40(reference data)
Dimensions inmm:
Wheel base (mm): 3200+1350
Front wheel track (mm): 2022/2041
Rear wheel track (mm):1830/1830
Overhang(front/rear) (mm):1500/725
Approach angle(°):16
Departure angle(°):70
Overall Dimension (mm): 6800x2496x3230
Weight in kg:
Rated loading capacity at fifth wheel (kg):15660
Dead weight (kg):9210
Gross vehicle weight (kg):25000
Gross combination weight(kg):7000
Front axle loading capacity (kg):9000
Rear axle loading capacity (kg):2*16000
