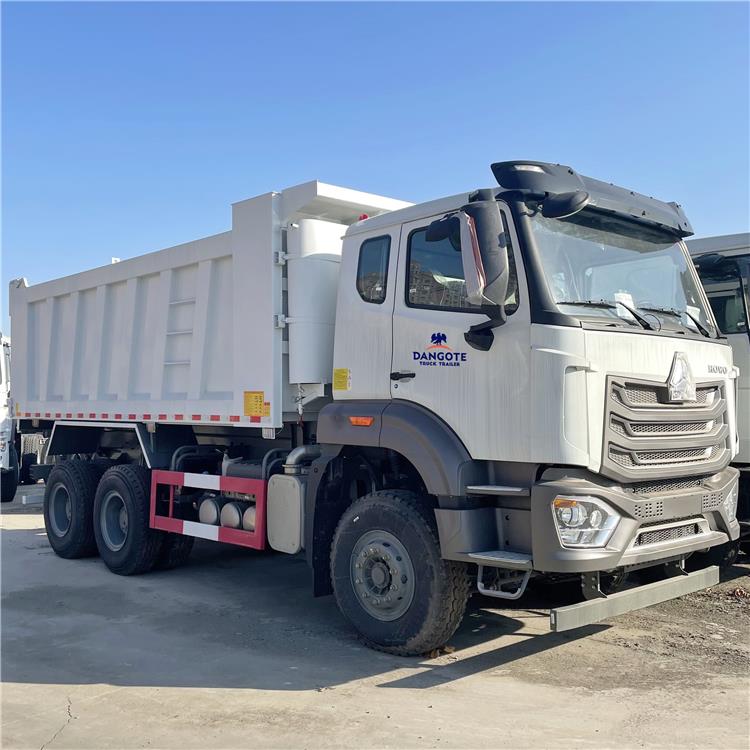

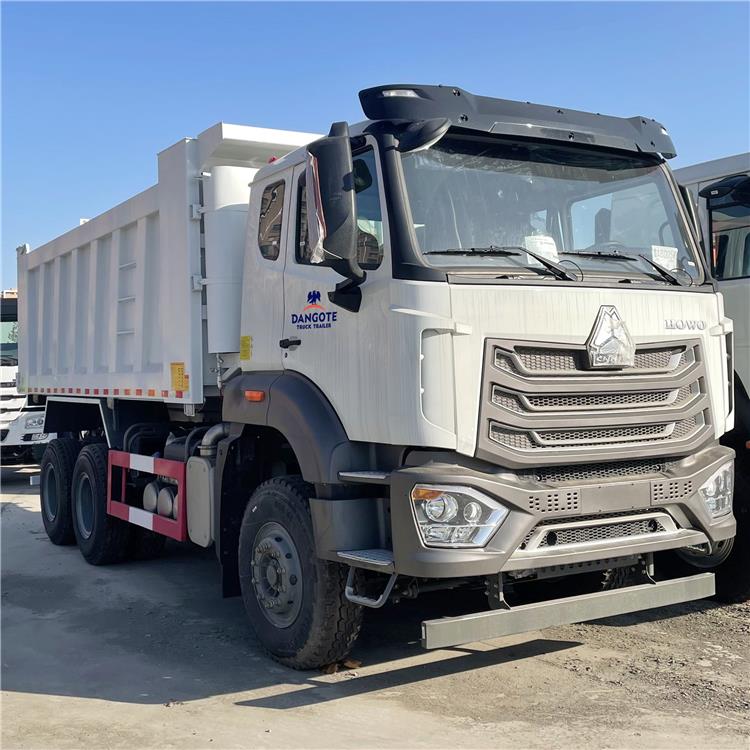

Dangote hohan tipper truck Trailer is a U-shaped wrap-around bumper under the bumper. This configuration is only 400mm above the ground, which further improves the safety of the Dangote Hohan tipper truck in urban and construction site road conditions.The frame is optimized, which can well distribute the stress to all parts of the main frame, effectively protecting the safety of the truck.
Dangote Hohan tipper truck equipped with a new and practical one-piece reflector and stepped air intake grille, the one-piece headlights that follow the mature design can escort safe driving on the road at night, and the built-in fog lights below it are also very practical.

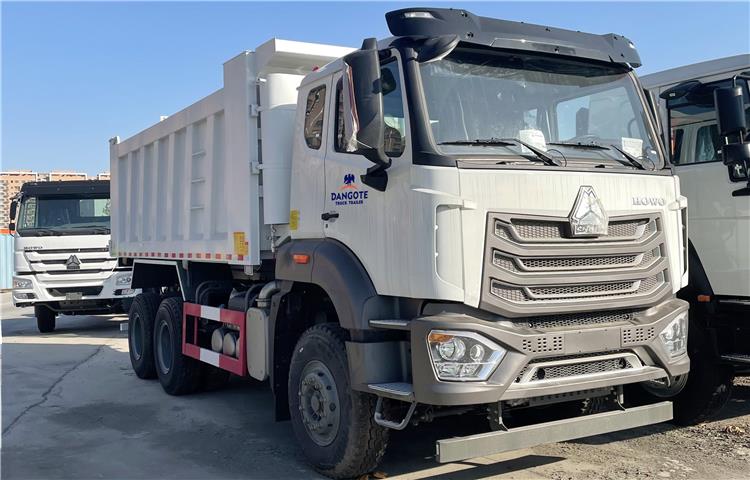

Price of Sinotruk Hohan Howo Dangote Tipper Truck for Sale In Lagos

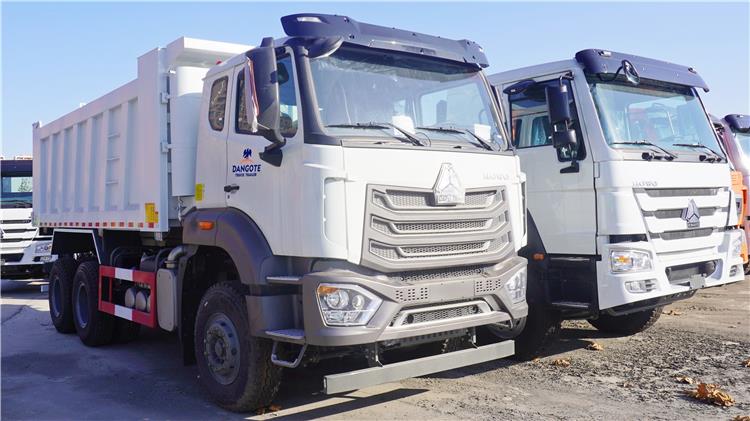

Price of Sinotruk Hohan Howo Dangote Tipper Truck for Sale In Lagos

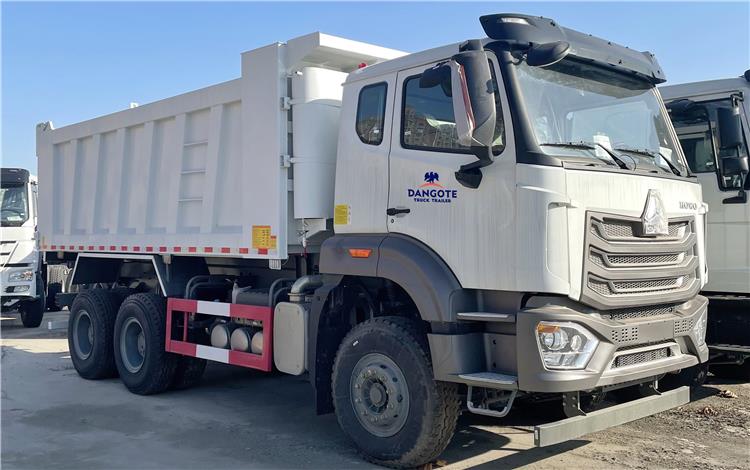

Price of Sinotruk Hohan Howo Dangote Tipper Truck for Sale In Lagos
ENGINE:
Engine model: WD615.47, Euro II emission standard, 4 stroke injection diesel engine, 6 cylinder in-line with water
cooling, turbo-charging & inter cooling, mechanical high pressure oil pump system
Maximum output: 371PS (273kW) at 2000 rpm
Maximum torque: 1560Nm at 1200-1500rpm
Bore: 126mm
Stroke: 130mm
Displacement: 9.726L
CLUTCH: SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance
TRANSMISSION: Transmission, model HW19710, 10 forward and 2 reverse Ratio: 5.73
FRONT AXLE: New HF9 series, with drum brake system
REAR AXLE: HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system.
STEERING: D50, hydraulic steering with power assistance
WHEELS&TYRES:
Rims: 8.5-20,10 hole-steel
Types: 12.00R20
CARGO BODY: 5600*2300*1500, bottom 8mm, side 6mm, Middle lift system
DRIVER CAB:
H77L cab, all steel forward control, 55°hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds, adjustable co-driver’s seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, safety belt, air conditioner
DIMENSIONS(in mm):
Wheel base (mm): 3800+1350
Front wheel track (mm): 2022/2041
Rear wheel track (mm):1830/1830
Overhang(front/rear) (mm):1500/2295
Approach angle(°):19
Departure angle(°):20
Overall Dimension (mm):9745x2496x3550
WEIGHT(in kg):
Permissible loading capacity (kg):13000
Dead weight (kg):12500
Gross vehicle weight (kg):25000
Front axle loading capacity (kg):9000
Rear axle loading capacity (kg):2*16000
PERFORMANCE:
Maximum driving speed(km/h):75(reference data)
Maximum gradeability (%):36
Minimum ground clearance(mm):314
Minimum turning radius (m):15
Fuel consumption(L/100km):40(reference data)
