The new model of truck Trailer shacman has six exclusive fuel-saving technologies, including vehicle power matching, powertrain integration, intelligent thermal management, intelligent shifting, vehicle predictive driving and driving habit evaluation, to provide customers with comprehensive and personalized services.

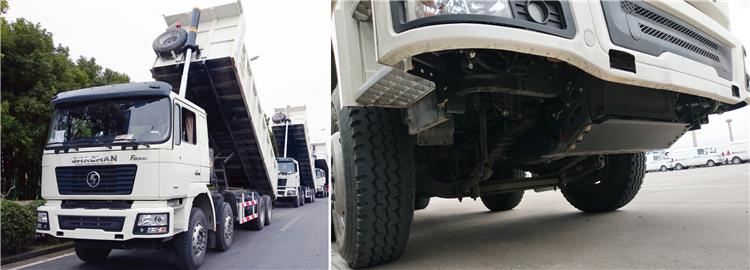

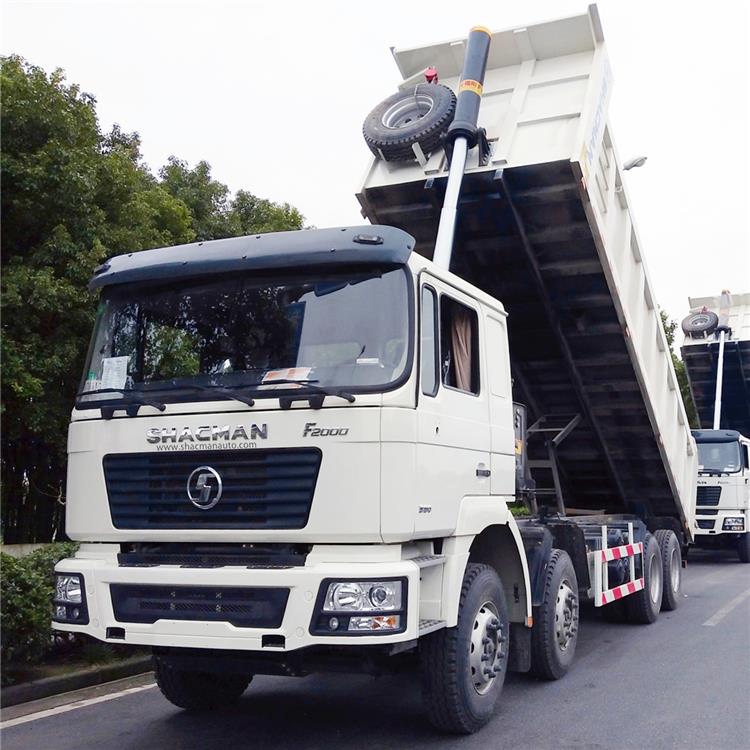

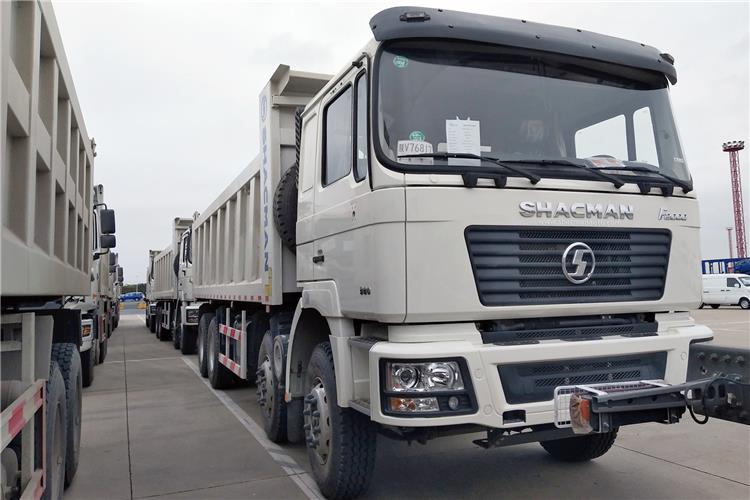

Shacman F2000 12 Wheeler Dump Truck for Sale In Lagos | Truck Shacman
Shacman F2000 12 Wheeler Dump Truck for Sale In Lagos | Truck Shacman
Brand: Shacman 12 Wheeler Dump Truck
Drive model: Left or right driven hand, 8X4
Shacman 12 Wheeler Dump Truck Engine
Engine model: Weichai WD12.420
Power(Kw/Hp): 309/420
Speed(r/min):2200
Idle speed(r/min):600-800
Max torque(N.m):1750
Type: mechanically control, diesel engine, 4-stroke,6-cylinder in line, inter-cooling and turbo-charging, euro-2 or euro-3 emission standard
Stroke(mm):126/155
Displacement(L):11.596
Min.fuel consumption(g/Kw.h):≦198
Engine oil filling volume:39L
The thermostat opened at 82℃
Oil pump: P12
Shacman F2000 Dump Truck Performance
Max. running speed(km/h):90
Max. climbing capacity(%):20
Min. ground clearance(mm):318
Fuel consumption(L/100km):40
Shacman F2000 Dump Truck Electrics
Starter: 5.58kw,24V
Alternator: 1.54kw(28V,55A)
Battery: 135AH
Weight(Kg)
GVW:31000
Front axle loading capacity:6500X2
Rear axle loading weight: 13000X2
Clutch: ∮430 diaphragm clutch
Gearbox Model: Fast Fuller 9JS180 gearbox with 9 forward and 1 reverse
Propeller shaft: ∮180 contrite gear propeller shaft
Front axle: Styre technology 6.5 tons
Rear axle: Styre 13 tons with hub reduction ratio 1:4.8
Chassis Various Widths: ladder structure with parallel straight
Rear suspension: inverted leaf spring with stabilizer
Steering Model: 8098 integral circuiting ball power steering
Ratio:22.2-26.2:1
Tyre: 12.00-20/12.00R20/12.00R22.5,11ps
Cabin: Man F2000 flat head with two seats and one sleep with A/C
Instrument panel: Combined instrument panel
Other: A/C, enlargement radiator, ABS, CD, electricity heated rear view windows
