The lightweight design of the 2 axle 42000 ltrs palm oil tanker price, one-time can forming process, less welds, smooth appearance and stable performance of the whole vehicle. BPW high-end axle, running smoothly, suitable for a variety of road conditions.
The tank body and frame of the 2 axle 42000 ltrs palm oil tanker price adopt the full powder spraying process, and the weather resistance, corrosion resistance and coating hardness are twice as high as those of ordinary paint.

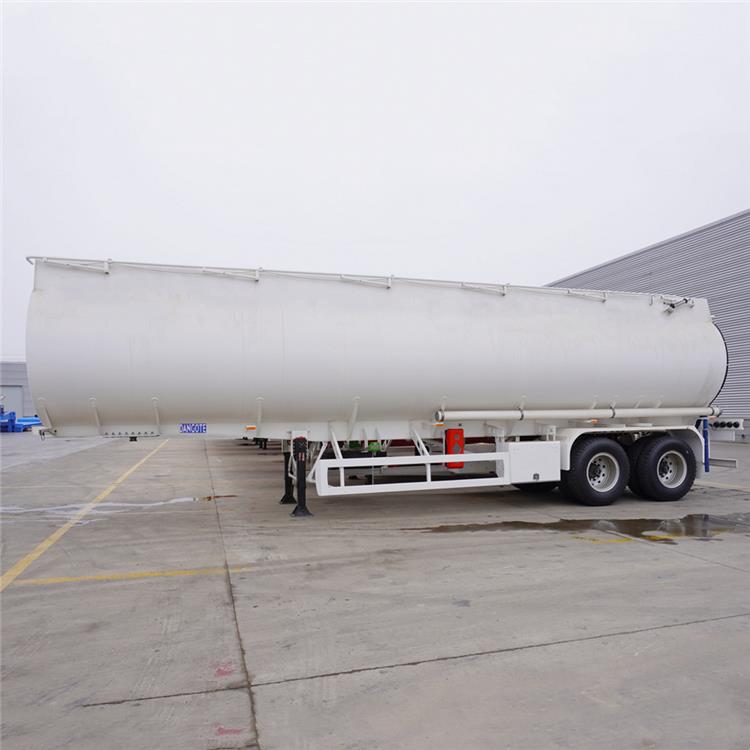

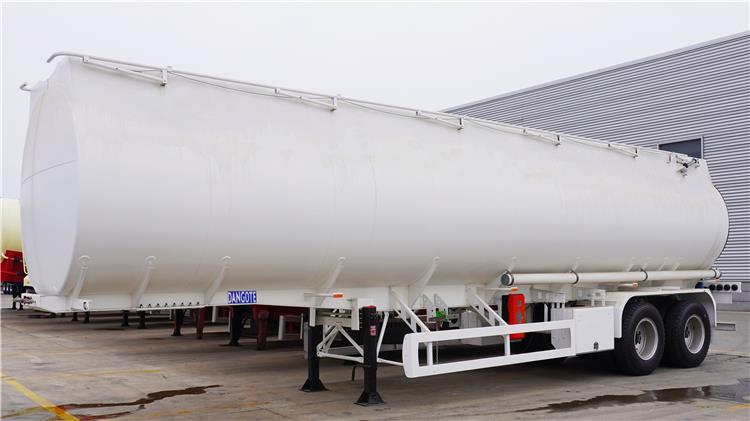

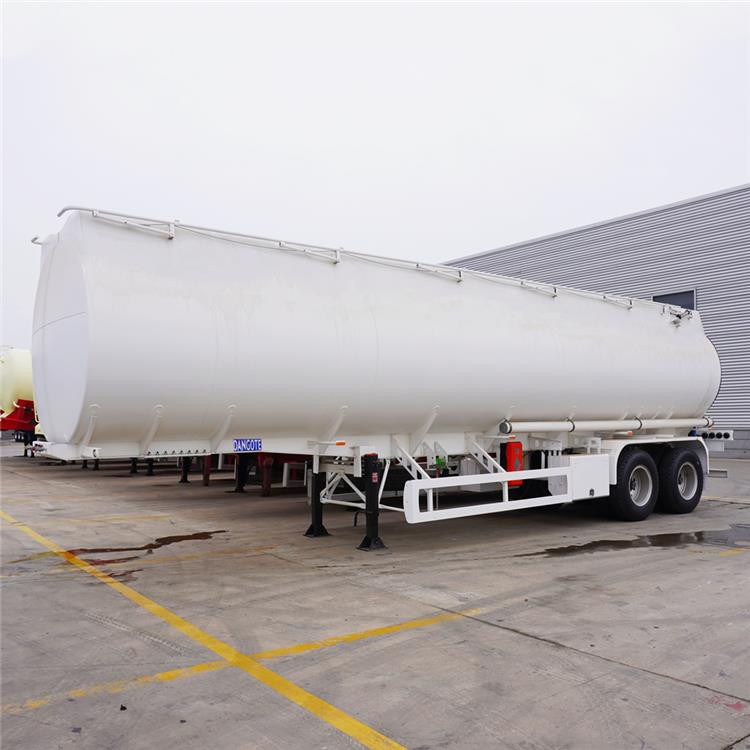

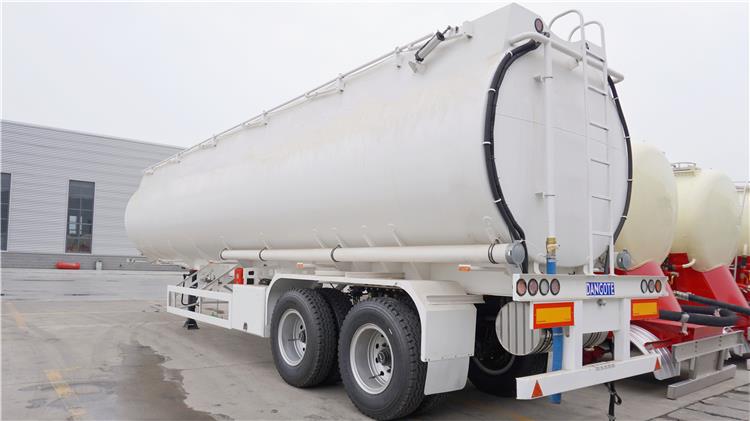

2 Axle 42000 Ltrs Palm Oil Tanker Price | Diesel Tanker Trailer for Sale
2 Axle 42000 Ltrs Palm Oil Tanker Price | Diesel Tanker Trailer for Sale
2 Axle 42000 Ltrs Palm Oil Tanker Price | Diesel Tanker Trailer for Sale
2 Axle 42000 Ltrs Palm Oil Tanker Price | Diesel Tanker Trailer for Sale
Dimension: 12300mm * 2500mm *3900mm
Total volume(L): 42000
Tank Body Material: Q235 carbon steel
End plate: Q235 carbon steel
Manhole Cover: Carton steel
Bottom Valve: Aluminum API Pneumatic Bottom Valve
Compressor: BOHAI 10m³/12m³ or other brands
Discharging Valve: Diameter is 3 or 4 inch
Compartments: 2 Compartment
Discharging Pipe: 4 inch rubber hose,2pcs,6m/each
Cat Walk: With (common model or special design)
Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material
Axle: 2 axles,13T,FUWA
Landing Gear: JOST(D200T) or China brand 28T
Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin
Suspension: Bogie suspension
Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers
Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank
Rim: 9.00-22.5Chinese brand
Tire: 12.00R22.5
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Accessories: One standard tool box
Shipping Terms: By bulk cargo, RORO or 40HQ containers
