Because the 40000 l fuel tank transport semi trailer are basically sealed containers, which are less affected by the external environment and climate conditions, the goods can be better protected during transportation.
Transport by 40000 l fuel tank transport semi trailer is easy to realize mechanization of loading, unloading, transportation and storage. It not only saves labor but also saves a lot of packaging materials, which greatly reduces transportation costs.

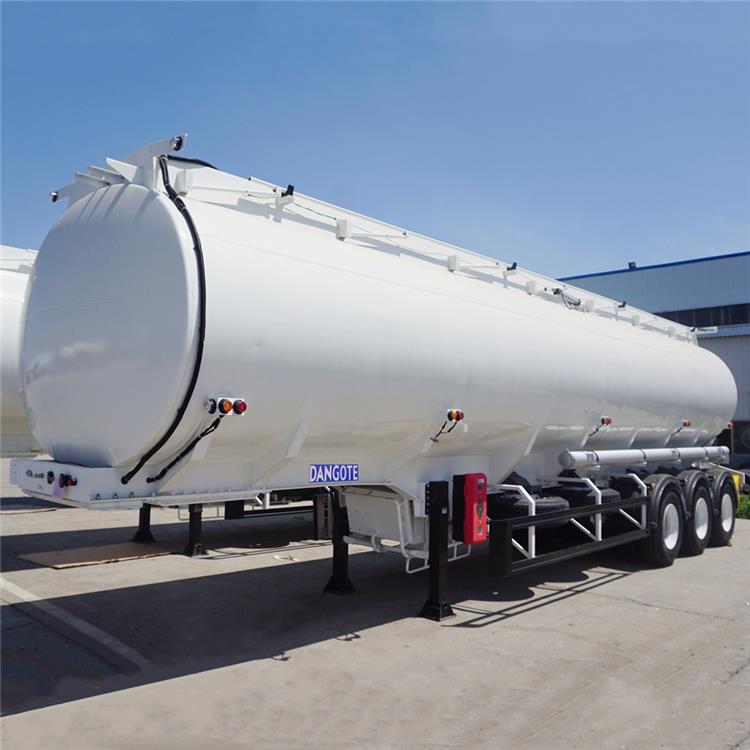

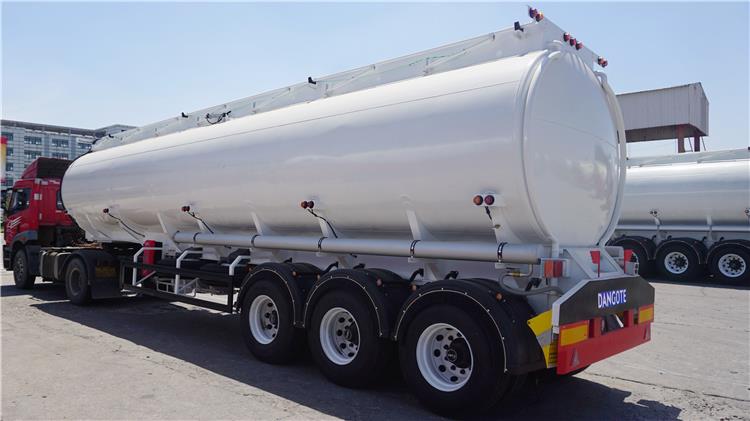

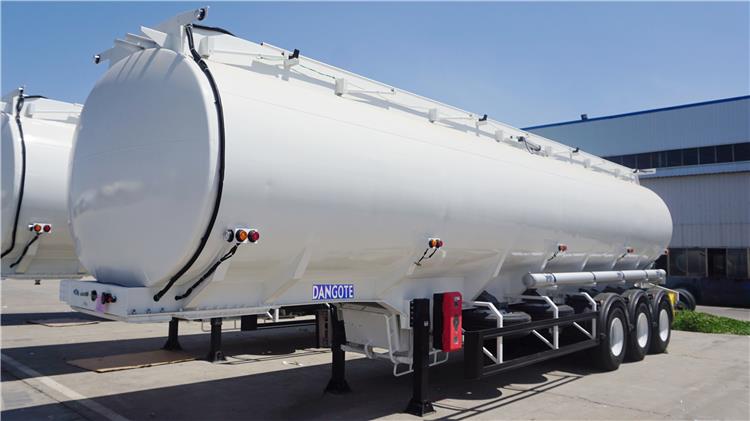

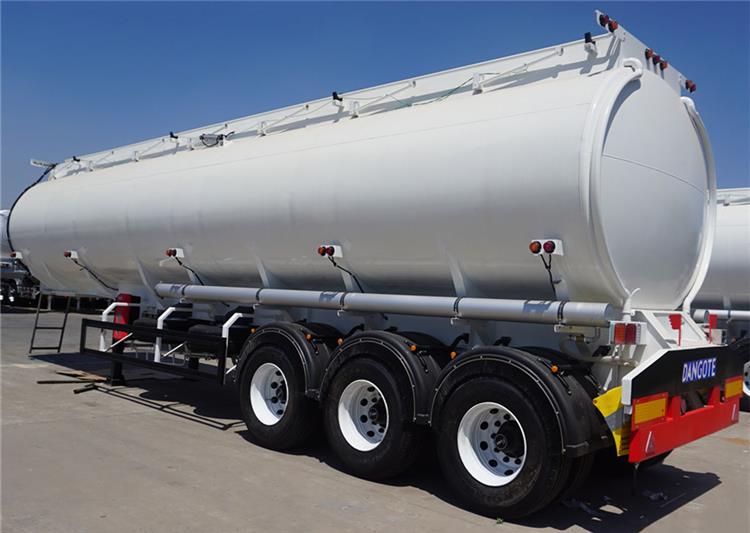

Dangote Heavy 40000 L Fuel Tank Transport Semi Trailer Price for Sale in Nigeria Lagos
Dangote Heavy 40000 L Fuel Tank Transport Semi Trailer Price for Sale in Nigeria Lagos
Dangote Heavy 40000 L Fuel Tank Transport Semi Trailer Price for Sale in Nigeria Lagos
Dangote Heavy 40000 L Fuel Tank Transport Semi Trailer Price for Sale in Nigeria Lagos
Dimension: 11500mm * 2500mm *3700mm (the exact size depends on the final design.)
Tare Weight (semi trailer): About 8000-12800kg
Total volume(m³): 40m³
Axle: 3 axles,12T/13T/16T,BPW/ FUWA
Landing Gear: JOST(D200T) or China brand 28T
Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin
Suspension: Mechanical suspension
Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers
Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank
Tank Body Material: 5mm or 6mm/Q235 carbon steel
End plate: 5mm or 6mm/Q235 carbon steel
Manhole Cover: Carton steel
Bottom Valve: Aluminum API Pneumatic Bottom Valve
Compressor: BOHAI 10m³/12m³ or other brands
Discharging Valve: Diameter is 3 or 4 inch
Compartments: Optional
Discharging Pipe: 4 inch rubber hose,2pcs,6m/each
Cat Walk: With (common model or special design)
Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material
Rim: 9.00-22.5/8.00-20/8.5-20 Chinese brand
Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional
ABS: Optional
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Accessories: One standard tool box
Shipping Terms: By bulk cargo, RORO or 40HQ containers
