Dangote 3 axle 60 ton fence semi trailer adopt famous state-owned steel manufacture steel raw materials which have better performance in long term heavy load. The dry bulk cargo fence trailers are manufactured by Dangote with good service lift term for cargo road transport.
Fence semi trailer can satisfy customers multiple usage demands not only for bagged cement, steel bars, steel pipes, ton bag material, and also to carry 40ft containers or 20 ft containers.

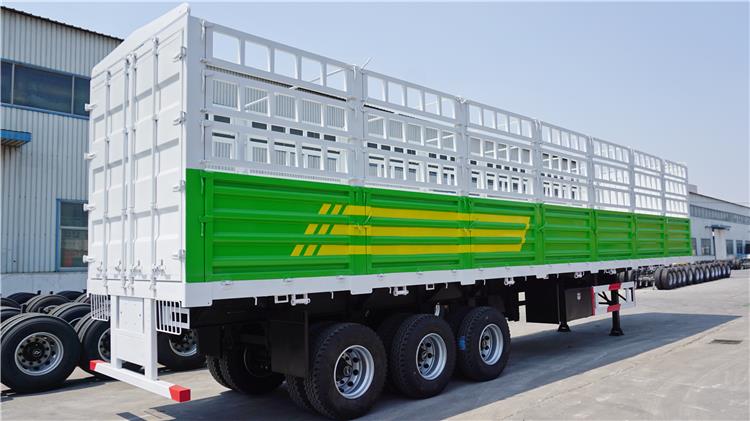

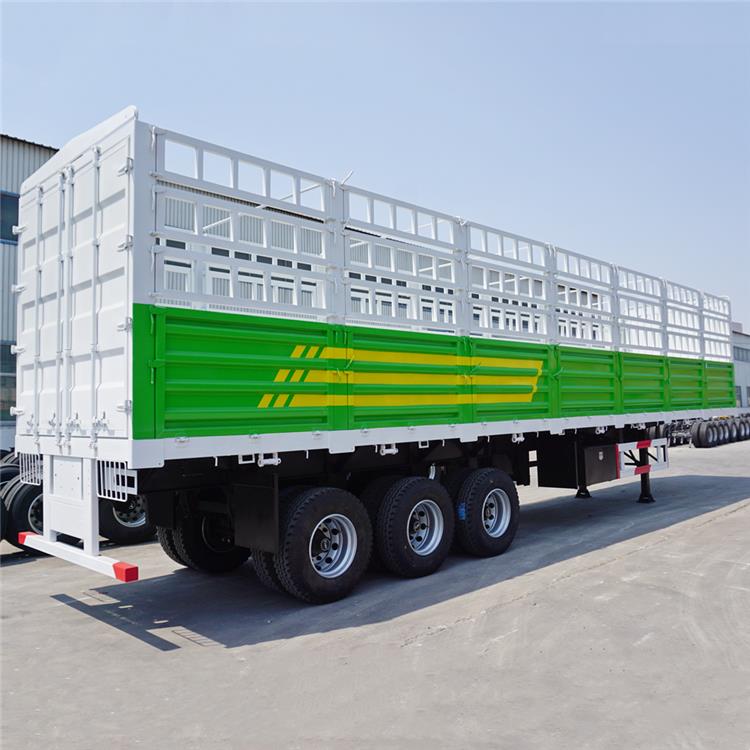

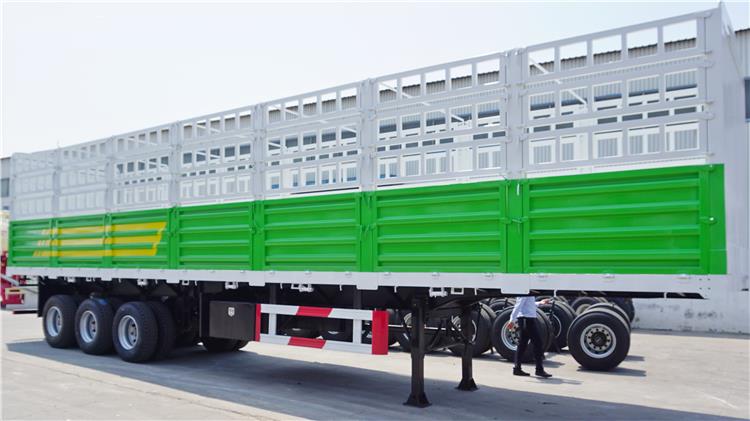

Dangote 3 Axle 60 Ton Fence Semi Trailer for Sale In Sudan
Dangote 3 Axle 60 Ton Fence Semi Trailer for Sale In Sudan
Dimension(mm): 12490x2490x3500mm
Trailer Sides: 1800mm
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Bottom Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T, FUWA/BPW
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (especially intended for oversea market)
ABS: Optional
Light: LED light (especially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
