Tri Axle Grain Transport Trailer

Tri Axle Grain Transport Trailer

10000 USD

Tri axle grain transport trailer with a sash structure, widely used, mainly suitable for medium and long-distance transportation of medium and heavy-duty and bulk cargo.

SKU: Tri Axle Grain Transport Trailer
MPN: DANGOTE8808001
Brand: DANGOTE

Grain Transport Trailer Price: 10000USD

The tri axle grain transport trailer disassembly is convenient, the special column structure, the railing is removed, and the container can be transported.

The tri axle grain transport trailer welded beam in the welding process can bring reduction of steel strength, annealing, variant, welding spot strength is much lower than steel strength itself.

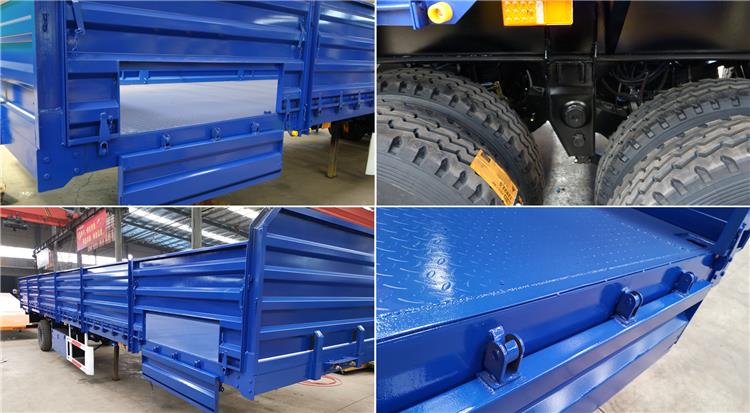

Tri Axle Grain Transport Trailer | Drop Side Trailer -Dangote Trailer

Tri Axle Grain Transport Trailer | Drop Side Trailer -Dangote Trailer

Tri Axle Grain Transport Trailer | Drop Side Trailer -Dangote Trailer

Tri Axle Grain Transport Trailer | Drop Side Trailer -Dangote Trailer

Tri Axle Grain Transport Trailer | Drop Side Trailer -Dangote Trailer

Tri Axle Grain Transport Trailer | Drop Side Trailer -Dangote Trailer



Drop Side Trailer Specifications:

Tare Weight: About 7.6T

Dimension(mm): 13000x2500x3050mm

Trailer Sides: 1500mm

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Bottom Platform: 3mm-thick checkered plate

Axles: 3 axles, 13T/16T ,FUWA/ BPW

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical

Loading capacity(ton): ≤60T

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
