The 40 foot flatbed container semi trailer can not only carry container but also bulk cargo like steel plates, steel tubes and pipes, steel bars, etc. And the centralized loading heavy duty flatbed trailer can also be made for 80 tons 100ton payload for steel coil of the strip.
The 40 foot flatbed container semi trailer adopts high-strength steel Q345B steel material from China's famous steel manufacturer, have good performance ability in long-term large load weight transporting.

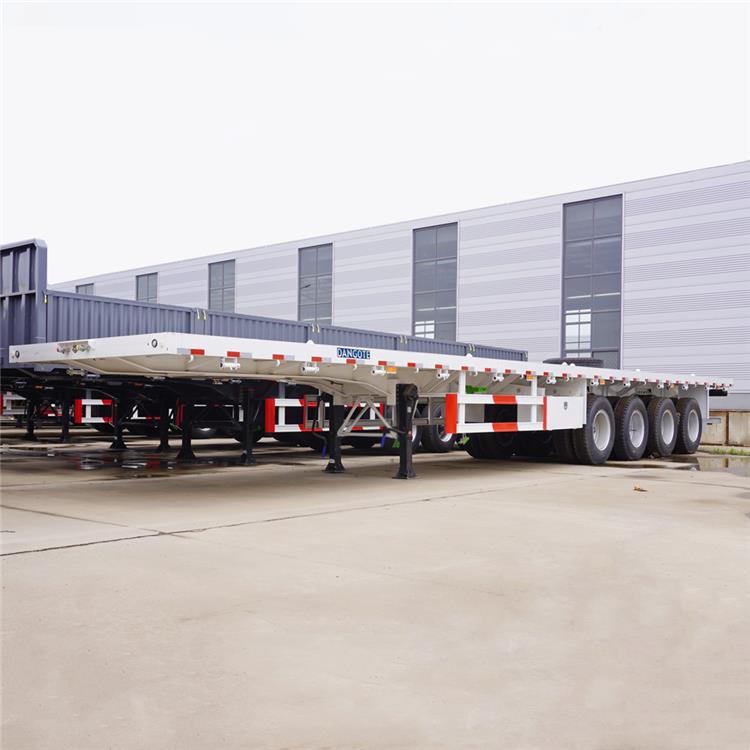

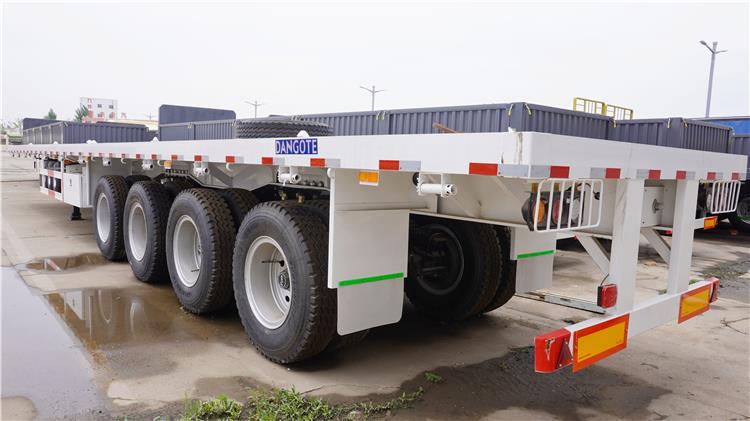

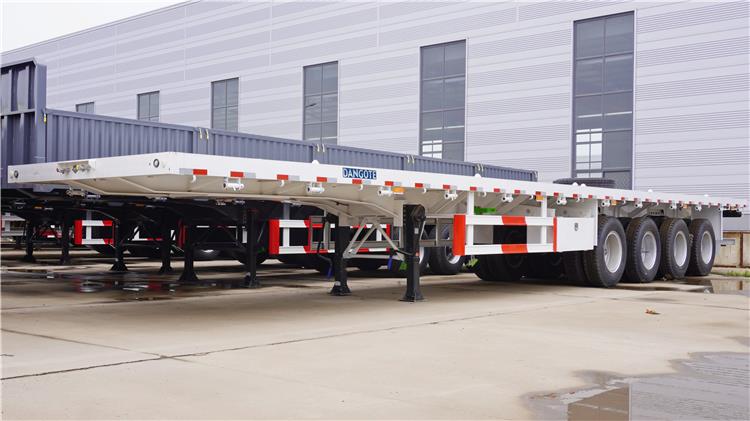

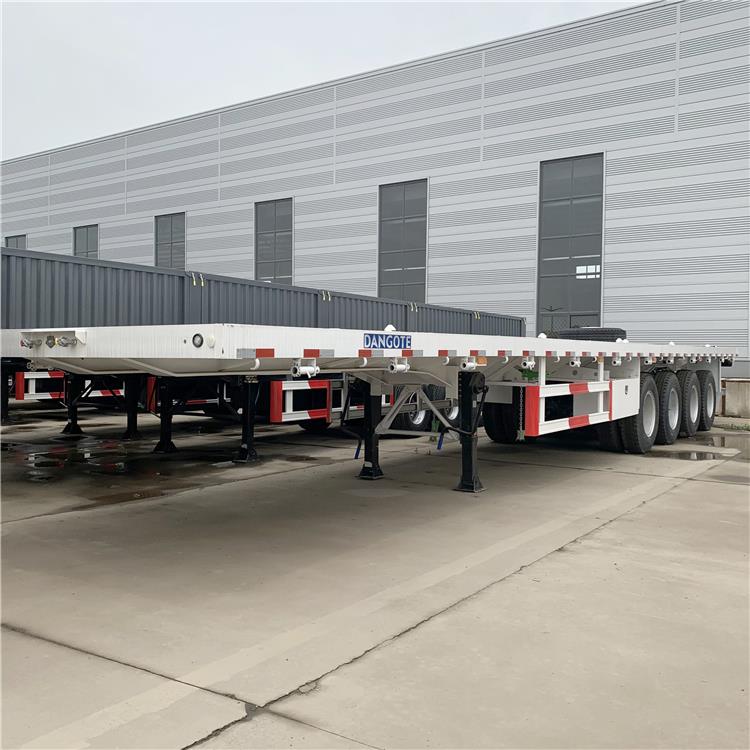

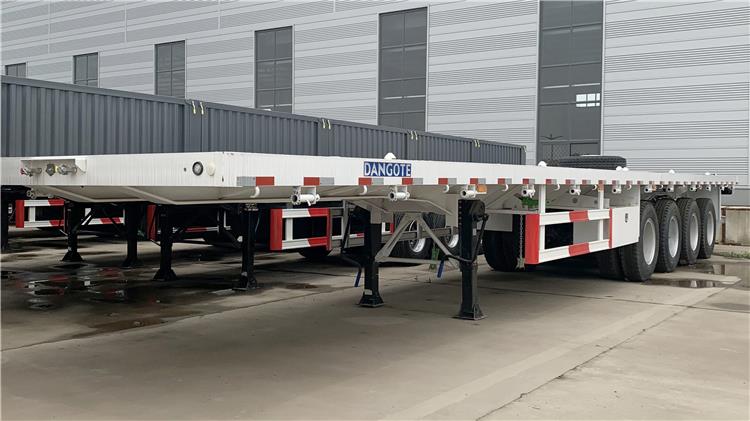

Dangote 40 foot Flatbed Container Semi Trailer for Sale Manufacturer
Dangote 40 foot Flatbed Container Semi Trailer for Sale Manufacturer
Dangote 40 foot Flatbed Container Semi Trailer for Sale Manufacturer
Dangote 40 foot Flatbed Container Semi Trailer for Sale Manufacturer
Dimension(mm): 13500x2500x1530mm
Loading capacity(ton): ≤80T

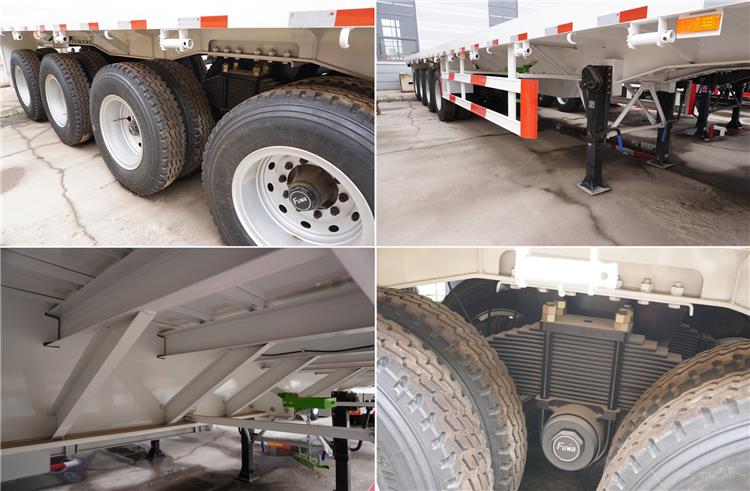

Axles: 4 axles, 13T/16T ,FUWA/ BPW
Tire: 16 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Bogie Suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
