Dangote 40cbm u shape rear dumper semi trailer hydraulic system is stable, the design of the oil circuit is reasonable, the lifting of the oil cylinder synchronization, the hydraulic system is the power source for the dumping of the semi-trailer dump, it is composed of the main original components such as the pump set, valve set, oil tank, pipeline, oil cylinder, etc.

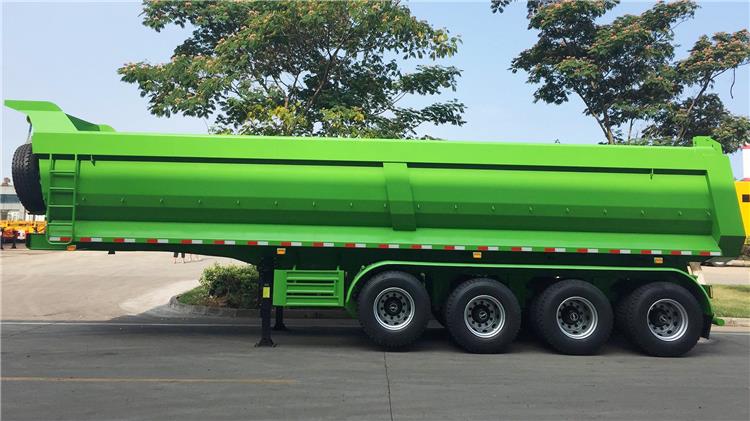

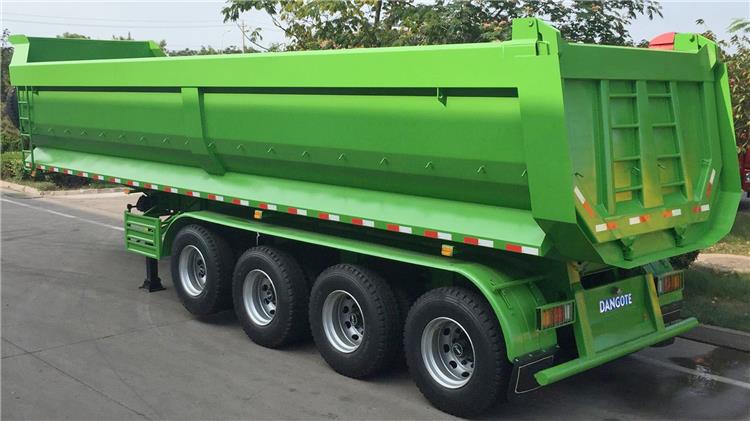

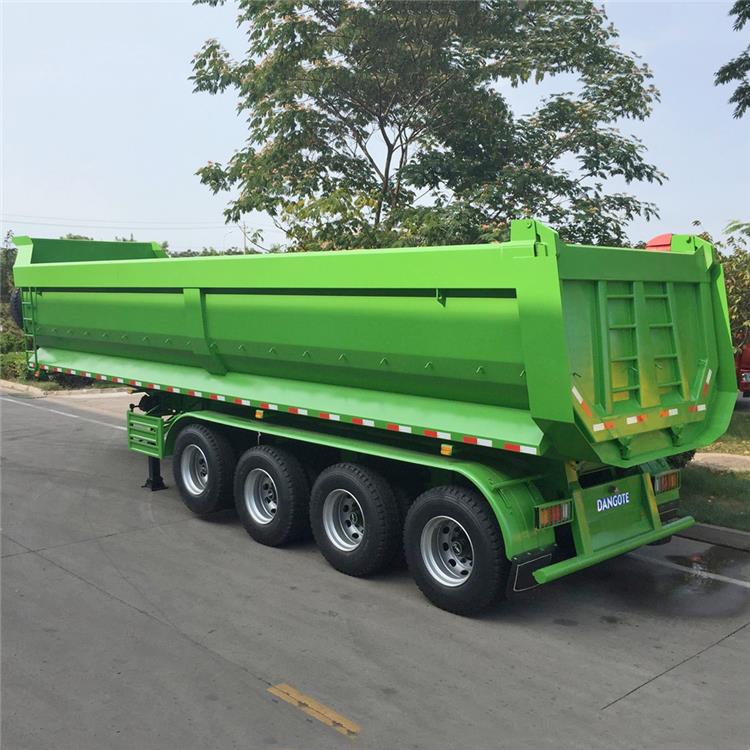

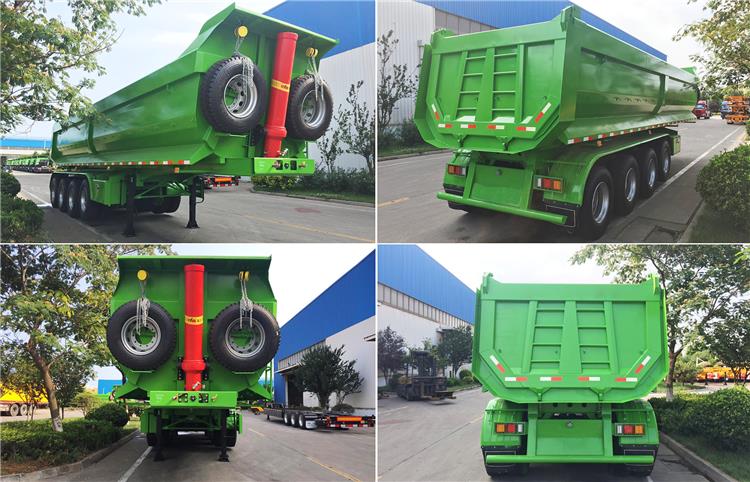

The structure of the new 40cbm u shape rear dumper semi trailer design is reasonable, and the center of gravity of the chassis is low.
Price of 4 Axle 40CBM U Shape Rear Dumper Semi Trailer for Sale | Dangote Trailer
Price of 4 Axle 40CBM U Shape Rear Dumper Semi Trailer for Sale | Dangote Trailer
Price of 4 Axle 40CBM U Shape Rear Dumper Semi Trailer for Sale | Dangote Trailer
Price of 4 Axle 40CBM U Shape Rear Dumper Semi Trailer for Sale | Dangote Trailer
Dimension: 10000mmx2500mm x3500mm ( inside dimension )
Total volume(ton): 100Ton
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Side wall thickness: 4 - 6mm
End plate: 8mm

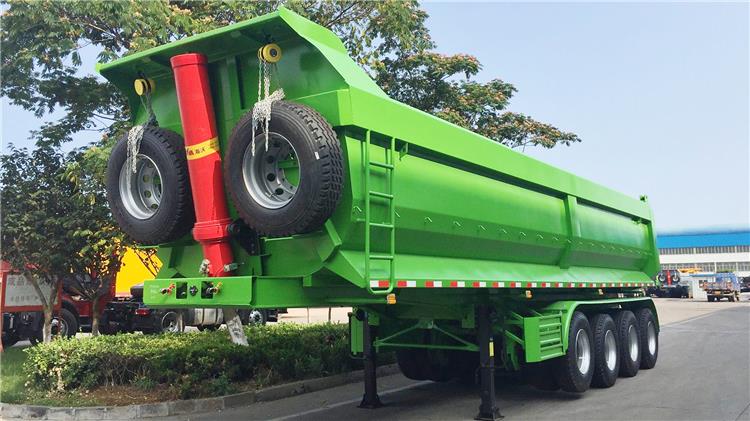

Lifting System: Full set of HYVA lifting cylinder
Axle: 4 Axle, 16T, FUWA
Rim: 8.0-20 or 9.00-20
Tire: 12R22.5
Landing gear: JOST brand
ABS: Optional
Valve: WABCO valve
Light: LED light (especially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.
Main beam: Height: 480mm-500mm, Upper plate: 16mm-25mm, Middle plate: 12mm-20mm, Lower plate: 18mm-25mm, Material: T700 steel.
Bottom Platform: 4-6mm thick checkered plate
