The dump truck trailer is suitable for the transportation of bulk and bulk goods such as coal, ore, and building materials.
Broaden high strength body stake and cargo body thickness can be tailored into different types according to needs for transportation of gravel, coal and other material.

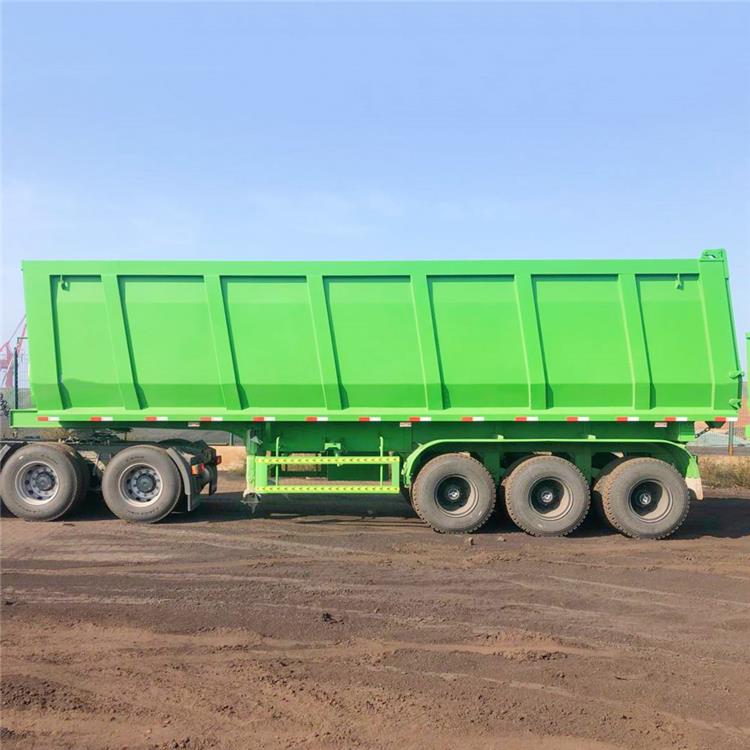

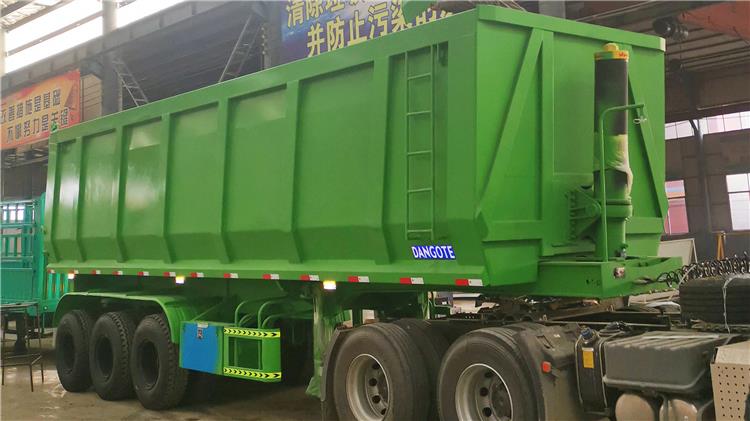

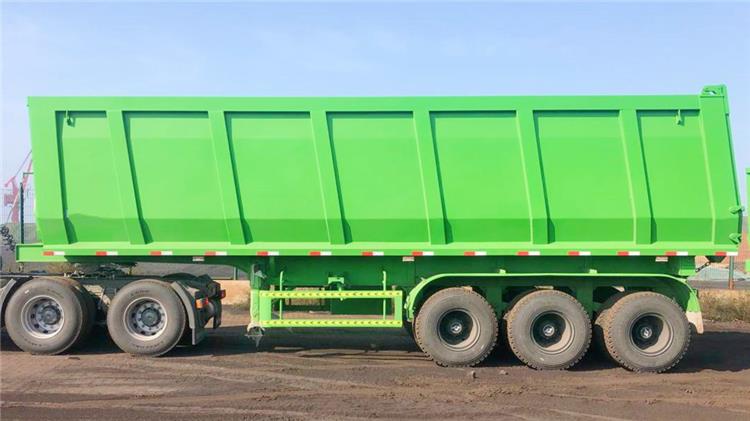

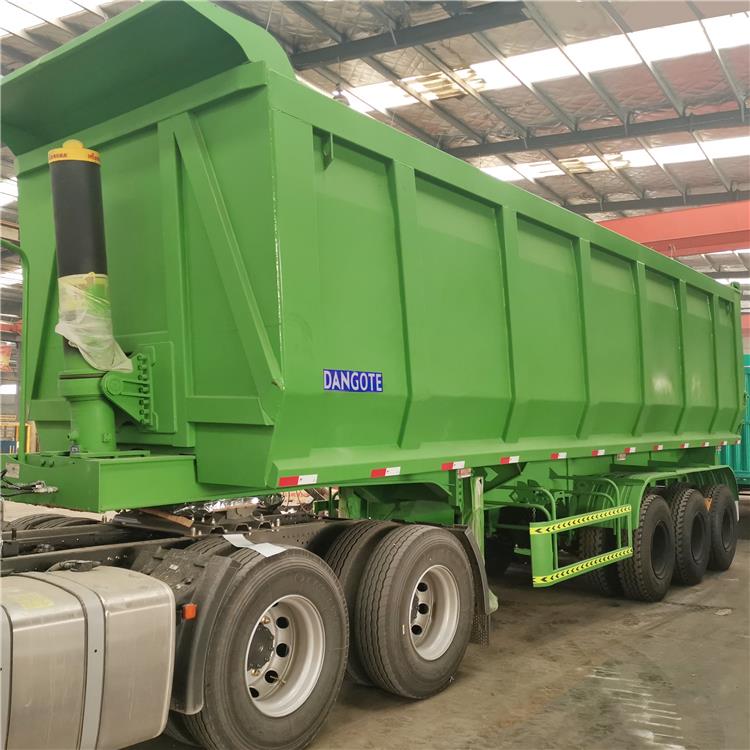

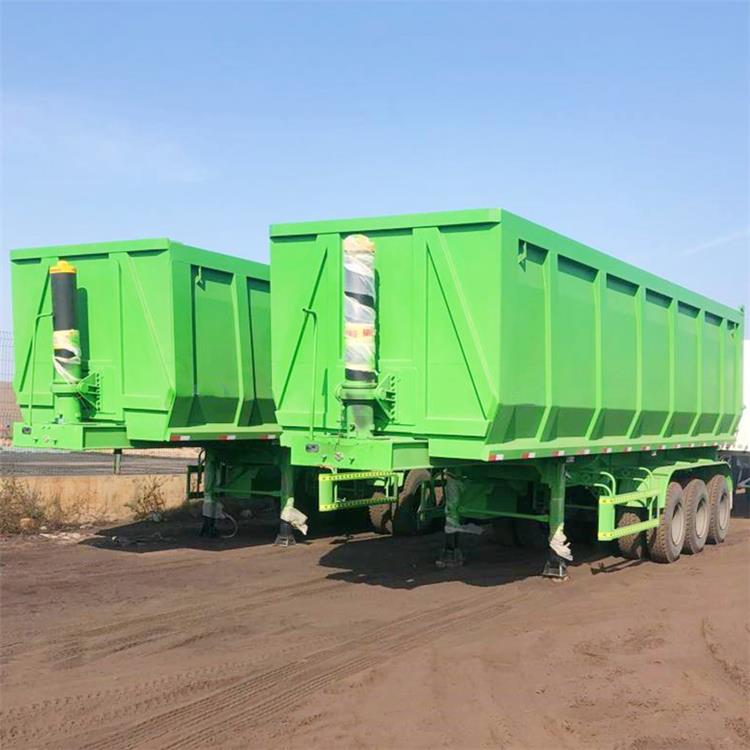

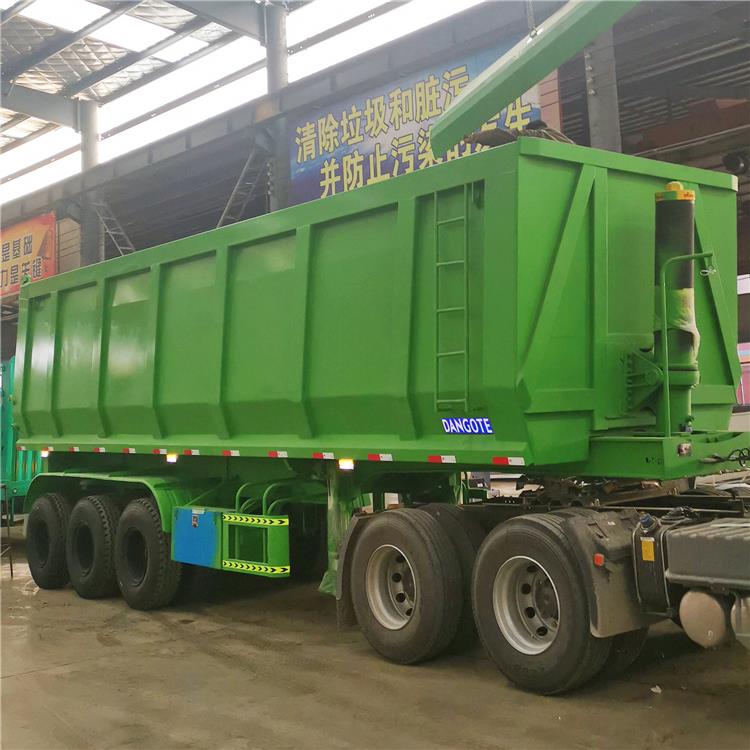

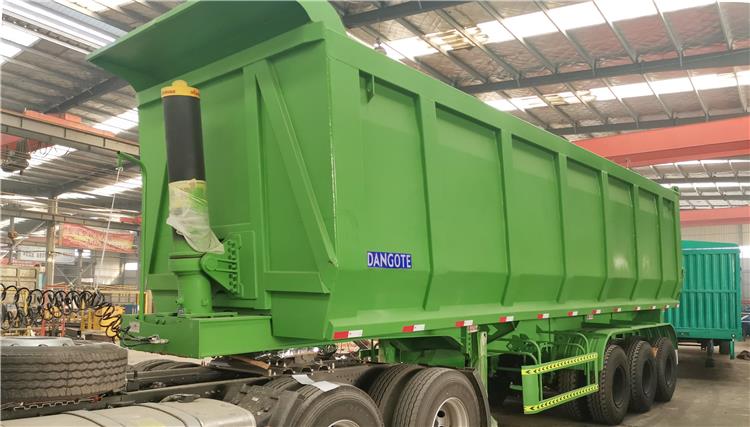

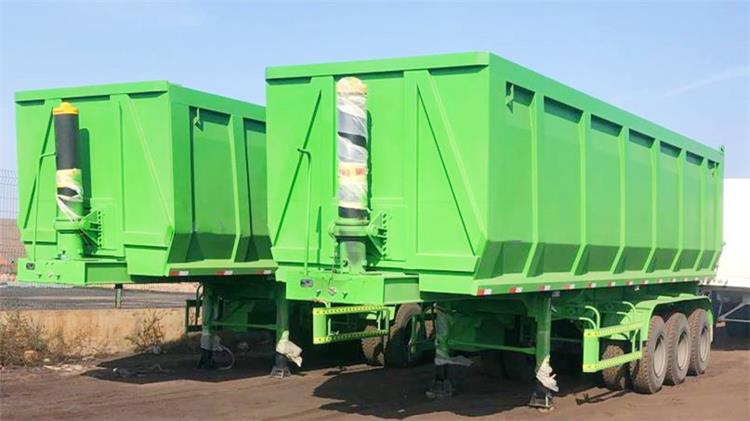

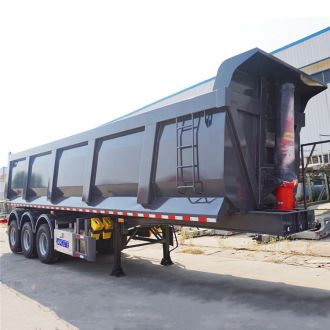

Dangote 100 Ton Heavy Duty Hydraulic Semi End Dump Truck Trailers for Sale
Dangote 100 Ton Heavy Duty Hydraulic Semi End Dump Truck Trailers for Sale
Dangote 100 Ton Heavy Duty Hydraulic Semi End Dump Truck Trailers for Sale
Dangote 100 Ton Heavy Duty Hydraulic Semi End Dump Truck Trailers for Sale
Dimension: 10200mmx2500mm x3700mm ( inside dimension )
Total volume(ton): 100Ton
Side wall thickness: 4 - 6mm
End plate: 8mm
Lifting System: Full set of HYVA lifting cylinder
Axle: 3 Axle, 13T, FUWA
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Rim: 8.0-20 or 9.00-20
Tire: 12R22.5
Main beam: Height: 480mm-500mm, Upper plate: 16mm-25mm, Middle plate: 12mm-20mm, Lower plate: 18mm-25mm, Material: T700 steel.
Bottom Platform: 4-6mm thick checkered plate
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.
