This is a 10 wheeler howo 371 tipper truck Trailer with an automatic dumping device. Also known as dump truck and engineering vehicle, it consists of an automobile chassis, a hydraulic lifting mechanism, a power take-off and a cargo compartment.
The front of the 10 wheeler howo 371 tipper truck is equipped with a marker light, which looks more refined and can effectively improve driving safety. The 10 wheeler howo 371 tipper truck adopts a split design for the far and near beams on the light source, and the headlights support height adjustment.

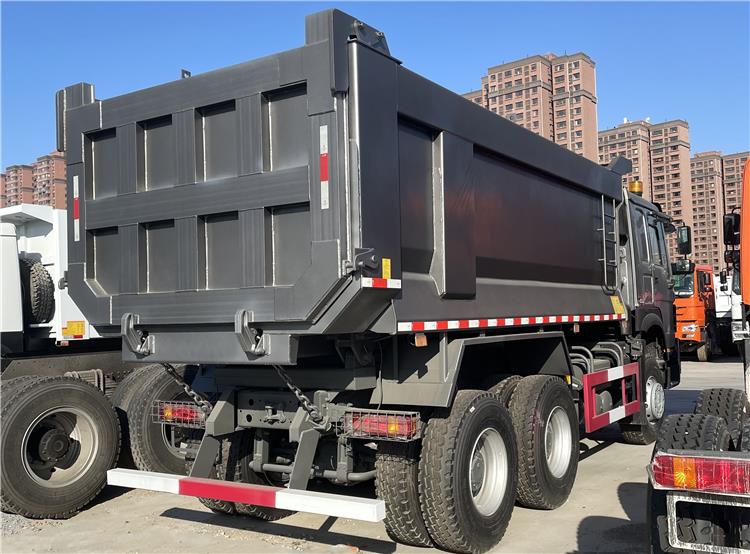

Dangote Sinotruk U Shape Howo 371 10 Wheeler Tipper Truck Price for Sale In Nigeria
Dangote Sinotruk U Shape Howo 371 10 Wheeler Tipper Truck Price for Sale In Nigeria
Dangote Sinotruk U Shape Howo 371 10 Wheeler Tipper Truck Price for Sale In Nigeria
CLUTCH: SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance
TRANSMISSION: Transmission, model HW19710, 10 forward and 2 reverse Ratio: 5.73
FRONT AXLE: New HF9 series, with drum brake system
REAR AXLE: HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system.
STEERING: ZF8118, hydraulic steering with power assistance Ratio: 22.2-26.2:1
ENGINE:
Engine model: WD615.47, Euro II emission standard, 4 stroke injection diesel engine, 6 cylinder in-line with water
cooling, turbo-charging & inter cooling, mechanical high pressure oil pump system
Maximum output: 371PS (273kW) at 2000 rpm
Maximum torque: 1560Nm at 1200-1500rpm
Bore: 126mm
Stroke: 130mm
Displacement: 9.726L
WHEELS&TYRES:
Rims: 8.5-20,10 hole-steel
Types: 13R22.5
CARGO BODY: 5600*2300*1500, bottom 8mm, side 6mm, Middle lift system (Other sizes are optional)
DRIVER CAB:
Long cab, all steel forward control, 55°hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds, adjustable co-driver’s seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, safety belt, air conditioner, 2 warming light
PERFORMANCE:
Maximum driving speed(km/h):75(reference data)
Maximum gradeability (%):36
Minimum ground clearance(mm):314
Minimum turning radius (m):15
Fuel consumption(L/100km):40(reference data)
DIMENSIONS(in mm):
Wheel base (mm): 3800+1350
Front wheel track (mm): 2022/2041
Rear wheel track (mm):1830/1830
Overhang(front/rear) (mm):1500/2295
Approach angle(°):19
Departure angle(°):20
Overall Dimension (mm):9745x2496x3550
WEIGHT(in kg):
Permissible loading capacity (kg):13000
Dead weight (kg):12500
Gross vehicle weight (kg):25000
Front axle loading capacity (kg):9000
Rear axle loading capacity (kg):2*16000
