4 Axle animal transport livestock trailer is mainly used for transporting livestock and poultry, vegetables, bulk cargo, small equipment and parts, etc., which also plays a very important role in power engineering and communication engineering
Dangote 4 axle animal transport livestock trailer design four axles, 16tons heavy axle can be durable and adapt Africa road condition.

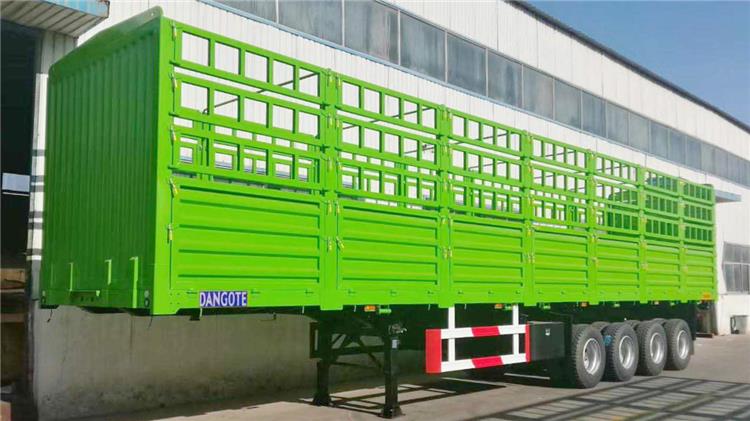

Dangote 4 Axle Animal Transport Livestock Fence Semi Trailer for Sale
Dangote 4 Axle Animal Transport Livestock Fence Semi Trailer for Sale
Dangote 4 Axle Animal Transport Livestock Fence Semi Trailer for Sale
Dimension(mm): 13000mm * 2500mm *3350mm
Trailer Sides: 1800mm
Loading capacity(ton): ≤80T
Axles: 4 axles, 13T/16T, FUWA/BPW
Tire: 16 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (especially intended for oversea market)
Suspension: Mechanical suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (especially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper Plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Light: LED light (especially intended for the oversea market)
Voltage: 24V
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Bottom Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
