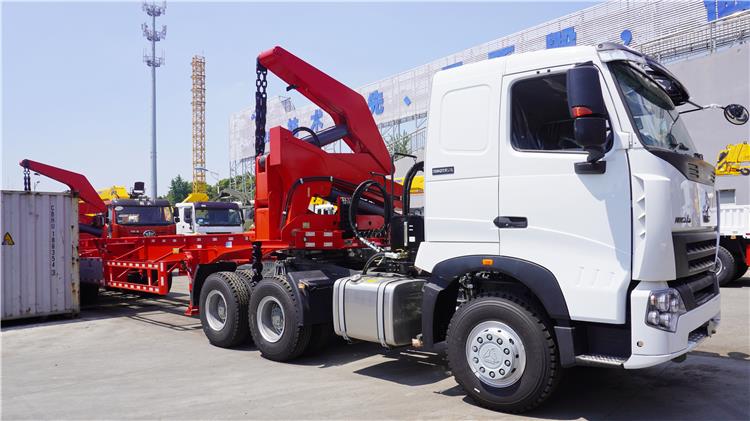

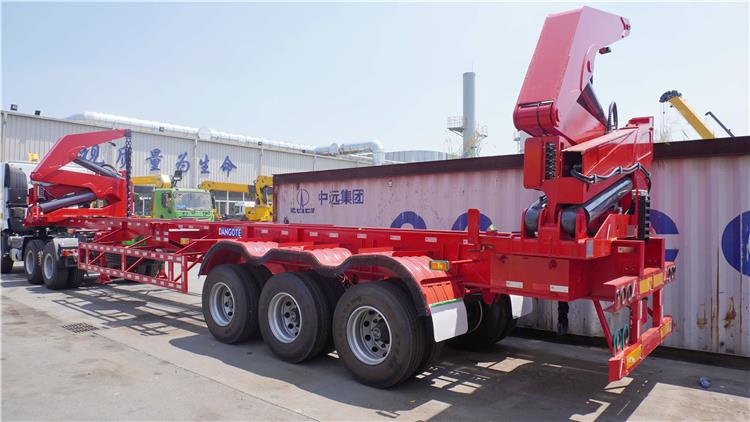

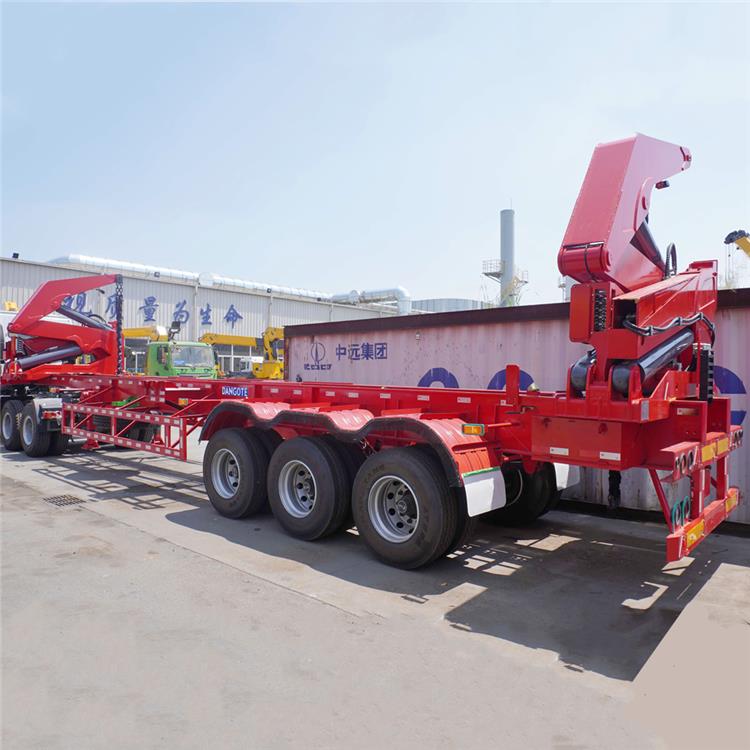

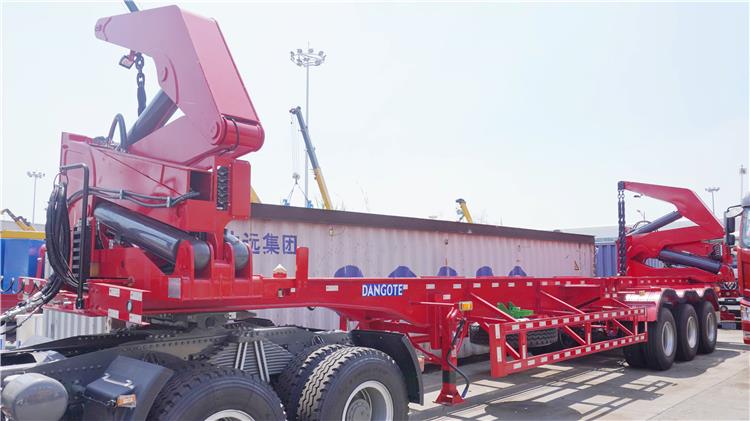

The 40 foot self loading container trailer is only used to load 20ft containers, also can transfer containers to other trailers, trucks and trains or load other construction machinery.
The ground pressure of this series of 40 foot self loading container trailer is very low, which is not only suitable for field and warehouse operations but also suitable for operations in harsh off-road areas
And with a high lifting capacity of 37 tons, it can satisfy you to handle different types of heavy loads.
Self Load Trailer | Dangote 40 foot Self Loading Container Trailer for Sale
Self Load Trailer | Dangote 40 foot Self Loading Container Trailer for Sale
Self Load Trailer | Dangote 40 foot Self Loading Container Trailer for Sale
Self Load Trailer | Dangote 40 foot Self Loading Container Trailer for Sale
Max. lifting capacity: 40Ton
Max.stabilizer outreach: 3200mm
Max.working range: 4000mm
Overall height: 2500mm
Overall length: 1020mm
Max.pressure of hydraulic system: 28Mpa
Dimension(L*W*H): 14100*2500*4200mm
Tow Chain: lgus (imported)
Power source: Power take-off (equipped)
Hydraulic pump: Gear type Casappa Italy
Direction control valves: AMCA Holand
Remote Control: NBB Germany

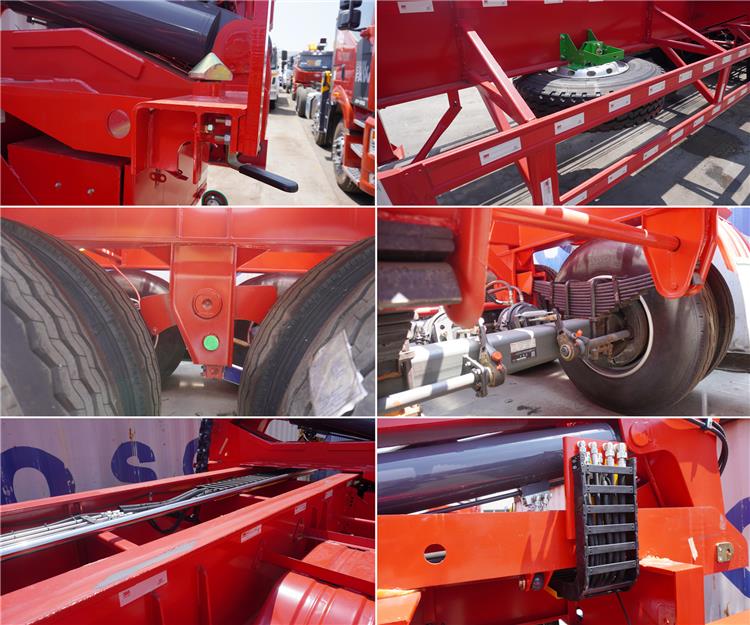

Axle: 3 axle* 13 ton (220mm brake pads)
Tire: 12 pcs, 12R22.5
Suspension: Heavy-duty type mechanical spring suspension
Kingpin: 3.5-inch bolted type
Braking system: WABCO Emergency valve
Landing gear: JOST
