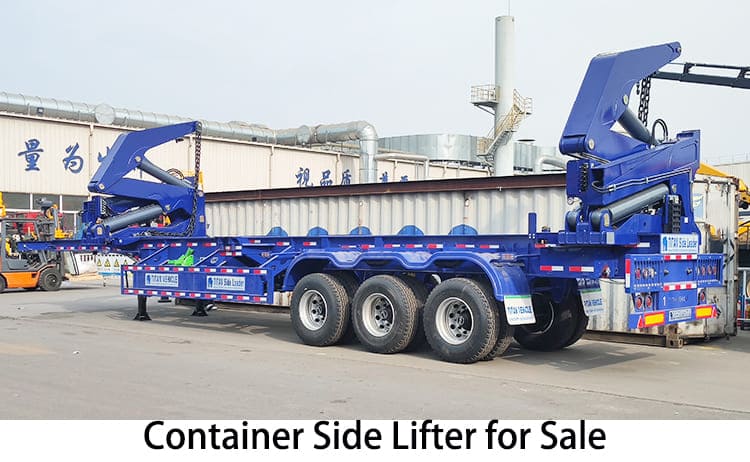

Dangote trailer container side lifter for sale are mainly used for loading and unloading containers and can efficiently complete cargo handling tasks. Container side lifter for sale are also suitable for places such as ports, logistics centers and large warehouses to facilitate the rapid flow of goods.

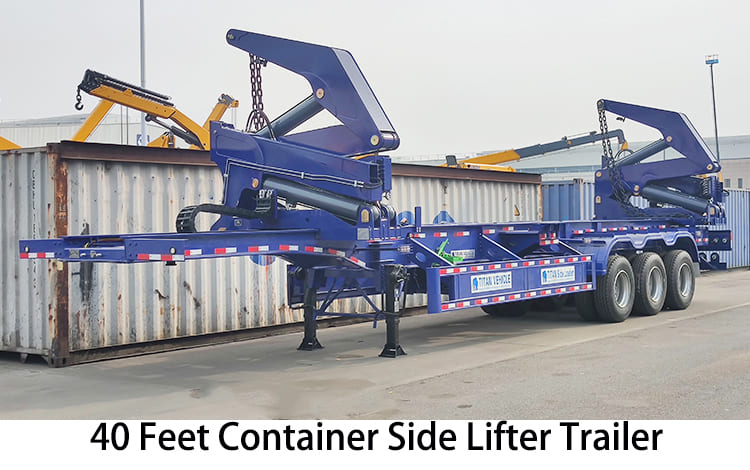

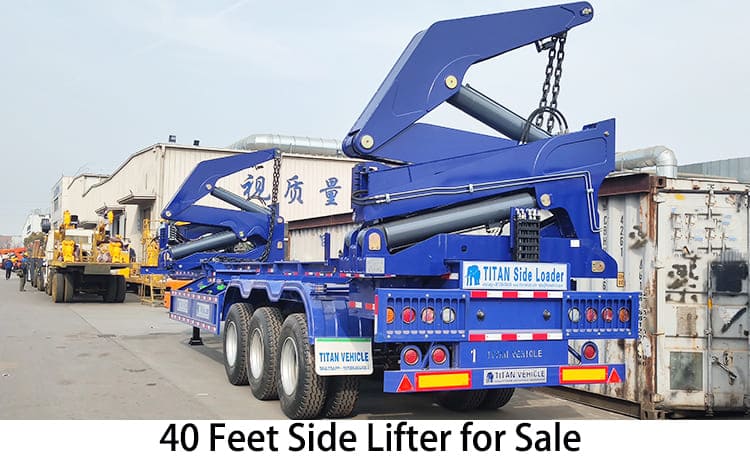

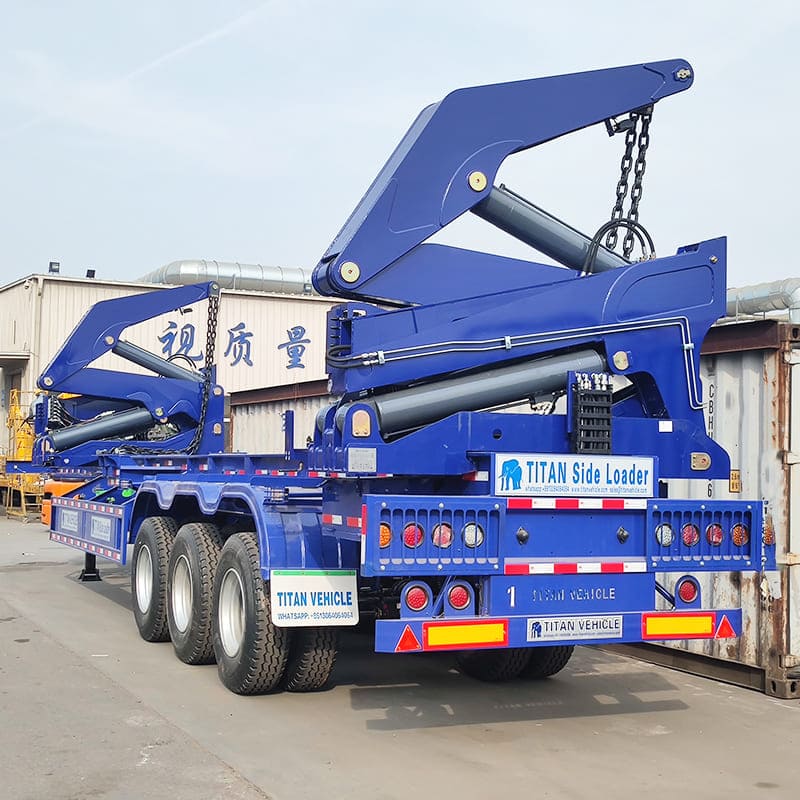

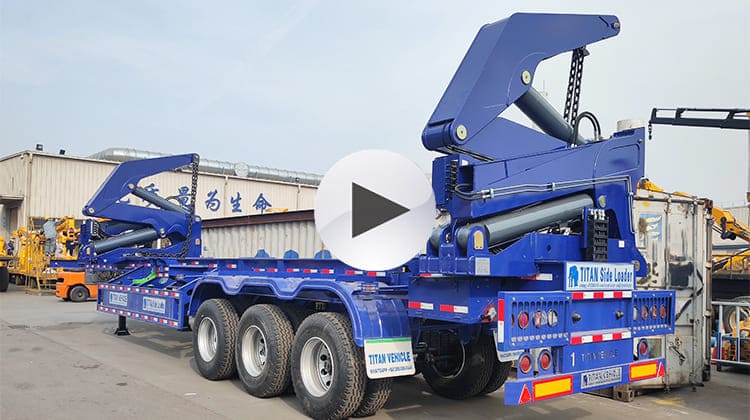

Dangote Trailer 40 Feet Container Side Lifter for Sale
Dangote trailer 40 feet container side lifter for sale are mainly used for loading and unloading and transporting containers, and can efficiently complete cargo handling tasks. 40 Feet container side lifter for sale is also suitable for places such as ports, logistics centers and large warehouses, providing convenience for the rapid circulation of goods.
Dangote Trailer 40 Feet Container Side Lifter for Sale
Dangote Trailer 40 Feet Container Side Lifter for Sale
Dangote Trailer 40 Feet Container Side Lifter for Sale
Dangote Trailer 40 Feet Container Side Lifter for Sale
Dangote Trailer 40 Feet Container Side Lifter for Sale
Max. lifting capacity: 40 Ton

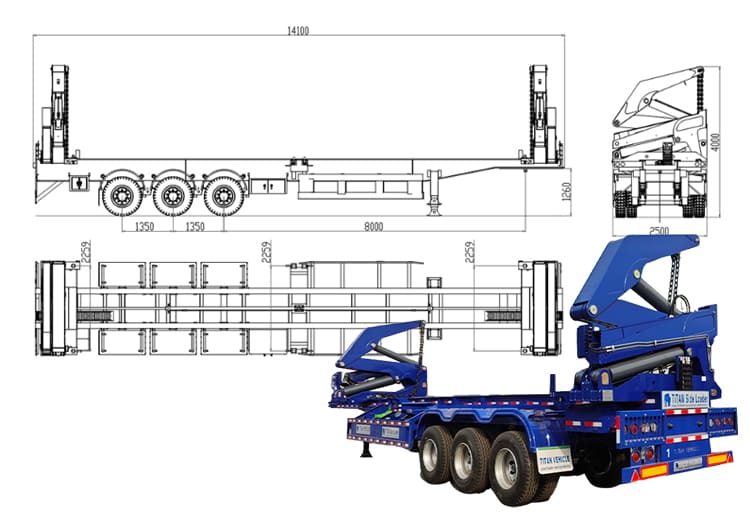

Dimension(L*W*H): 14100*2500*4200mm

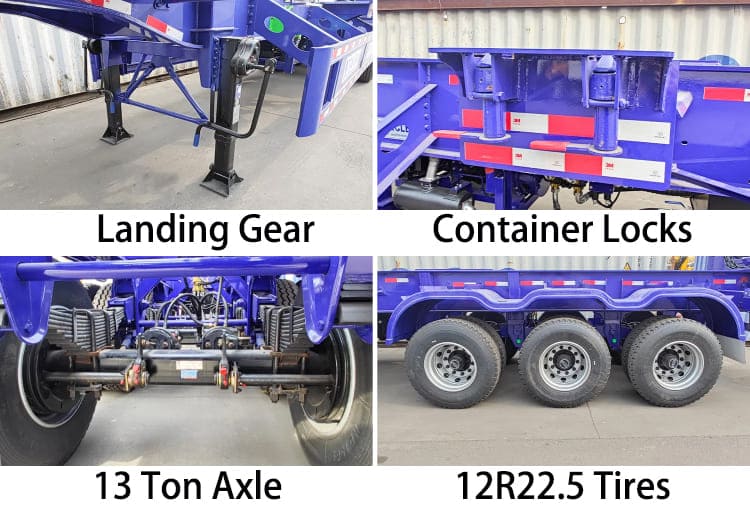

Axle: 3 axle, 13 ton, TITAN Brand
Tire: 12 pcs, 12R22.5
Suspension: Heavy-duty type mechanical spring suspension
Kingpin: 3.5-inch bolted type
Landing gear: JOST Brand
Power source: Power take-off (equipped)
Dangote Trailer 40 Feet Container Side Lifter for Sale
Overall Advantages
Efficient Loading and Unloading: The Dangote trailer container side lifter for sale is a transport device specially designed for container loading and unloading. Its biggest advantage is that it can perform container lifting operations from the side of the 40 feet container side lifter for sale, without relying on front or top lifting equipment like traditional systems.
Multi-functional Use: The Dangote trailer 40 feet container side lifter for sale is not only used for container transfer between port terminals and road transport but is also suitable for inland logistics centers, factory warehouses, and other scenarios for container handling and stacking. Container side lifter for sale can handle various container sizes, including 20 foot, 40 foot, and 45 foot containers, making it highly versatile.
Space Saving: The Dangote trailer 40 feet container side lifter for sale does not require large front or top spaces for loading and unloading, making it ideal for working in compact areas and maximizing space utilization.
Advantages of Each Part
Boom
Strong Lifting Capacity: The boom is one of the key components of the Dangote trailer 40 feet container side lifter for sale. It is usually made from high strength steel, providing excellent load bearing capacity and can easily lift containers weighing several tons.
Flexible Extension and Rotation: The boom is designed to be extendable and can adjust its length according to the position of the container and the loading or unloading requirements. This flexibility allows precise control of the lifting distance, making it easier to load and unload containers at different heights and horizontal positions.

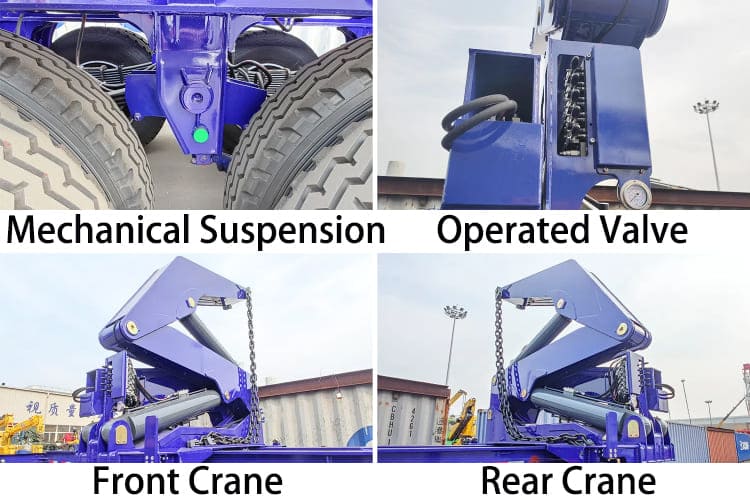

Manual Operated Valve
Ergonomic Design: The manual operated valve of the Dangote trailer 40 feet container side lifter for sale are well-arranged and follow ergonomic principles. They are located on the control console where the operator can easily reach them. The operator can operate all the buttons comfortably without having to stretch or bend too much.
Precise Control Function: These valve on the Dangote trailer container side lifter for sale can precisely control the movement of the lifting arm and other working parts. By pressing different button combinations, the operator can accurately control the speed of the arm's extension and retraction, the rotation angle, and the speed of lifting and lowering.
Control Box
Integrated Control System: The control box is the brain of the Dangote trailer 40 feet container side lifter for sale. It integrates various advanced electronic control components. Through complex circuits and programs, it can coordinate the work of different parts like the lifting arm, legs, and container locks.
Strong Safety Protection: The control box of the Dangote trailer 40 feet container side lifter for sale has many built in safety protection mechanisms. It can monitor the running status of the equipment in real time, such as the motor current, oil temperature, the angle of the lifting arm, and the load.
