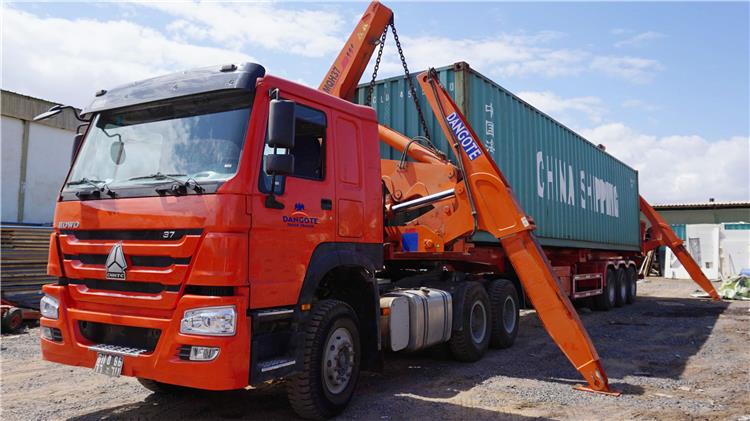

37T side lift truck trailer will pick up your loaded or empty container, then set it down exactly where you want it set down, all without tilting or dropping your container.
37T side lift truck trailer is equipped with a boom at the head and tail. it is a self-unloading device that operates synchronously. Loading and unloading, double-sided loading and unloading, single-sided loading and unloading.

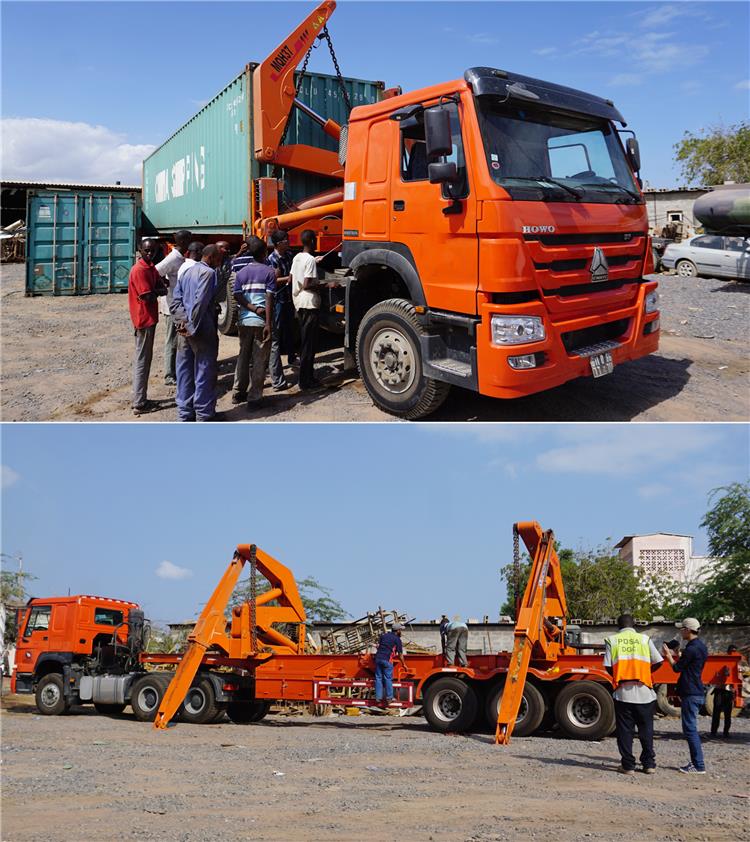

Price of 37t Side Lift Truck Trailer Container Transport for Sale In Guinea
Price of 37t Side Lift Truck Trailer Container Transport for Sale In Guinea
Price of 37t Side Lift Truck Trailer Container Transport for Sale In Guinea
Max. lifting capacity: 37Ton
Max.stabilizer outreach: 3200mm
Max.working range: 4000mm
Overall height: 2500mm
Overall length: 1020mm
Max.pressure of hydraulic system: 28Mpa
Dimension(L*W*H): 14100*2500*4200mm
Axle: 3 axle* 13 ton (220mm brake pads)
Tire: 12 pcs, 12R22.5
Suspension: Heavy-duty type mechanical spring suspension
Kingpin: 3.5-inch bolted type
Braking system: WABCO Emergency valve
Landing gear: JOST
Tow Chain: lgus (imported)
Power source: Power take-off (equipped)
Hydraulic pump: Gear type Casappa Italy
Direction control valves: AMCA Holand
Remote Control: NBB Germany
