60 Ton side wall trailer is mainly suitable for medium and long-distance transportation of medium and heavy and bulk cargoes. 60 ton side wall trailer has strong applicability and has become the first choice for medium and long-distance freight vehicles.
The structure of the 60 ton side wall trailer is reasonable, the performance is reliable, the operation is simple, and the appearance is beautiful. The frame of side wall flatbed semi trailer is a through-beam type structure, and the longitudinal beam adopts a straight type or a gooseneck type.

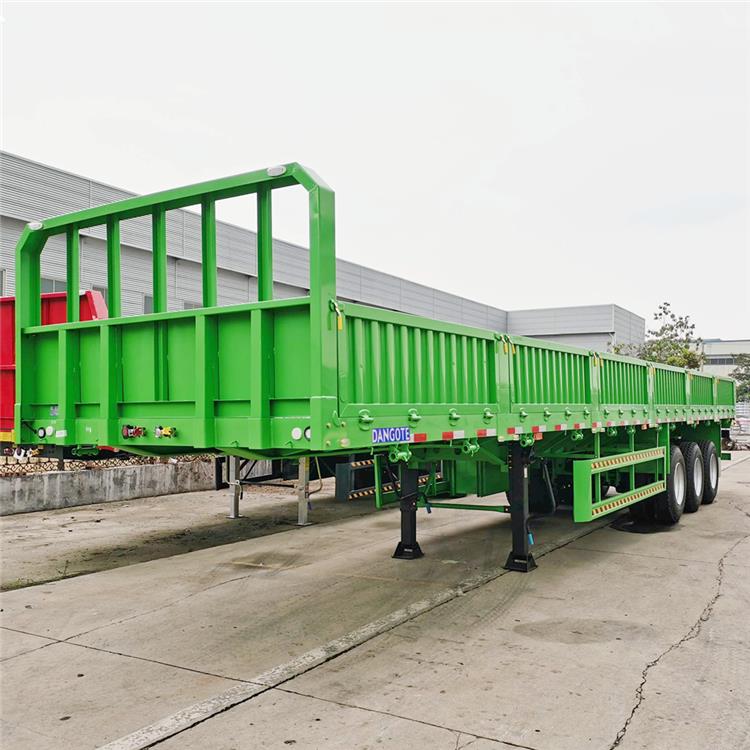

Dangote 60 Ton Side Wall Flatbed Semi Trailer for Sale in Sudan

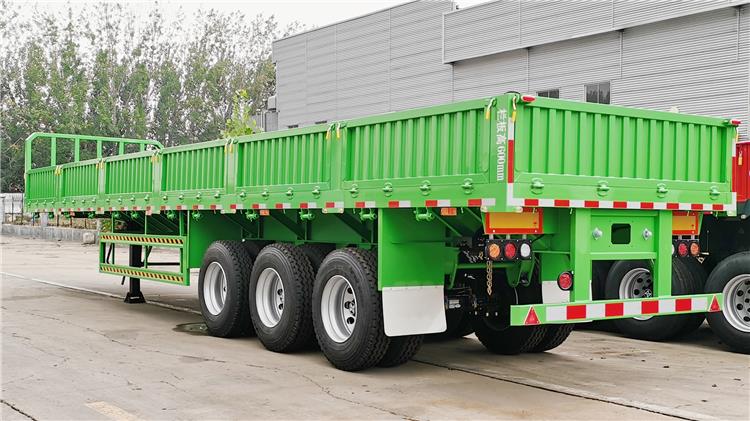

Dangote 60 Ton Side Wall Flatbed Semi Trailer for Sale in Sudan

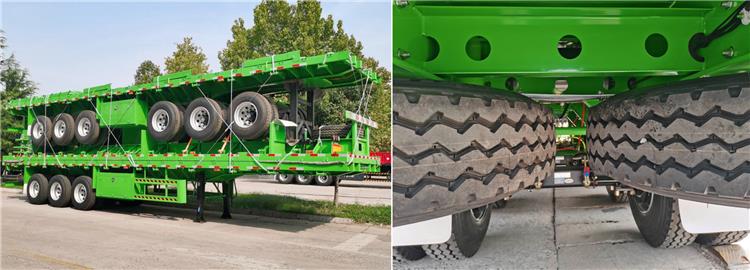

Dangote 60 Ton Side Wall Flatbed Semi Trailer for Sale in Sudan
Dimension(mm): 12500mm*2500mm*2350mm
Trailer Sides: 600mm sidewall
Loading capacity(ton): ≤60T
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Bottom Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Axles: 3 axles, 13T/16T,FUWA/ BPW
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension(China brand or BPW brand)
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
