Side wall trailer for sale has a reinforced suspension, 70mm center balance pin, and the suspension is reinforced in front, back, left and right to better cope with the harsh road conditions in Africa.
Side wall trailer for sale usually adopts front lift design, which is designed to disperse and reduce the weight of the cargo during transportation, while providing additional support and stability. Side wall trailer for sale can be adjusted according to specific needs to accommodate different types of cargo.

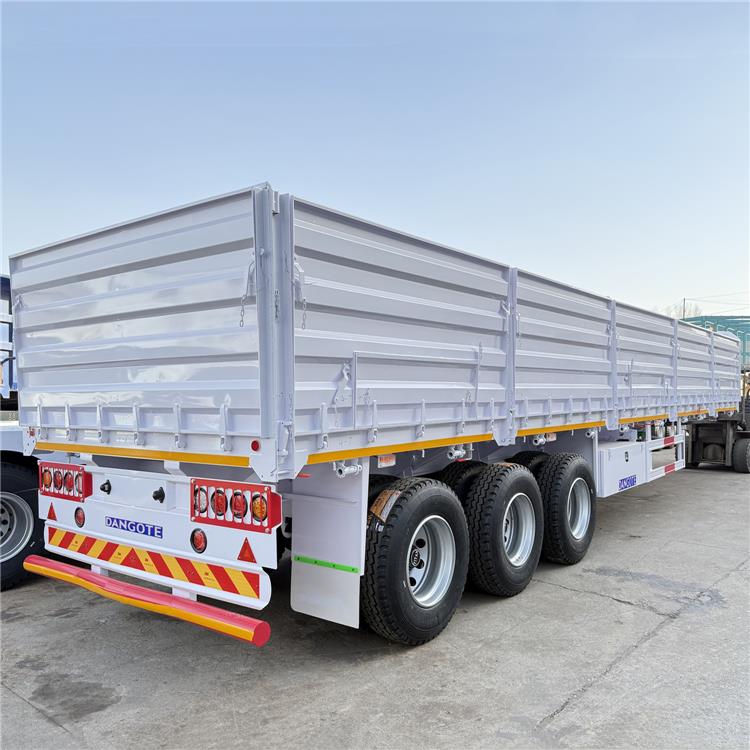

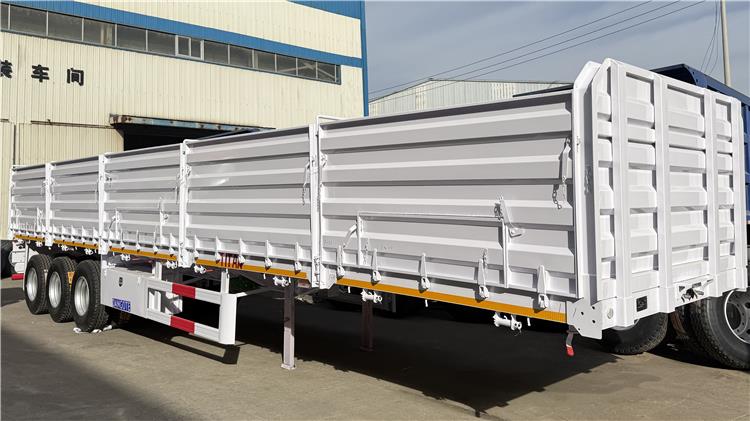

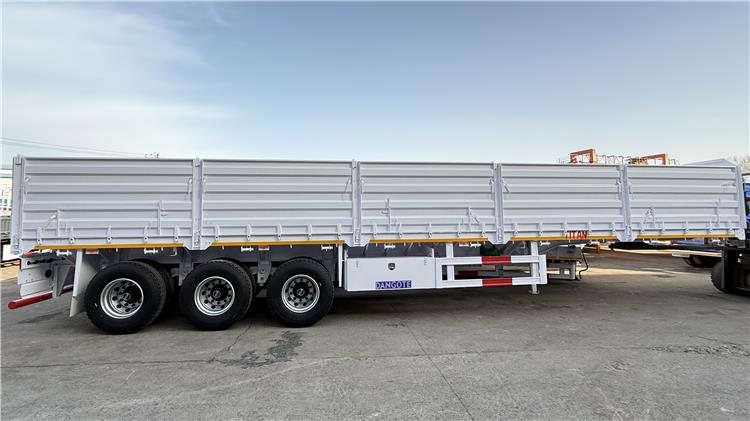

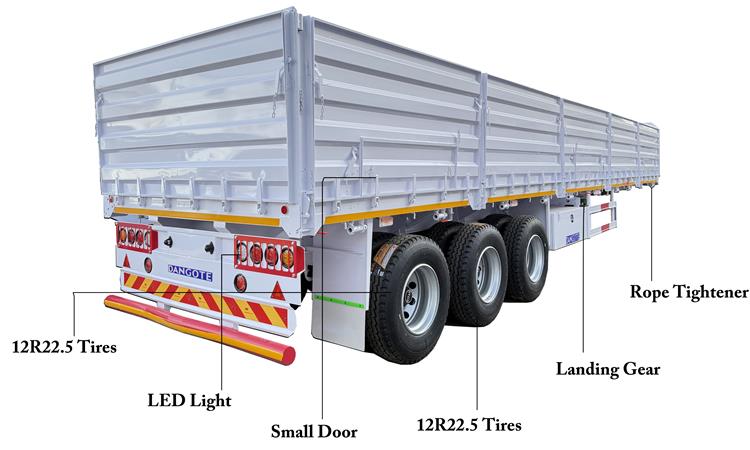

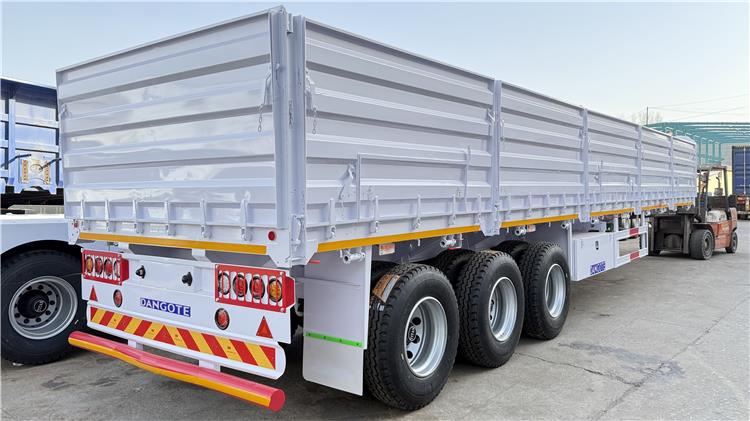

3 Axle Side Wall Trailer for Sale In Lagos, Nigeria
3 Axle Side Wall Trailer for Sale In Lagos, Nigeria
3 Axle Side Wall Trailer for Sale In Lagos, Nigeria
3 Axle Side Wall Trailer for Sale In Lagos, Nigeria
3 Axle Side Wall Trailer for Sale In Lagos, Nigeria
Model: tri axle side wall trailers for sale
Dimension(mm): 12500x2800x3260mm
Trailer Sides: 1200mm
Loading capacity(ton): ≤50T
Axles: 3 axles, 13T
Tire: 12 units, 12.00R22.5
Rim: 9.00-22.5

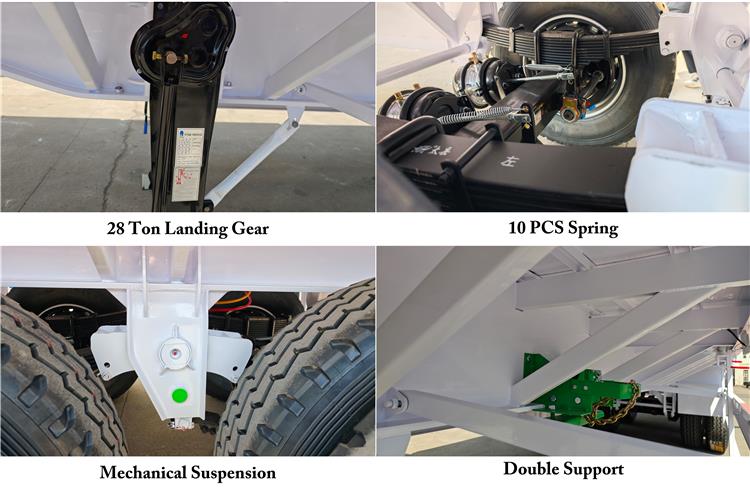

Suspension: Mechanical suspension
Side wall trailer for sale uses Q345 low carbon high strength steel, with a service life of more than 10 years. Side wall trailer for sale uses 160mm channel steel, while other manufacturers use thin channel steel. We do not cut the side beams to ensure the strength of the steel and it is not easy to deform. Other manufacturers usually cut this part, which is easy to deform.
Side wall trailer for sale has 6 longitudinal beams to protect the frame. Side wall trailer for sale uses powder spray paint, which will not fall off after more than 5 years of use. The cost is twice that of ordinary acid paint.
The axle of side wall trailer for sale uses a 16-ton axle with a 220mm wide brake pad, while other factories use a 13-ton axle with a 180mm wide brake pad.
The bottom plate of side wall trailer for sale uses a 3mm diamond plate, which is thicker than the 2.5mm or 2mm of other factories. More durable and stronger
The suspension of side wall trailer for sale, 70mm center balance pin, effectively cope with the harsh road conditions in Africa.
Side wall trailer for sale uses the excellent braking system of the Wibco brand. The brake air pipe uses a high-pressure rubber air pipe with a service life of more than 10 years. The wires are made of cables, and their service life exceeds 5 years.
The legs of the side wall trailer for sale are equipped with well-known brands such as Yost or Fuhua, and are reinforced on the front, back, left and right sides. Effectively cope with the harsh road conditions in Africa (other factories only reinforce them horizontally, which does not work)
The tires of the side wall trailer for sale have stable quality and have traveled 200,000 kilometers in China and have been used for 2 years without any problems.
The crossbeam of the side wall trailer for sale is made of enlarged and thickened No. 12 channel steel near the container lock.
