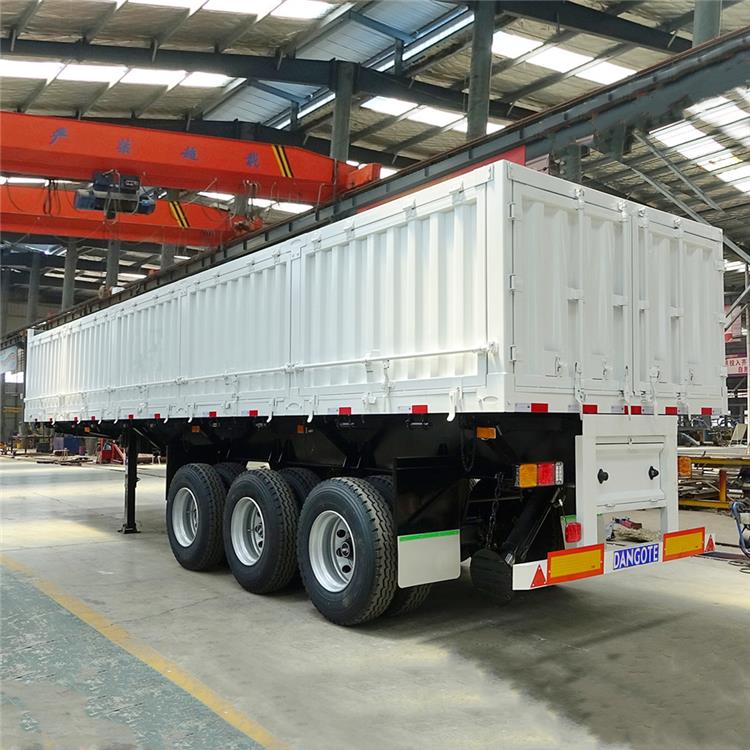

Tri axle 34 ton drop side tipper trailer is another type of dump truck, and it allows goods to be unloaded from the side. The main types of cargo transported by this semi-trailer are building materials, such as stone, sand, etc.
The user must pay attention to the tri axle 34 ton drop side tipper trailer when purchasing the side tipper trailer. Try to choose a famous brand for the hydraulic top, and the diagonal brace should pay attention to the manufacturer's welder and reinforcement.
Dangote Tri Axle 34 Ton Drop Side Tipper Dumper Trailer for Sale Price In Kenya
Dangote Tri Axle 34 Ton Drop Side Tipper Dumper Trailer for Sale Price In Kenya
Dimension: 11000mmx2500mmx3200mm
Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 16mm, Material: T700 steel.
Lifting System: Lifting cylinder 5x130 bore, a shift cylinder
Axle: 3 axle 13T/16T, FUWA / BPW
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Rim: 8.0-20 or 9.00-20
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
ABS: Optional
Valve: WABCO valve
Light: LED light (especially intended for overseas markets)
Voltage: 24V
Accessories: One standard tool box, one rocker handle, one Shaft wrench
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of topcoats.
