The frame and the 60 ton tractor tipper trailer’s longitudinal beam of the carriage are welded with high-quality manganese plates, and the cargo box has two types of dustpan and rectangular.
The hydraulic 60 ton tractor tipper trailer has high strength, strong lifting force, good rigidity and toughness, strong bearing capacity and no deformation.

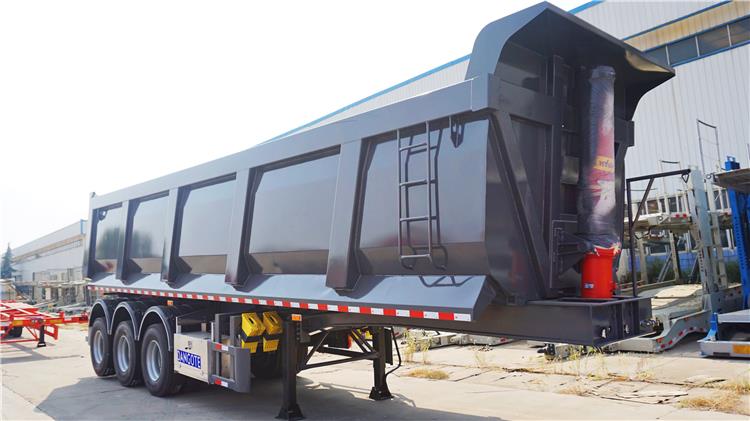

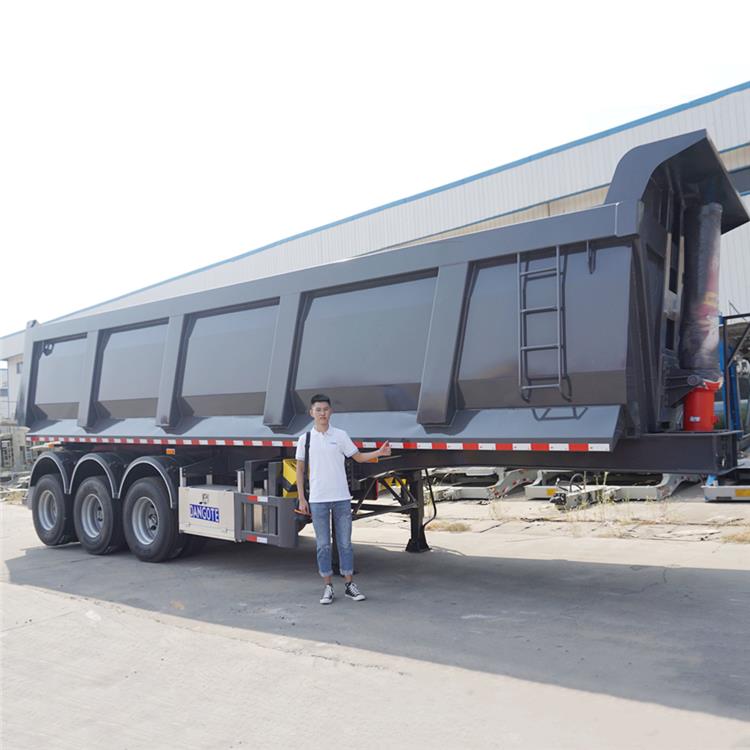

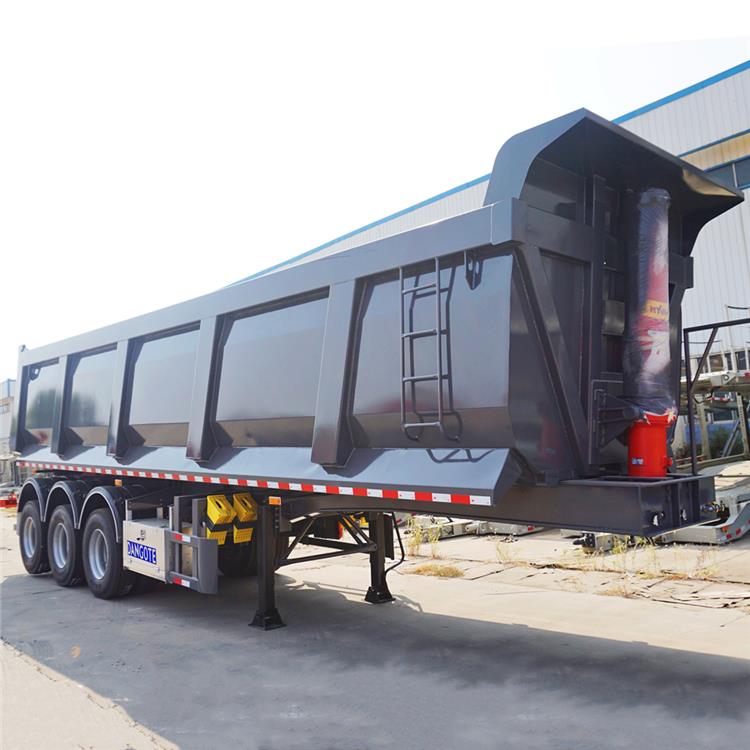

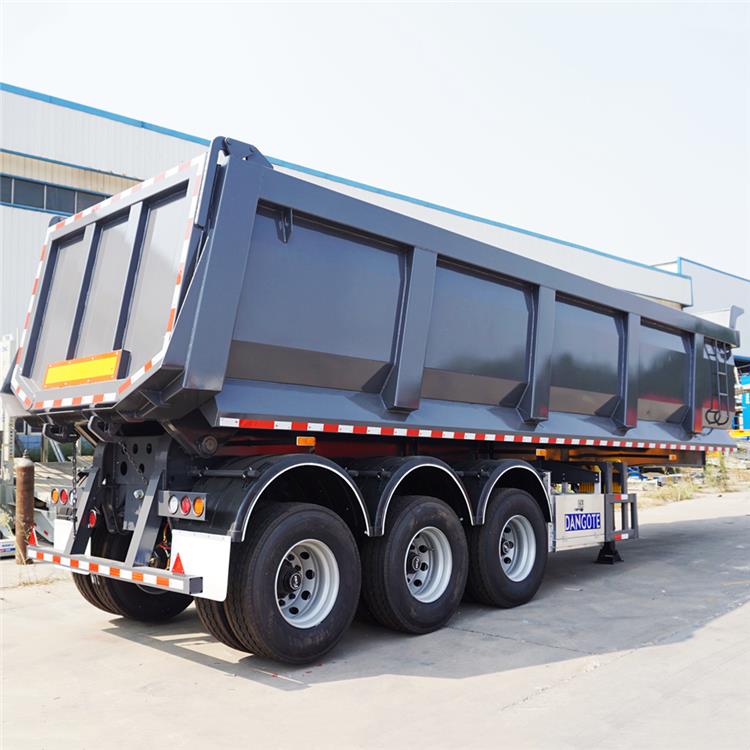

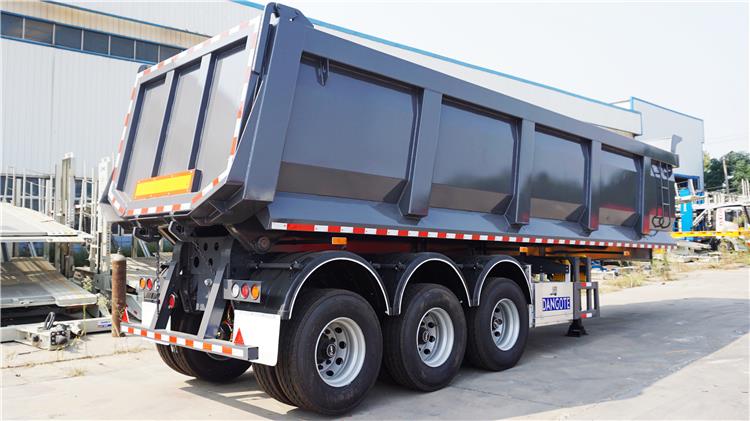

Tri Axle 60 Ton Tractor Tipper Trailer for Sale In Nigeria Lagos
Tri Axle 60 Ton Tractor Tipper Trailer for Sale In Nigeria Lagos
Tri Axle 60 Ton Tractor Tipper Trailer for Sale In Nigeria Lagos
Dimension: 8112mmx2500mm x3482mm
Main beam: Height: 480mm-500mm, Upper plate: 16mm-25mm, Middle plate: 12mm-20mm, Lower plate: 18mm-25mm, Material: T700 steel.
Bottom Platform: 4-6mm thick checkered plate
Total volume(ton): 60Ton
Side wall thickness: 4 - 6mm
End plate: 8mm
Lifting System: Full set of HYVA lifting cylinder
Axle: 3 Axle, 13T, FUWA
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Suspension: Mechanical suspension
Landing gear: JOST brand
Rim: 8.0-20 or 9.00-20
Tire: 12R22.5
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.
