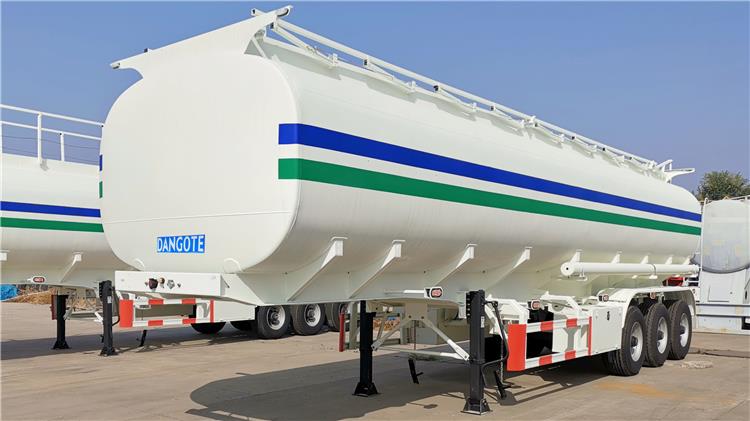

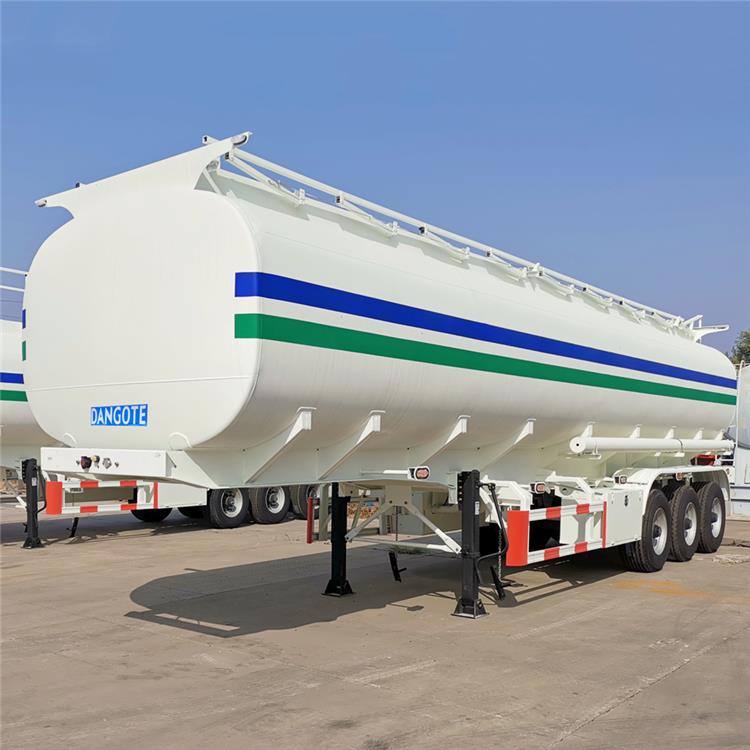

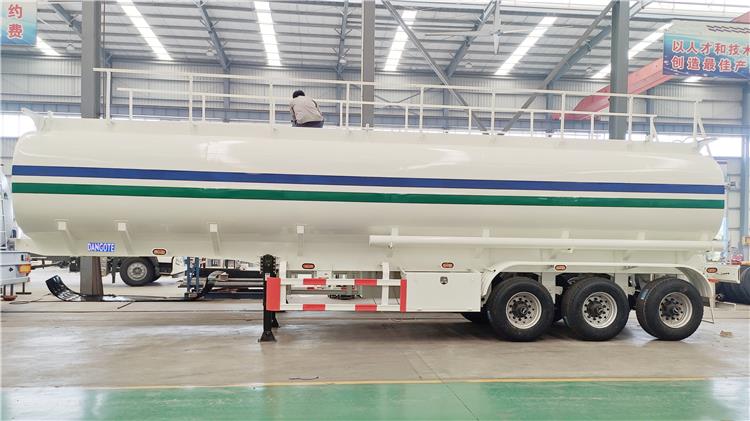

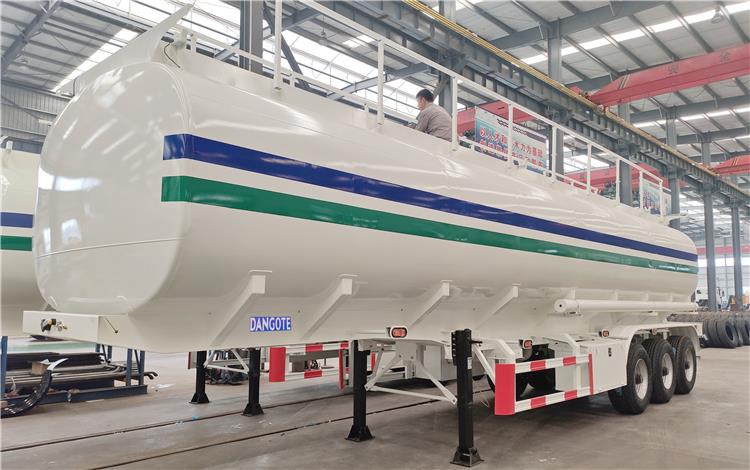

38000l petrol petroleum tanker lorry trailers are mainly composed of a chassis and a tank body. At present, the commonly used tank body materials are mainly carbon steel, aluminum alloy and stainless steel.
The production of the anti-wave board and the head is somewhat similar. According to the drawings, the plasma cutting machine and the edge machine are used to make the required shape.
Price of 38000L Petrol Petroleum Tanker Lorry Trailers Price for Sale In Kenya
Price of 38000L Petrol Petroleum Tanker Lorry Trailers Price for Sale In Kenya
Price of 38000L Petrol Petroleum Tanker Lorry Trailers Price for Sale In Kenya
Price of 38000L Petrol Petroleum Tanker Lorry Trailers Price for Sale In Kenya
Dimension: 11000mm * 2550mm *3800mm
Total volume(L): 38000 liters
Tank Body Material: Q235 carbon steel
End plate: Q235 carbon steel
Manhole Cover: Carton steel
Bottom Valve: Aluminum API Pneumatic Bottom Valve
Compressor: BOHAI 10m³/12m³ or other brands
Discharging Valve: Diameter is 3 or 4 inch
Compartments: 4 Compartment
Discharging Pipe: 4 inch rubber hose,2pcs,6m/each
Cat Walk: With (common model or special design)
Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material
Axle: 3 axles,13T,FUWA
Landing Gear: JOST(D200T) or China brand 28T
Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin
Suspension: Mechanical suspension
Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers
Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank
Rim: 9.00-22.5Chinese brand
Tire: 12.00R22.5
ABS: Optional
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Accessories: One standard tool box
Shipping Terms: By bulk cargo, RORO or 40HQ containers
