The semi tipper trailer suspension system adopts new type with high strength and strong impact resistance. The system lever angle design is reasonable so during the frequent bumps, the instantaneous friction slip distance between tire and ground is reduced.
The hydraulic system is the power source for unloading of semi tipper trailer which must be operated stably to ensure the normal discharge.

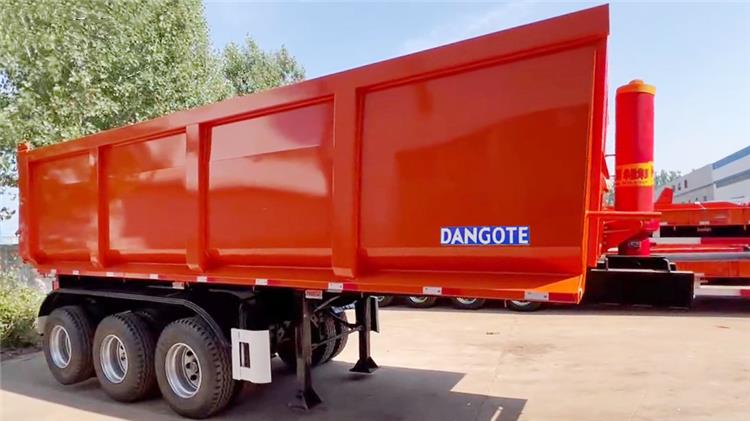

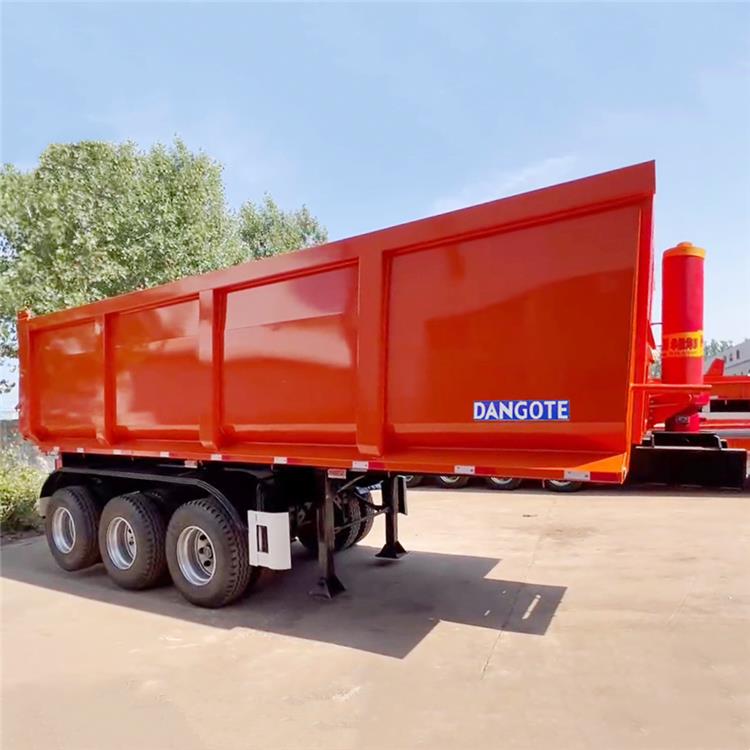

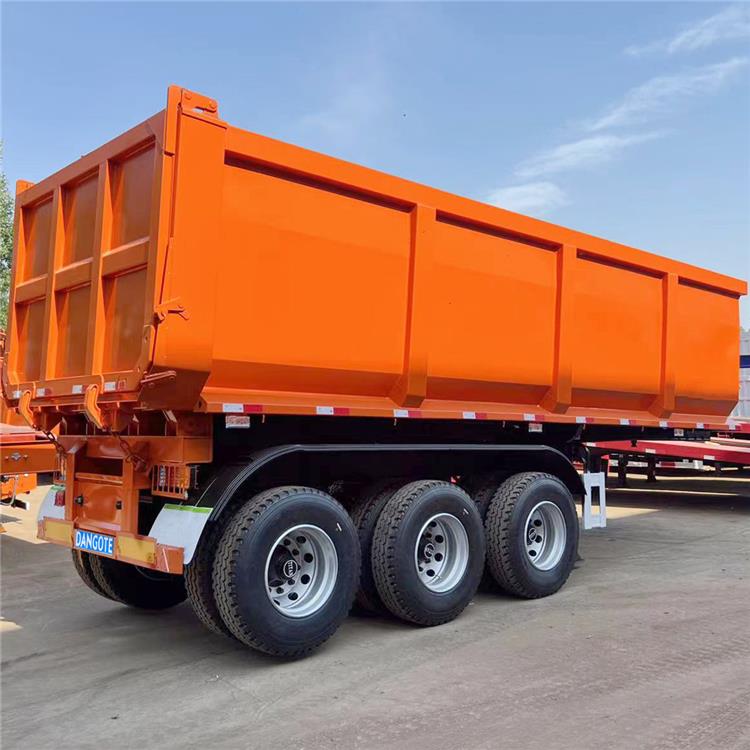

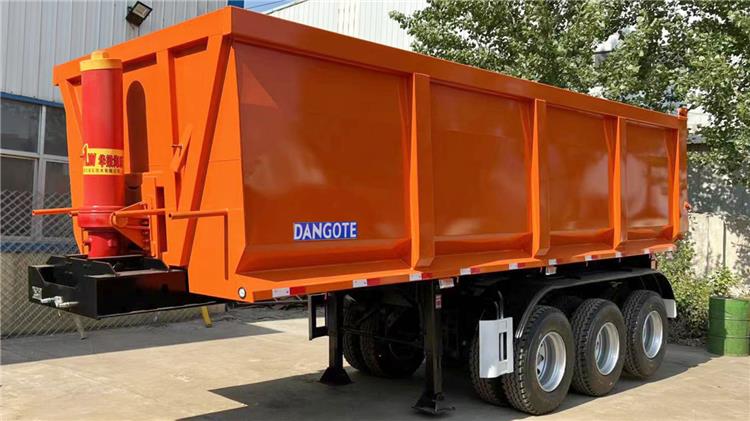

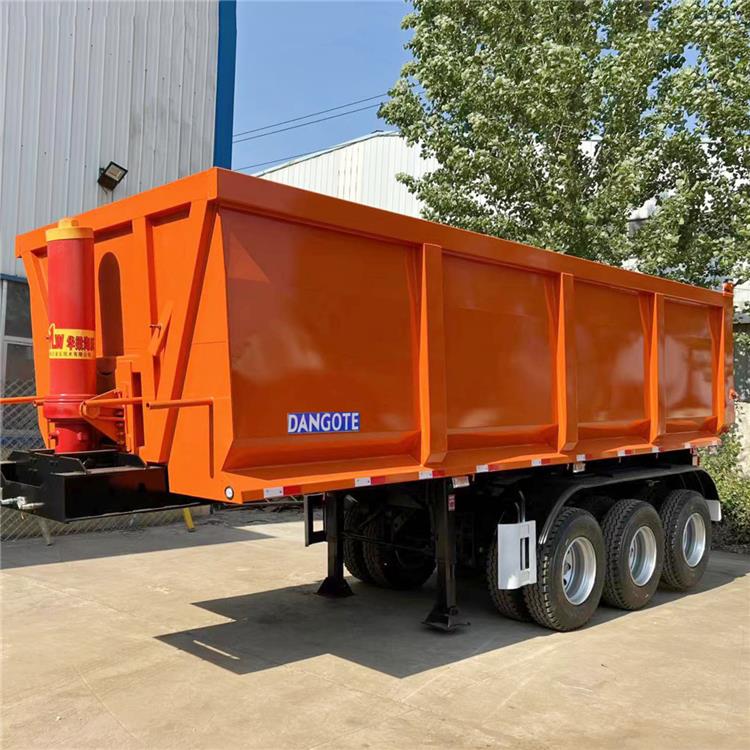

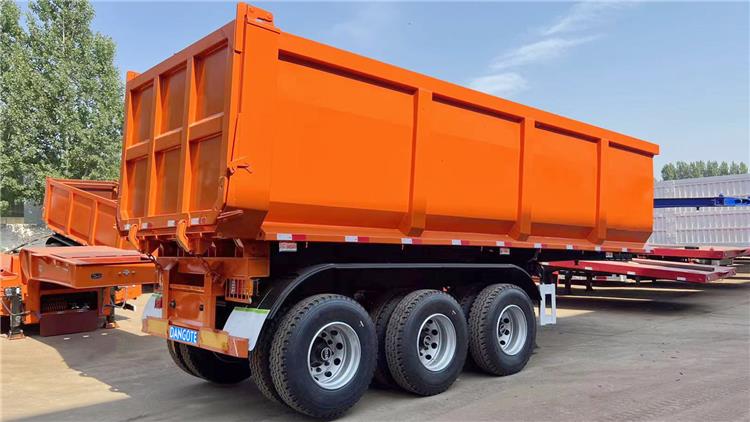

Dangote 30m3 Semi Tipper Tip Trailer for Sale In Tanzania
Dangote 30m3 Semi Tipper Tip Trailer for Sale In Tanzania
Dangote 30m3 Semi Tipper Tip Trailer for Sale In Tanzania
Dimension: 8112mmx2500mm x3482mm ( inside dimension )
Total volume: 30m3
Axle: 3 Axle, 13T, FUWA
Rim: 8.0-20 or 9.00-20
Tire: 12R22.5
Suspension: Mechanical suspension
Side wall thickness: 4 - 6mm
End plate: 8mm
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Lifting System: Full set of HYVA lifting cylinder
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Main beam: Height: 480mm-500mm, Upper plate: 16mm-25mm, Middle plate: 12mm-20mm, Lower plate: 18mm-25mm, Material: T700 steel.
Bottom Platform: 4-6mm thick checkered plate
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.
