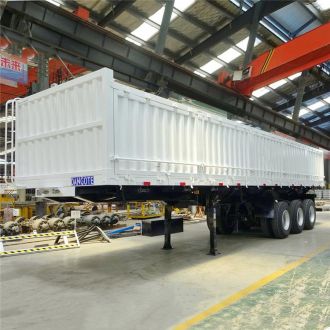

Heavy duty 6 axle 45cbm tipper semi trailer frame and the longitudinal beams of the carriage are made of high-quality manganese plate welded. The type of 6 axle 45cbm tipper semi trailer is generally U type and van type.
The main parts are all processed with advanced equipment, longitudinal beam is welded by automatic submerged arc welding, accurate assembly of axles and leaf springs using the equipment.

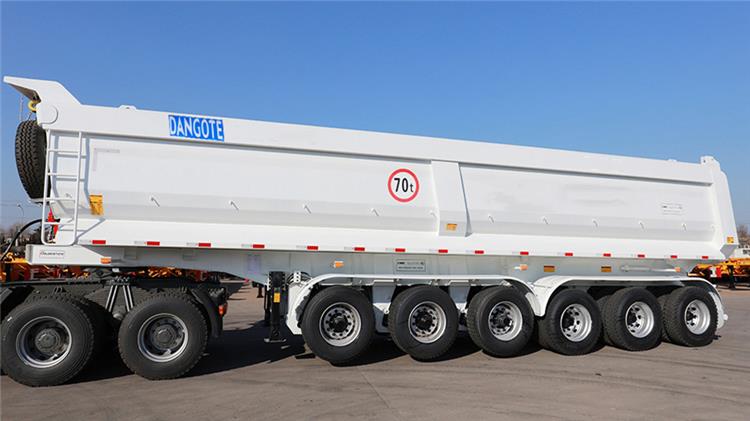

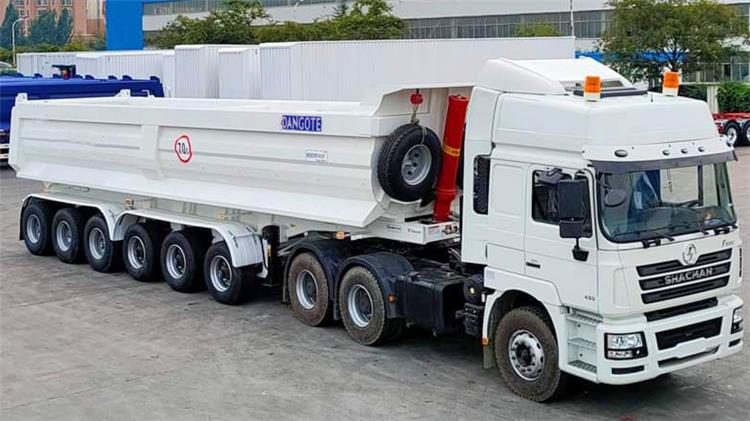

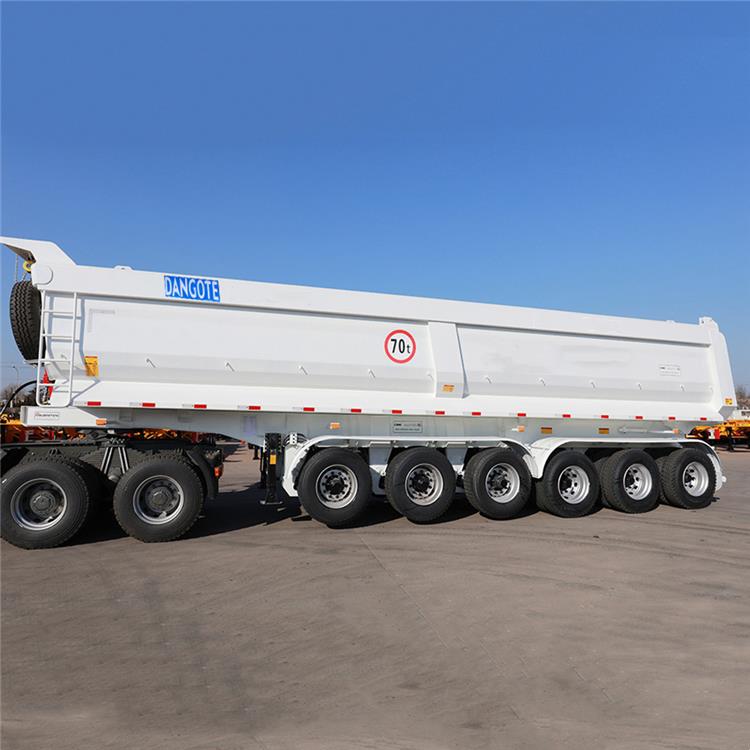

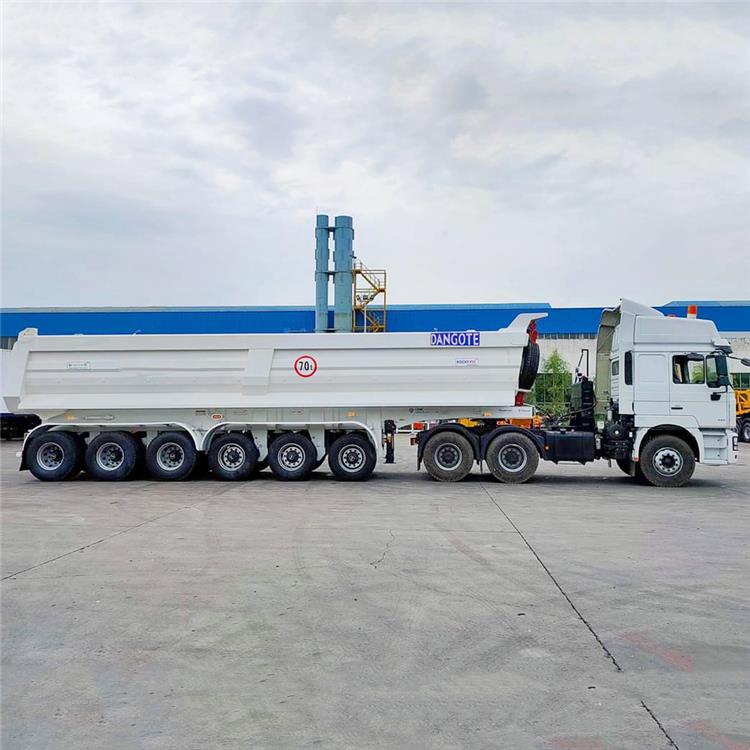

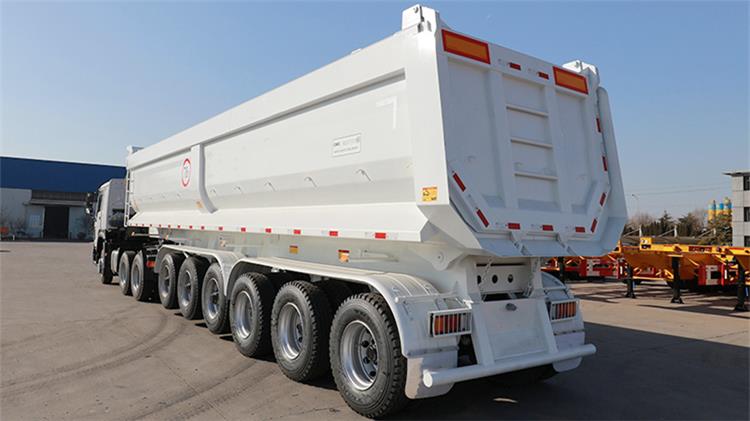

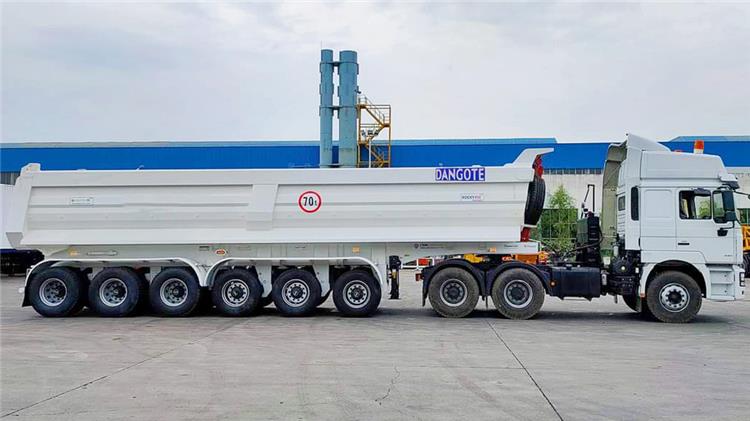

Dangote 6 Axle 45Cbm Tipper Semi Trailer Price | Price of New Tipper Trailers for Sale In Ghana
Dangote 6 Axle 45Cbm Tipper Semi Trailer Price | Price of New Tipper Trailers for Sale In Ghana
Dangote 6 Axle 45Cbm Tipper Semi Trailer Price | Price of New Tipper Trailers for Sale In Ghana
Dangote 6 Axle 45Cbm Tipper Semi Trailer Price | Price of New Tipper Trailers for Sale In Ghana
Dimension: 12055mm * 2600mm *3600mm
Main beam: Height: 480mm-500mm, Upper plate: 16mm-25mm, Middle plate: 12mm-20mm, Lower plate: 18mm-25mm, Material: T700 steel.
Bottom Platform: 4-6mm thick checkered plate
Side wall thickness: 4 - 6mm
End plate: 8mm
Total volume(cbm): 45cbm
Lifting System: Full set of HYVA lifting cylinder
Axle: 6 Axle, 16T, FUWA
Rim: 8.0-20 or 9.00-20
Tire: 12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.
