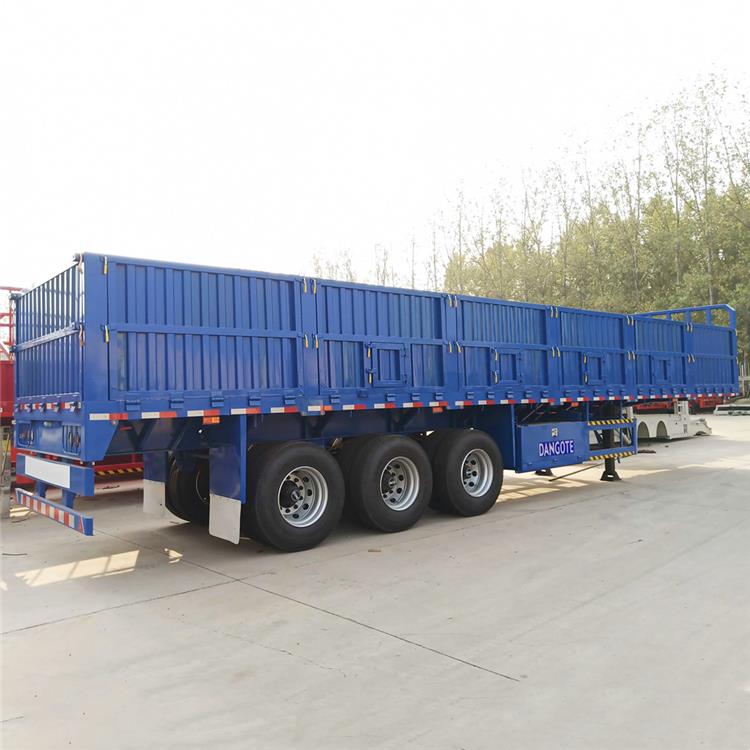

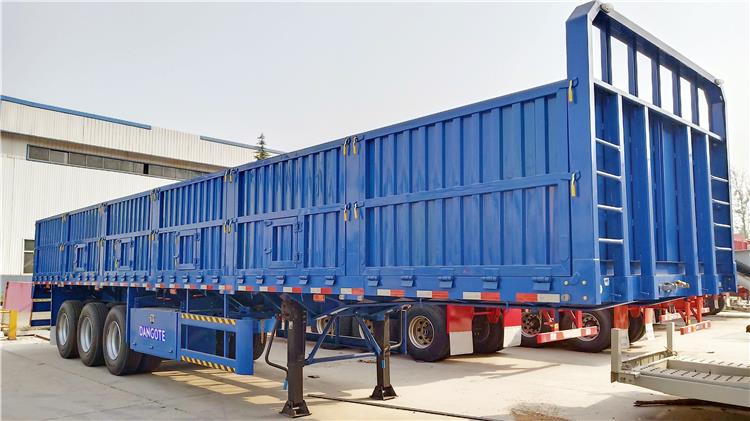

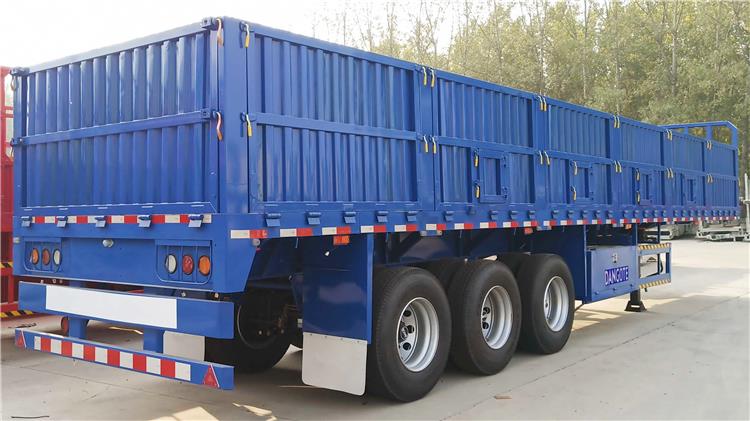

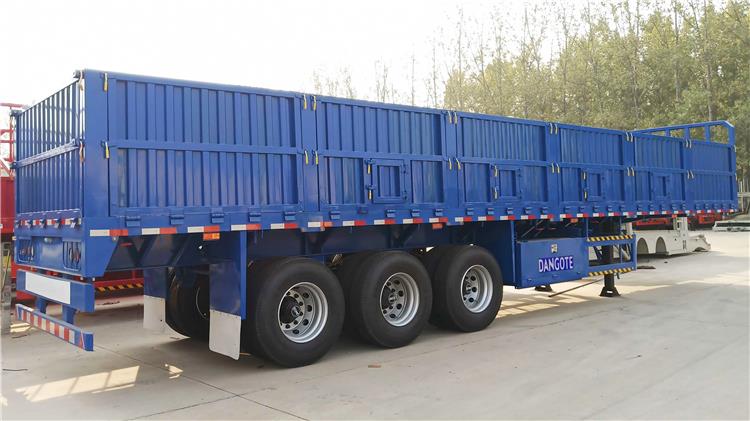

The triaxle with board sidewall semi trailer whole body of the vehicle is made of high-quality steel, advanced technology and strict production. The structure of the whole triaxle with board sidewall semi trailer is reasonable, the performance is reliable, the operation is simple, and the appearance is beautiful.
The suspension adopts non-vertical steel plate stamping rigid suspension, which is made of serial leaf springs and suspension bearings; the structure is reasonable, with strong rigidity and strength, used to support the load and reduce the impact.
Triaxle with Board Sidewall Semi Trailer for Sale In Nigeria
Triaxle with Board Sidewall Semi Trailer for Sale In Nigeria
Triaxle with Board Sidewall Semi Trailer for Sale In Nigeria
Tare Weight: About 7.6T
Dimension(mm): 12500x2500x3350mm
Loading capacity(ton): ≤60T
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Bottom Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Trailer Sides: 600-2000mm, or box type sides
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
Axles: 3 axles, 13T/16T ,FUWA/ BPW
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
