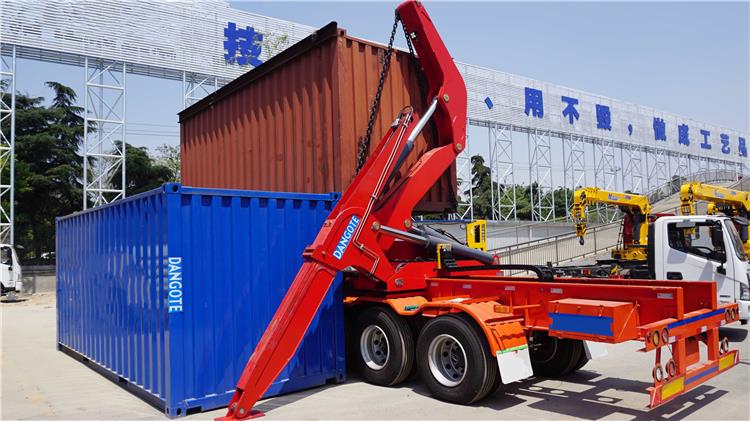

37 ton side loader trailer is designed to improve working efficiency. It consists of semi-trailer and 37 ton sideloader trailer.
The 37 ton side loader trailer is efficient, reliable, easy to operate, precise to control, and safe to operation. Its technical performance has reached the leading level in China. It can be widely used in ports, stations and freight yards.
37 Ton Side Loader Trailer for Sale Price, Specifications | Dangote Sideloader Trailer
37 Ton Side Loader Trailer for Sale Price, Specifications | Dangote Sideloader Trailer
37 Ton Side Loader Trailer for Sale Price, Specifications | Dangote Sideloader Trailer
37 Ton Side Loader Trailer for Sale Price, Specifications | Dangote Sideloader Trailer
Max. lifting capacity: 37Ton
Max.stabilizer outreach: 3200mm
Max.working range: 4000mm
Overall height: 2500mm
Overall length: 1020mm
Max.pressure of hydraulic system: 28Mpa
Dimension(L*W*H): 14100*2500*4200mm
Axle: 3 axle* 13 ton (220mm brake pads)
Tire: 12 pcs, 12R22.5
Suspension: Heavy-duty type mechanical spring suspension
Kingpin: 3.5-inch bolted type
Braking system: WABCO Emergency valve
Landing gear: JOST
Tow Chain: lgus (imported)
Power source: Power take-off (equipped)
Hydraulic pump: Gear type Casappa Italy
Direction control valves: AMCA Holand
Remote Control: NBB Germany
