The 40t side lifters container truck trailer main supporting assemblies are well-known brands in China. The beam of 40t side lifter truck trailer frame is designed with a high cross-section and variable cross-section.
Wireless remote control/Manual operating. Engine throttle size and engine speed can be controlled, improving working efficiency. Safety control with stop button. Convenient operation, facilitate manufacture and maintenance.

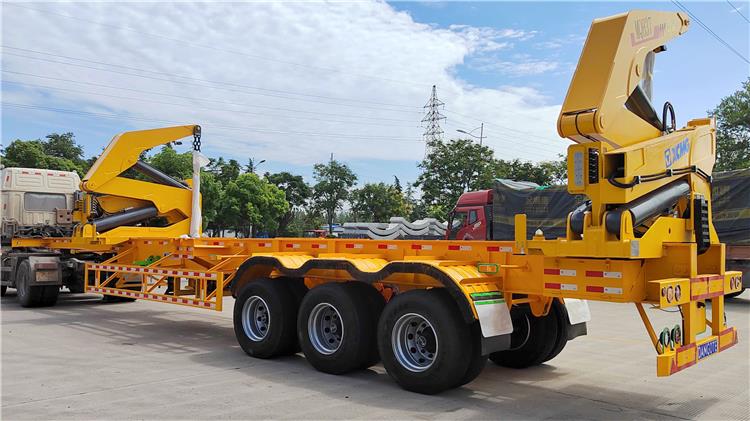

Dangote 40T Side Lifters Container Truck Trailer for Sale in Papua New Guinea

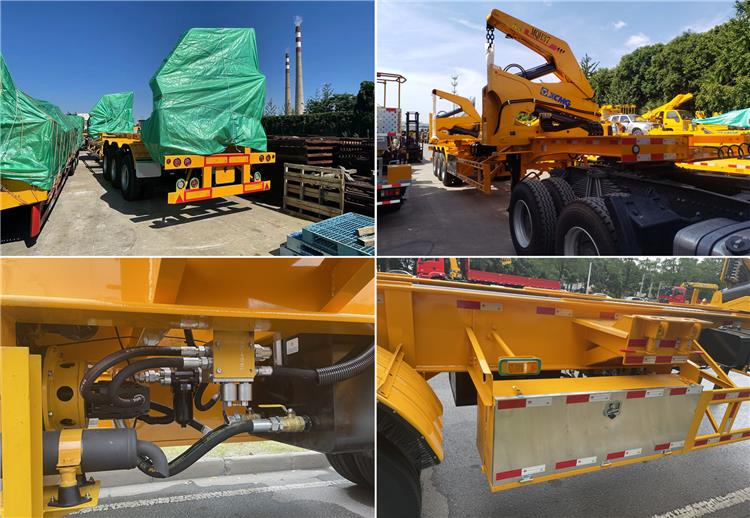

Dangote 40T Side Lifters Container Truck Trailer for Sale in Papua New Guinea

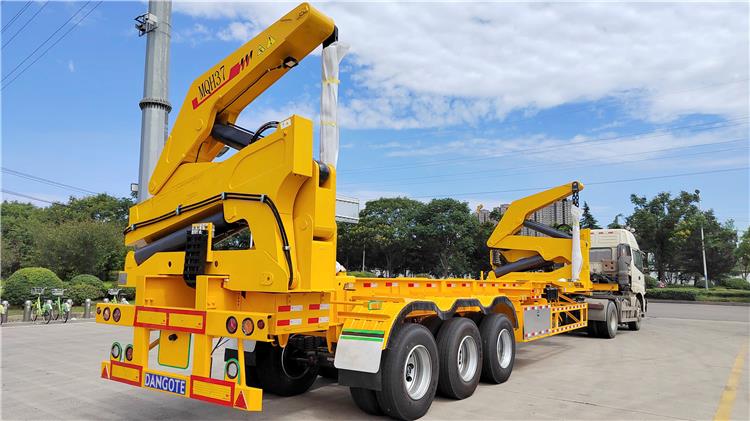

Dangote 40T Side Lifters Container Truck Trailer for Sale in Papua New Guinea
Max. lifting capacity: 40Ton
Max.stabilizer outreach: 3200mm
Max.working range: 4000mm
Overall height: 2500mm
Overall length: 1020mm
Max.pressure of hydraulic system: 28Mpa
Dimension(L*W*H): 14100*2500*4200mm
Tow Chain: lgus (imported)
Power source: Power take-off (equipped)
Hydraulic pump: Gear type Casappa Italy
Direction control valves: AMCA Holand
Remote Control: NBB Germany
Axle: 3 axle* 13 ton (220mm brake pads)
Tire: 12 pcs, 12R22.5
Suspension: Heavy-duty type mechanical spring suspension
Kingpin: 3.5-inch bolted type
Braking system: WABCO Emergency valve
Landing gear: JOST
