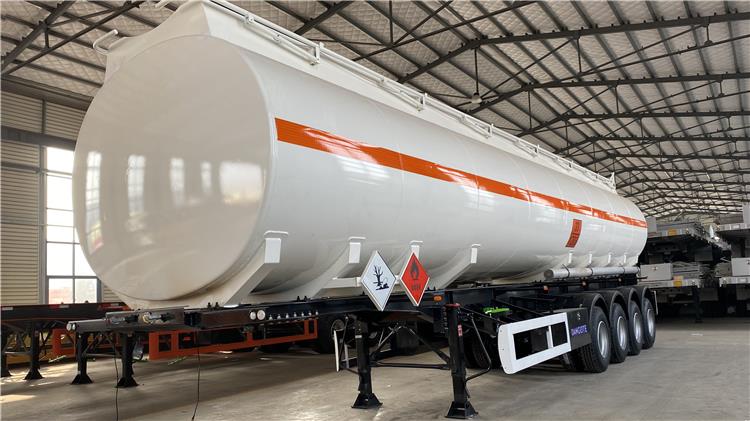

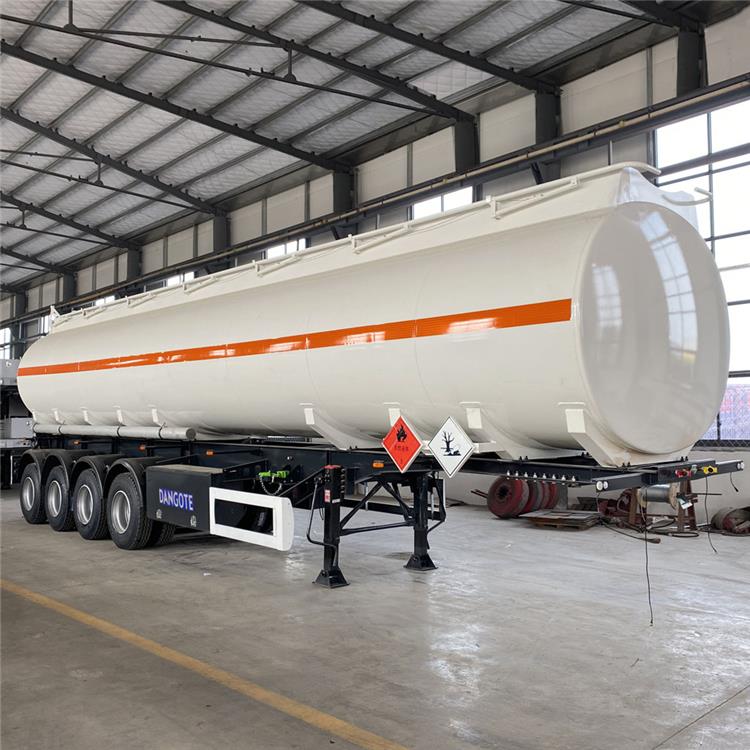

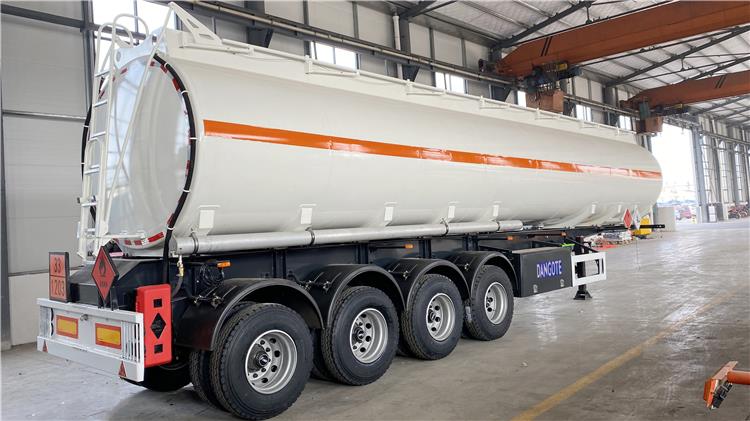

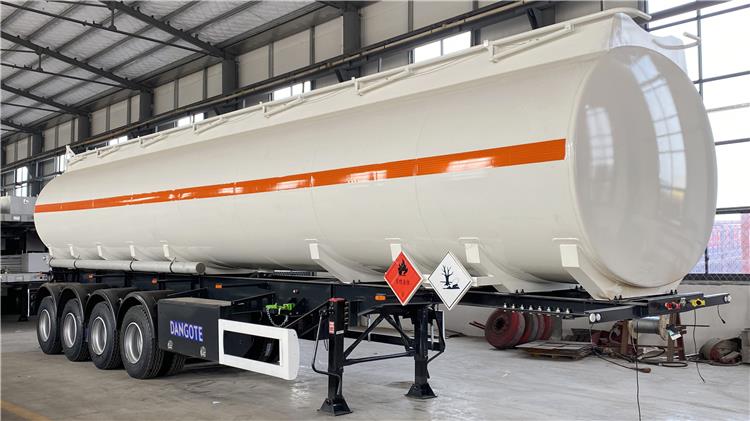

The 4 axle 50000 litres crude oil tanker trailer tank is made of 4mm or 6mm high-quality carbon steel produced by the iron and steel company according to national standards. The shape of the 4 axle 50000 litres crude oil tanker trailer tank is divided into an elliptical or square round which can hold many kinds of oil products. Can also produce heating and insulation series of tanks.
4 Axle 50000 Litres Crude Oil Tanker Trailer Price for Sale In Zimbabwe | Dangote Trailer
4 Axle 50000 Litres Crude Oil Tanker Trailer Price for Sale In Zimbabwe | Dangote Trailer
4 Axle 50000 Litres Crude Oil Tanker Trailer Price for Sale In Zimbabwe | Dangote Trailer
4 Axle 50000 Litres Crude Oil Tanker Trailer Price for Sale In Zimbabwe | Dangote Trailer
Dimension: 11500mm * 2500mm *3700mm
Total volume(L): 50000 L
Tank Body Material: Q235 carbon steel
End plate: Q235 carbon steel
Manhole Cover: Carton steel
Bottom Valve: Aluminum API Pneumatic Bottom Valve
Compressor: BOHAI 10m³/12m³ or other brands
Discharging Valve: Diameter is 3 or 4 inch
Discharging Pipe: 4 inch rubber hose,2pcs,6m/each
Cat Walk: With (common model or special design)
Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material
Axle: 4 axles,13T,FUWA
Landing Gear: JOST(D200T) or China brand 28T
Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin
Suspension: Mechanical suspension
Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers
Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank
Rim: 9.00-22.5Chinese brand
Tire: 12.00R22.5
ABS: Optional
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Accessories: One standard tool box
Shipping Terms: By bulk cargo, RORO or 40HQ containers
