The 40 foot sidelifters container trailer technology can effectively solve the problem of no loading and unloading machinery. The crane operation uses a wireless remote control system, equipped with an imported remote control, which is easy to operate and reliable.

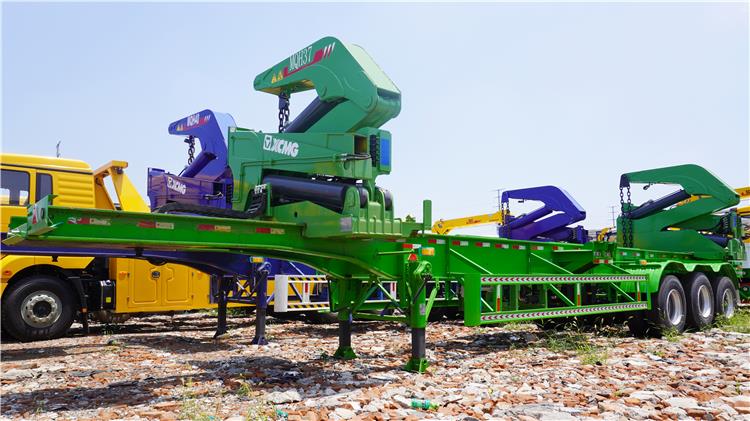

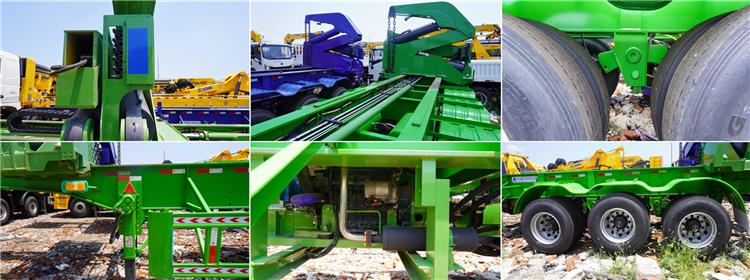

The side loading crane of the container has two cranes in front and rear and is installed on the chassis of the 40 foot sidelifters container trailer.
40 foot Sidelifters Container Trailer for Sale In Cayman Islands
40 foot Sidelifters Container Trailer for Sale In Cayman Islands
40 foot Sidelifters Container Trailer for Sale In Cayman Islands
Max. lifting capacity: 37Ton
Max.stabilizer outreach: 3200mm
Max.working range: 4000mm
Overall height: 2500mm
Overall length: 1020mm
Max.pressure of hydraulic system: 28Mpa
Dimension(L*W*H): 14100*2500*4200mm
Axle: 3 axle* 13 ton (220mm brake pads)
Tire: 12 pcs, 12R22.5
Suspension: Heavy-duty type mechanical spring suspension
Kingpin: 3.5-inch bolted type
Braking system: WABCO Emergency valve
Landing gear: JOST
Tow Chain: lgus (imported)
Power source: Power take-off (equipped)
Hydraulic pump: Gear type Casappa Italy
Direction control valves: AMCA Holand
Remote Control: NBB Germany
