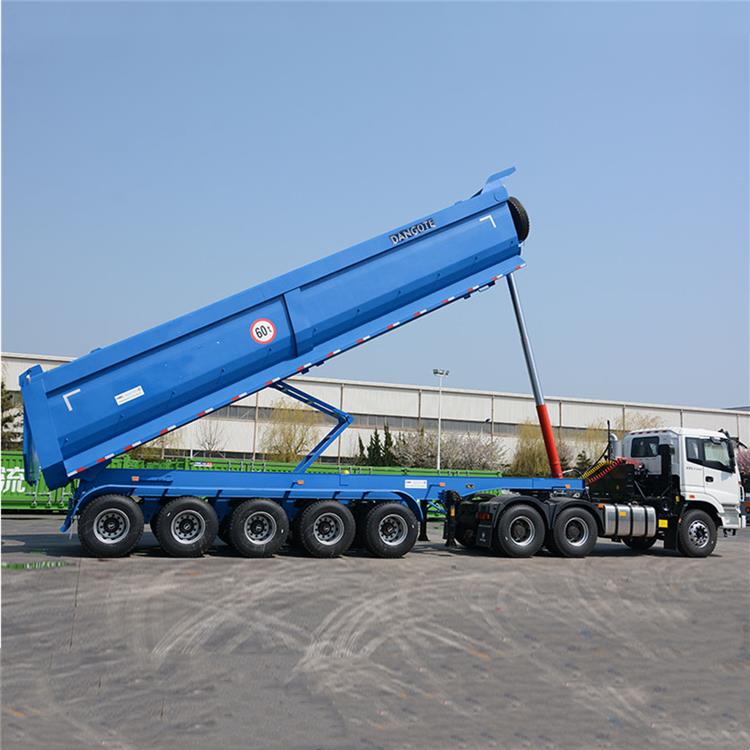

The 5 axle 40m3 dump trailer is designed for transporting grain, minerals, building materials, gravel and other goods. It is more convenient to unload, cutting labor costs and improving unloading efficiency.
Dangote factory has a strict quality inspection department, we will test the tipping system before delivering the 5 axle 40m3 dump trailer, so that we can ensure long-term cooperation with our customers with the best quality of the trailer.

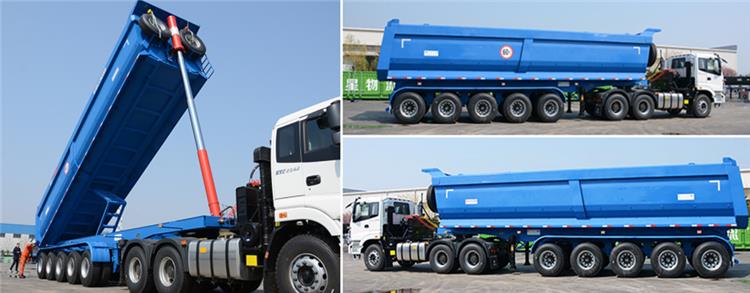

5 Axle 40m3 Dump Trailer Price | Dangote New Tipper Dumper Price for Sale
5 Axle 40m3 Dump Trailer Price | Dangote New Tipper Dumper Price for Sale
5 Axle 40m3 Dump Trailer Price | Dangote New Tipper Dumper Price for Sale
Dimension: 10845mmx2500mm x3800mm ( inside dimension )
Total volume: 40m3
Side wall thickness: 4 - 6mm
End plate: 8mm
Lifting System: Full set of HYVA lifting cylinder
Axle: 5 Axle, 13T, FUWA
Rim: 8.0-20 or 9.00-20
Tire: 12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 480mm-500mm, Upper plate: 16mm-25mm, Middle plate: 12mm-20mm, Lower plate: 18mm-25mm, Material: T700 steel.
Bottom Platform: 4-6mm thick checkered plate
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.
